- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- MZEU series has a dual metric ball bearing supported design with metric bores. It is suitable for overrunnng and middle speed backstopping.
- This one way sprag clutch has tapped holes to mount accessories
MZEU30-CLUTCH

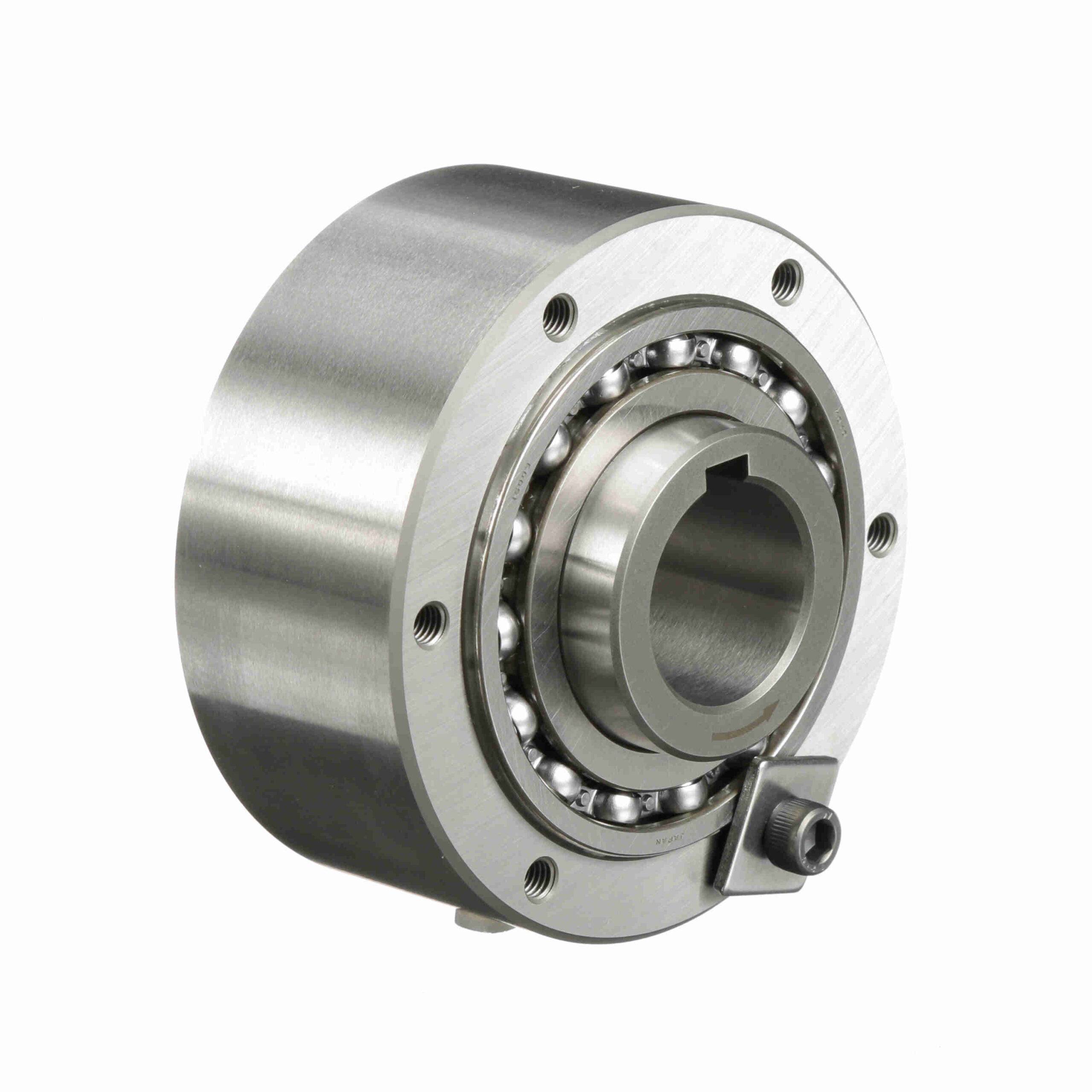

Morse MZEU Series CAM Clutch – MZEU30-CLUTCH
$6,554.83
Out of stock
Out of stock
| Drag Torque (lb-ft): | 0.287649 | Model: | MZEU 30 |
|---|---|---|---|
| Bore Size Tolerances (mm): | +0.021/-0.000 mm | Keyway: | 8 X 3.3 |
| Type: | CAM Clutches | Drag Torque (N-m): | 0.39 |
| Rated Torque Capacity (N-m): | 735 | Bore Size Tolerances (in): | +0.0008/-0.0000 in |
| Rated Torque Capacity (ft.-lbs.): | 542.1074 | Add'l Bearing Support Requirement: | No |
| Backstopping Clutch: | Yes | Bore Size (mm): | 30 mm |
| Overrunning Clutch: | Yes | Indexing Clutch: | No |
| Maximum Overrunning Speed - Outer Race (rpm): | 500 | Bore Size (in): | 1.181099 in |
| Product Type: | MZEU Series | Maximum Overrunning Speed - Inner Race (rpm): | 1, 500 |
| UPC: | 662288930105 | Weight: | 5.55 LB |
| Packaged Length: | 4.30 Inches | Packaged Width: | 3.90 Inches |
| Packaged Height: | 4.00 Inches | HTC: | 8483.60.4040 |
| Country of Origin: | Japan |
