- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
MST-20

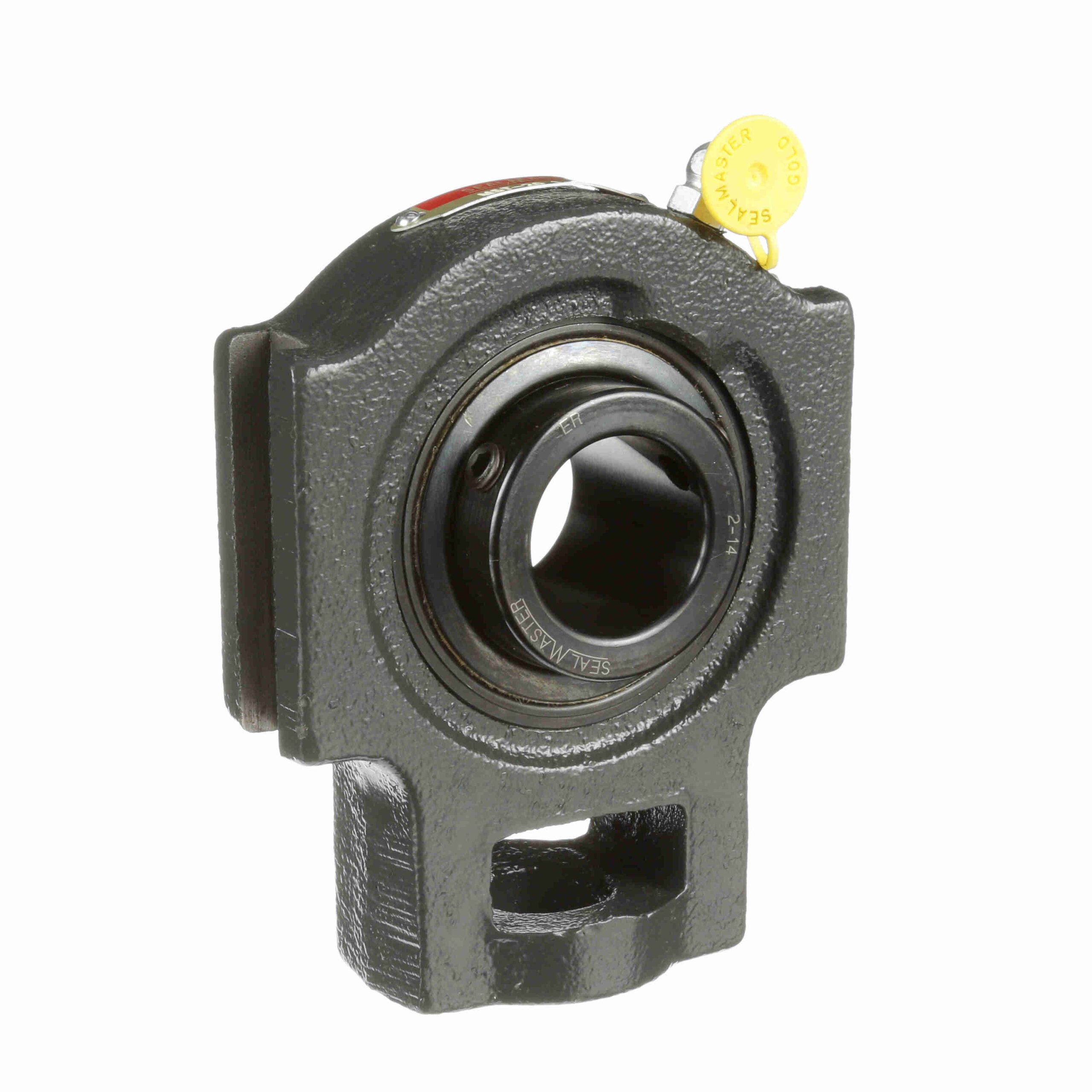

Sealmaster Mounted Cast Iron Wide Slot Take Up Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – MST-20
$228.51
Out of stock
Out of stock
| Seal Type: | Felt Labyrinth Seal | Insert No.: | 2-14 |
|---|---|---|---|
| Retainer Type: | Land Riding Retainer | Speed (Max): | 4650 |
| Housing Type: | Take-Up Block, Wide Slot | Housing Material: | Cast Iron |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Rolling Element: | Ball Bearing |
| Maximum Operating Temperature: | 220 °F | Expansion: | No |
| Measure Units: | Inch | Duty Series: | Medium Duty |
| Housing Construction: | One Piece | Lubrication: | Lithium Complex NLGI 2 Grease |
| Frame Type: | Center Pull Wide Slot | Internal Clearance: | Standard |
| Bore Shape: | Straight | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Relubricatable: | Yes | Misalignment: | ±2.0° Misalignment - Static Only |
| Radial Dynamic Load Capacity (lb): | 5, 782 | Locking Type: | Setscrew |
| Housing Color: | Gray | End Cap: | No |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Black Oxide Coated |
| Misalignment Type: | Static Only | Platform: | Gold Line Ball Bearing |
| Replaceable Insert: | Yes | Series: | MST |
| Unit Type: | Side Mount | Component Description: | Take Up Bearing Only |
| UPC: | 662461001295 | Weight: | 4.00 LB |
| Packaged Length: | 4.38 Inches | Packaged Width: | 2.06 Inches |
| Packaged Height: | 6.81 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
