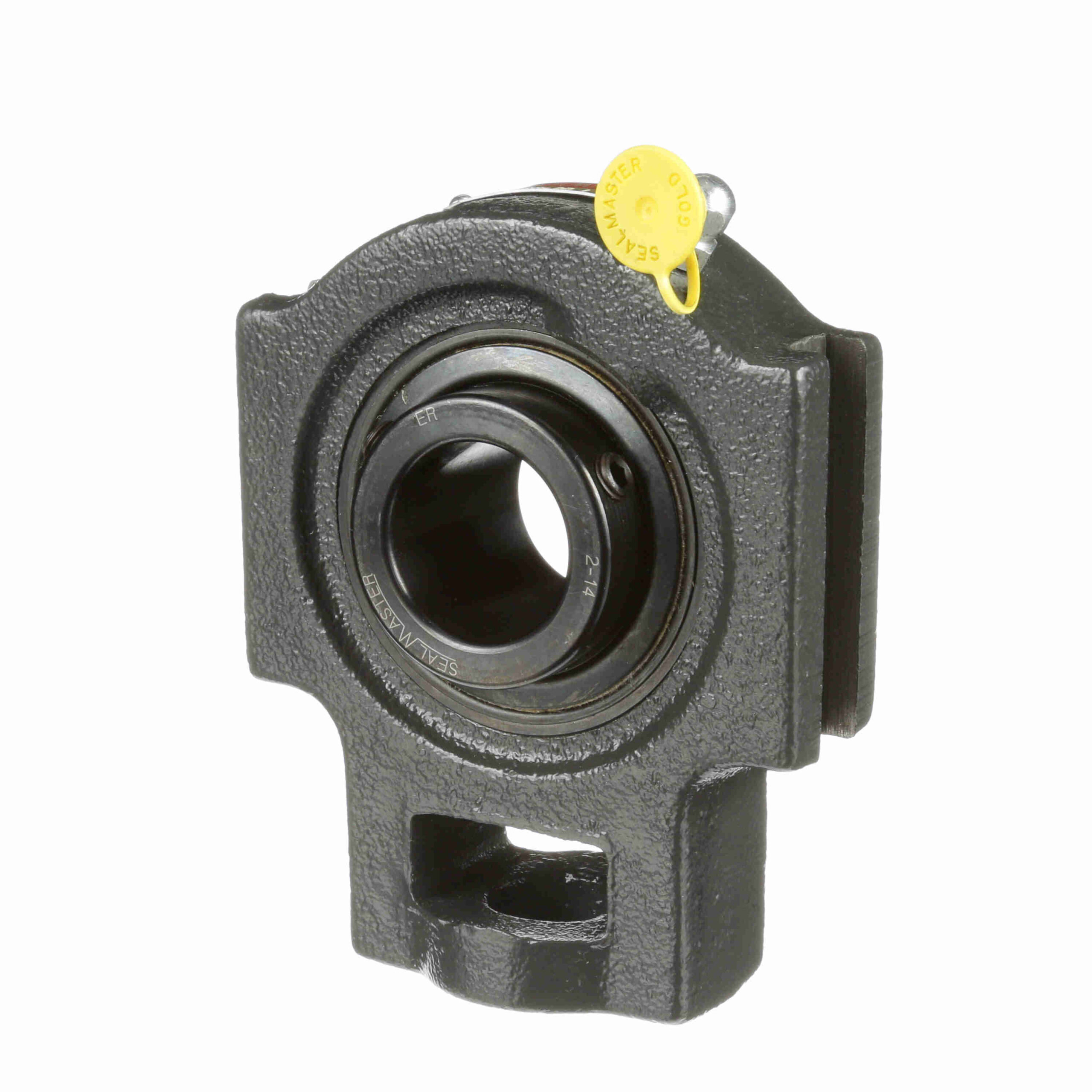

MST-19C

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
Single lip contact seal
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Duty Series:	Medium Duty	Rolling Element:	Ball Bearing
Insert No.:	3-13C	Seal Type:	Single Lip Contact Seal
Speed (Max):	4650	Housing Type:	Take-Up Block, Wide Slot
Housing Material:	Cast Iron	Maximum Operating Temperature:	220 °F
Expansion:	No	Measure Units:	Inch
Retainer Type:	Land Riding Retainer	Insert Material:	52100 Bearing Steel, Black Oxided
Radial Dynamic Load Capacity (lb):	5, 782	Locking Type:	Setscrew
Misalignment:	±2.0° Misalignment - Static Only	Frame Type:	Center Pull Wide Slot
Housing Construction:	One Piece	Internal Clearance:	Standard
Bore Shape:	Straight	Relubricatable:	Yes
Inner-Race Heat-Treat Method:	Zone-Hardened	Lubrication:	Lithium Complex NLGI 2 Grease
Replaceable Insert:	Yes	Platform:	Gold Line Ball Bearing
End Cap:	No	Bearing Insert Coating:	Black Oxide Coated
Outer Ring Land Profile:	Standard	Housing Color:	Gray
Misalignment Type:	Static Only	Series:	MST
Unit Type:	Side Mount	Component Description:	Take Up Bearing Only
UPC:	662461020395	Weight:	4.05 LB
Packaged Length:	4.38 Inches	Packaged Width:	2.06 Inches
Packaged Height:	6.81 Inches	HTC:	8483.20.4040
Country of Origin:	United States of America
