- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
MSF-48C

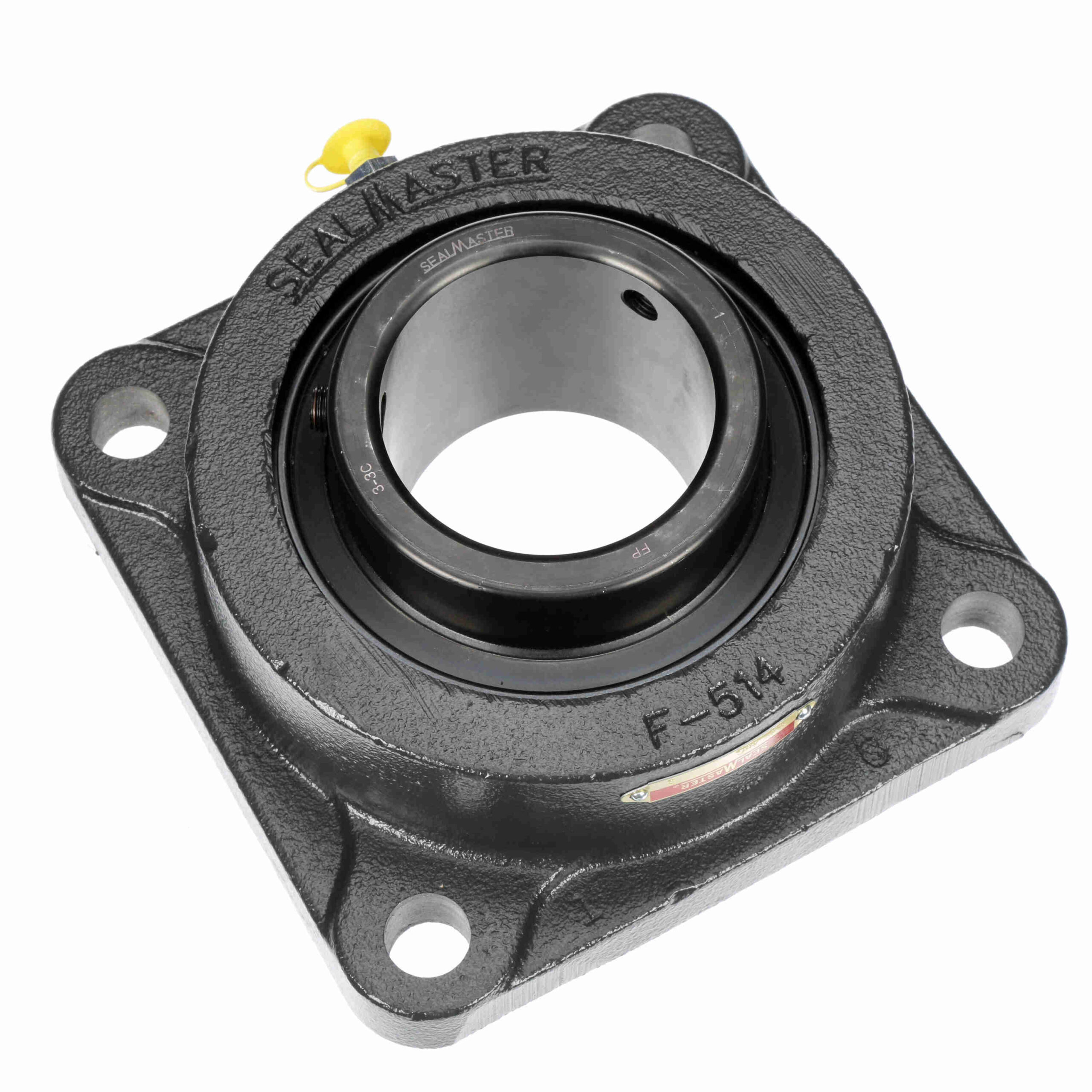

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – MSF-48C
$815.57
Out of stock
Out of stock
| Insert No.: | 3-3C | Inner-Race Heat-Treat Method: | Zone-Hardened |
|---|---|---|---|
| Housing Material: | Cast Iron | Bore Shape: | Straight |
| Rolling Element: | Ball Bearing | Housing Base: | Solid |
| Seal Type: | Single Lip Contact Seal | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Housing Type: | Flange; Four Bolt | Expansion: | No |
| Maximum Operating Temperature: | 220 °F | Duty Series: | Medium Duty |
| Retainer Type: | Land Riding Retainer | Measure Units: | Inch |
| Relubricatable: | Yes | Pilot Configuration: | No Pilot |
| Misalignment: | ±2.0° Misalignment - Static Only | Locking Type: | Setscrew |
| Speed (Max): | 1950 | Housing Construction: | One Piece |
| Internal Clearance: | Standard | Lubrication: | Lithium Complex NLGI 2 Grease |
| End Cap: | No | Platform: | Gold Line Ball Bearing |
| Misalignment Type: | Static Only | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Replaceable Insert: | Yes | T Core: | 5.56 |
| UPC: | 662461027424 | Weight: | 20.61 LB |
| Packaged Length: | 8.13 Inches | Packaged Width: | 7.94 Inches |
| Packaged Height: | 3.5 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
