- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
- MR is for high- speed outer race overruning. Incorporating a unique cam construction that uses centrifugal force to minimize cam drag
MR750 3.25FB

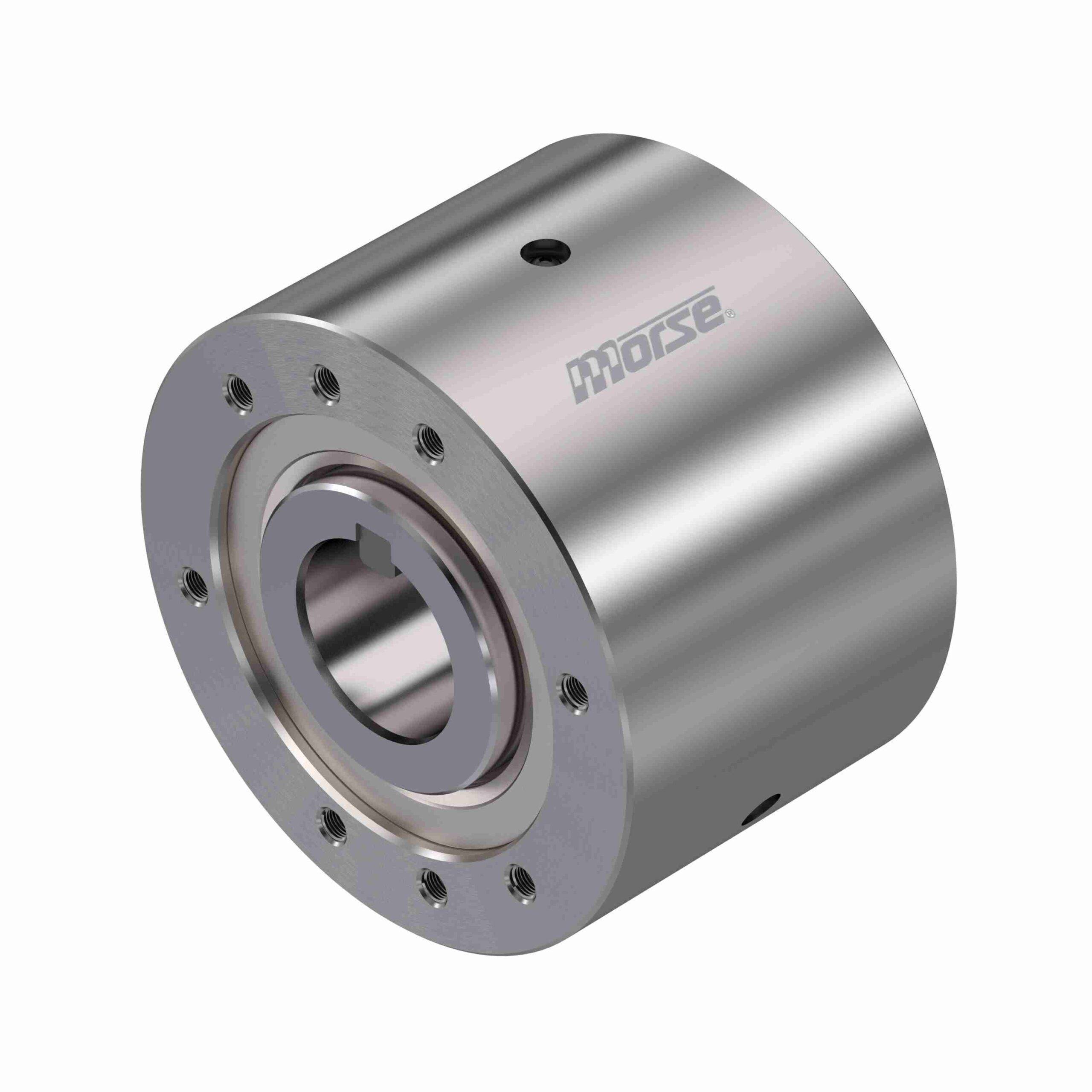

Morse M Series CAM Clutch – MR750 3.25FB
$17,846.75
Out of stock
Out of stock
| Outer Width (in): | 5.875 in | RPM Max. - Inner Race: | 525 |
|---|---|---|---|
| Rated Torque Capacity (ft.-lbs.): | 7, 000 | Product Type: | M Series |
| Type: | CAM Clutches | Overall Diameter (in): | 8.75 in |
| Inner Race Width (in): | 6 in | Model: | MR |
| Mode of Operation: | High Speed outer race overrunning | RPM Max. - Outer Race: | 2600 |
| Add'l Bearing Support Requirement: | No | Bore (Min) (in): | 2.4375 in |
| Lubrication Type: | Oil | Bore Size (in): | 3.25 in |
| Indexing Clutch: | Yes | Overrunning Clutch: | Yes |
| Backstopping Clutch: | Yes | Bore (Max) (in): | 3.4375 in |
| Nominal Overrunning Drag (ft-lb): | 2.5 | UPC: | 662288495741 |
| Weight: | 84.00 LB | Packaged Length: | 9.25 Inches |
| Packaged Width: | 9.25 Inches | Packaged Height: | 9.63 Inches |
| HTC: | 8483.60.4040 | Country of Origin: | Mexico |
