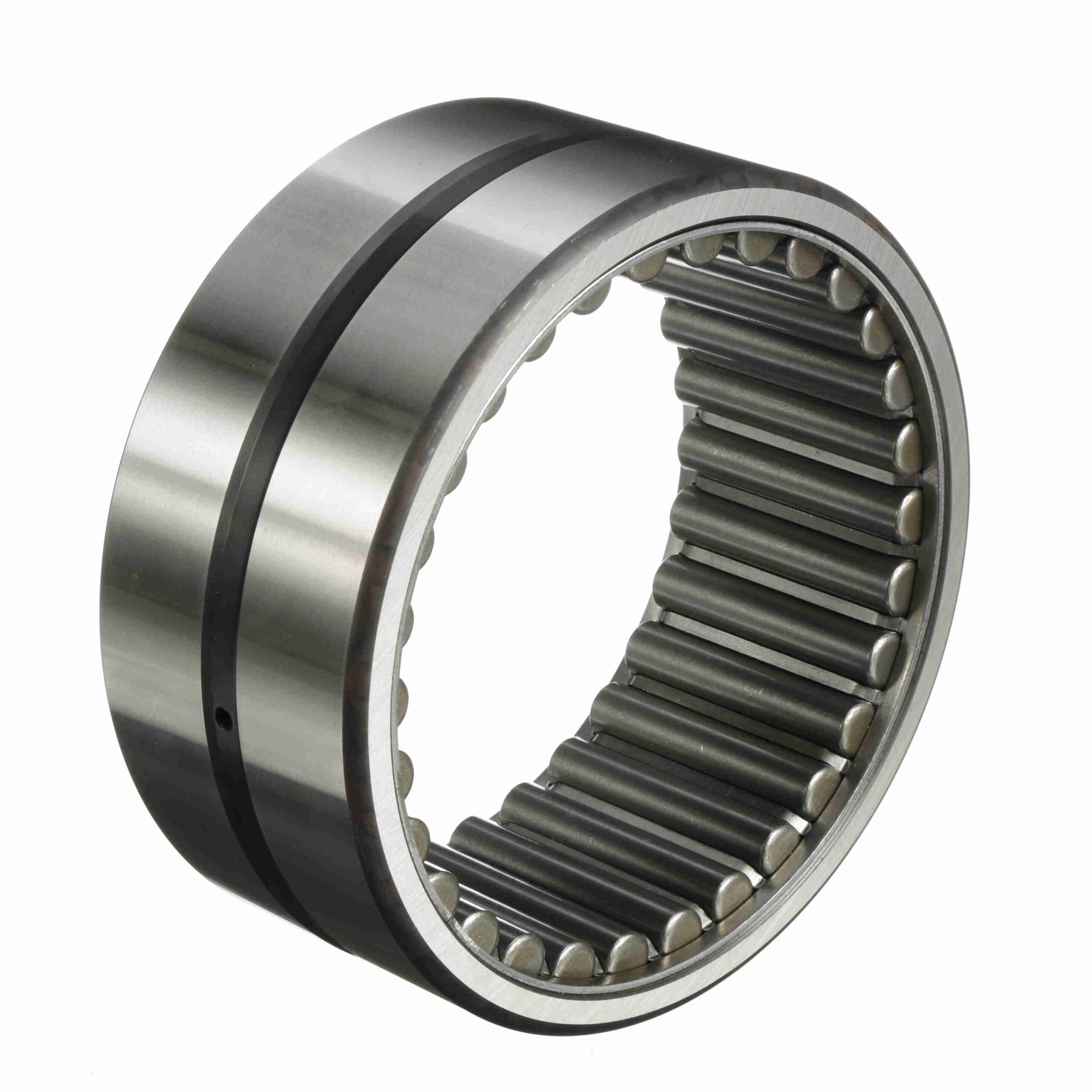

- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
MR 88
McGill Cagerol® Radial Needle Roller Bearing (no inner) – MR 88
$638.53
Out of stock
Out of stock
| Material: | 52100 Bearing Steel | Series: | Standard |
|---|---|---|---|
| Includes Inner Ring: | No | Cage Material: | Steel |
| Bore Type: | Straight | Misalignment: | No |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Number of Rows: | 1 | Seal Type: | Unsealed |
| Speed [Max] Grease (RPM): | 1, 100 rpm | Dynamic Load Rating (lb): | 85, 700 lb |
| Sealed: | None | Static Load Rating (lb): | 222, 000 lb |
| Platform: | Cagerol Bearing | Full Complement/Caged: | Caged |
| Speed [Max] Oil (RPM): | 2, 180 rpm | Duplexing: | No |
| Flanges: | No Flanges | Precision Rating: | RBEC-1 |
| Related Inner Ring: | MI 72 | Standard Met: | ABMA, ISO |
| Lubrication Hole Type: | Lubrication Groove & Hole | Separable: | Nonseparable |
| Enclosure: | Open | Component Type: | Outer race only |
| Retainer: | Yes | Operating Temperature Range (F): | -20 to 250 °F °F |
| UPC: | 726166064631 | Weight: | 9.43 LB |
| Packaged Length: | 7.4 Inches | Packaged Width: | 7.3 Inches |
| Packaged Height: | 3.3 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
