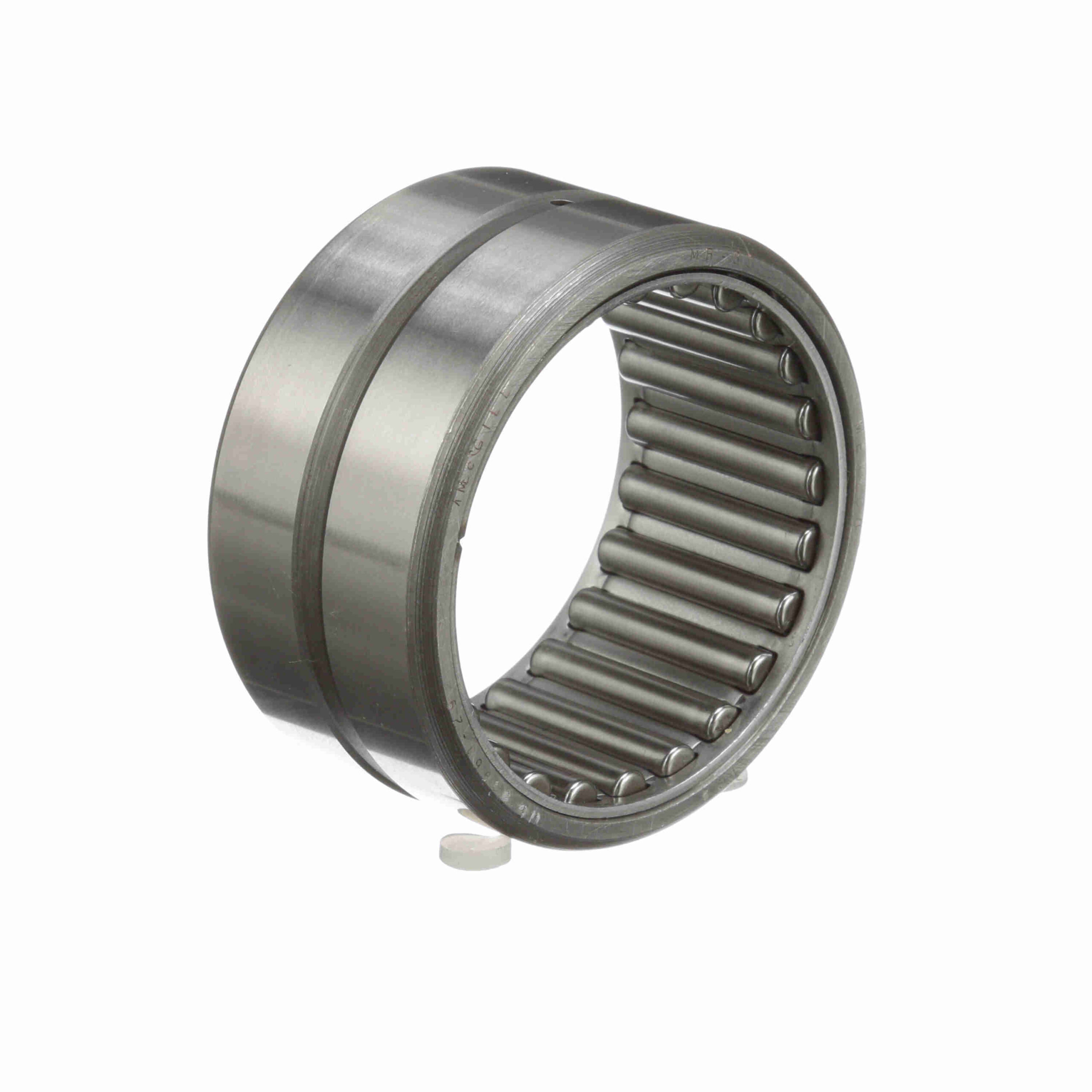

- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
MR 30
McGill Cagerol® Radial Needle Roller Bearing (no inner) – MR 30
$38.88
Availability: 83 in stock
Availability: 83 in stock
| Series: | Standard | Includes Inner Ring: | No |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Radial Clearance: | Normal | Number of Rows: | 1 |
| Seal Type: | Unsealed | Misalignment: | No |
| Speed [Max] Grease (RPM): | 3, 200 rpm | Static Load Rating (lb): | 25, 600 lb |
| Sealed: | None | Duplexing: | No |
| Platform: | Cagerol Bearing | Dynamic Load Rating (lb): | 14, 400 lb |
| Full Complement/Caged: | Caged | Speed [Max] Oil (RPM): | 6, 400 rpm |
| Standard Met: | ABMA, ISO, MS 51961-29 | Flanges: | No flange |
| Lubrication Hole Type: | Lubrication groove and hole | Precision Rating: | RBEC-1 |
| Related Inner Ring: | MI 25 4S | Separable: | Nonseparable |
| Component Type: | Outer race only | Enclosure: | Open |
| Retainer: | Yes | Operating Temperature Range (F): | -20 to 250 °F °F |
| UPC: | 726166066994 | Weight: | 0.50 LB |
| Packaged Length: | 2.7 Inches | Packaged Width: | 2.7 Inches |
| Packaged Height: | 1.3 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
