- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Narrow width configuration
MR 24 N

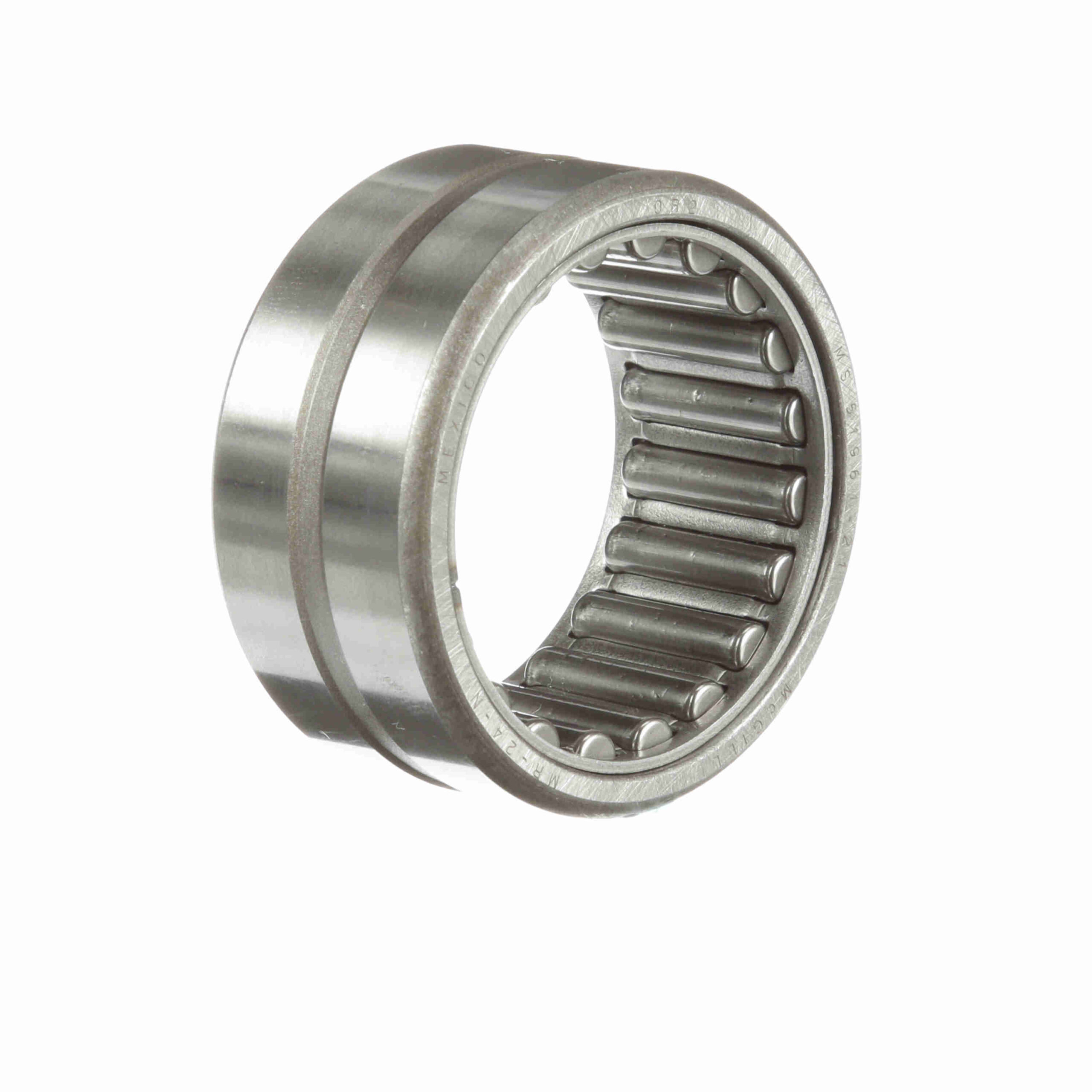

McGill Cagerol® Radial Needle Roller Bearing (no inner) – MR 24 N
$22.79
Availability: 151 in stock
Availability: 151 in stock
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
|---|---|---|---|
| Series: | Narrow | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Number of Rows: | 1 | Seal Type: | Unsealed |
| Sealed: | None | Platform: | Cagerol Bearing |
| Speed [Max] Oil (RPM): | 8, 000 rpm | Full Complement/Caged: | Caged |
| Speed [Max] Grease (RPM): | 4, 000 rpm | Static Load Rating (lb): | 15, 500 lb |
| Dynamic Load Rating (lb): | 10, 300 lb | Duplexing: | No |
| Standard Met: | ABMA, ISO, MS 51961-21 | Related Inner Ring: | MI 20 N |
| Lubrication Hole Type: | Lubrication groove and hole | Precision Rating: | RBEC-1 |
| Flanges: | No flange | Enclosure: | Open |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | Yes | Operating Temperature Range (F): | -20 to 250 °F °F |
| UPC: | 726166066444 | Weight: | 0.34 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
