- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Matched pair for duplex mounting
- Narrow width configuration
MR 24 N DS

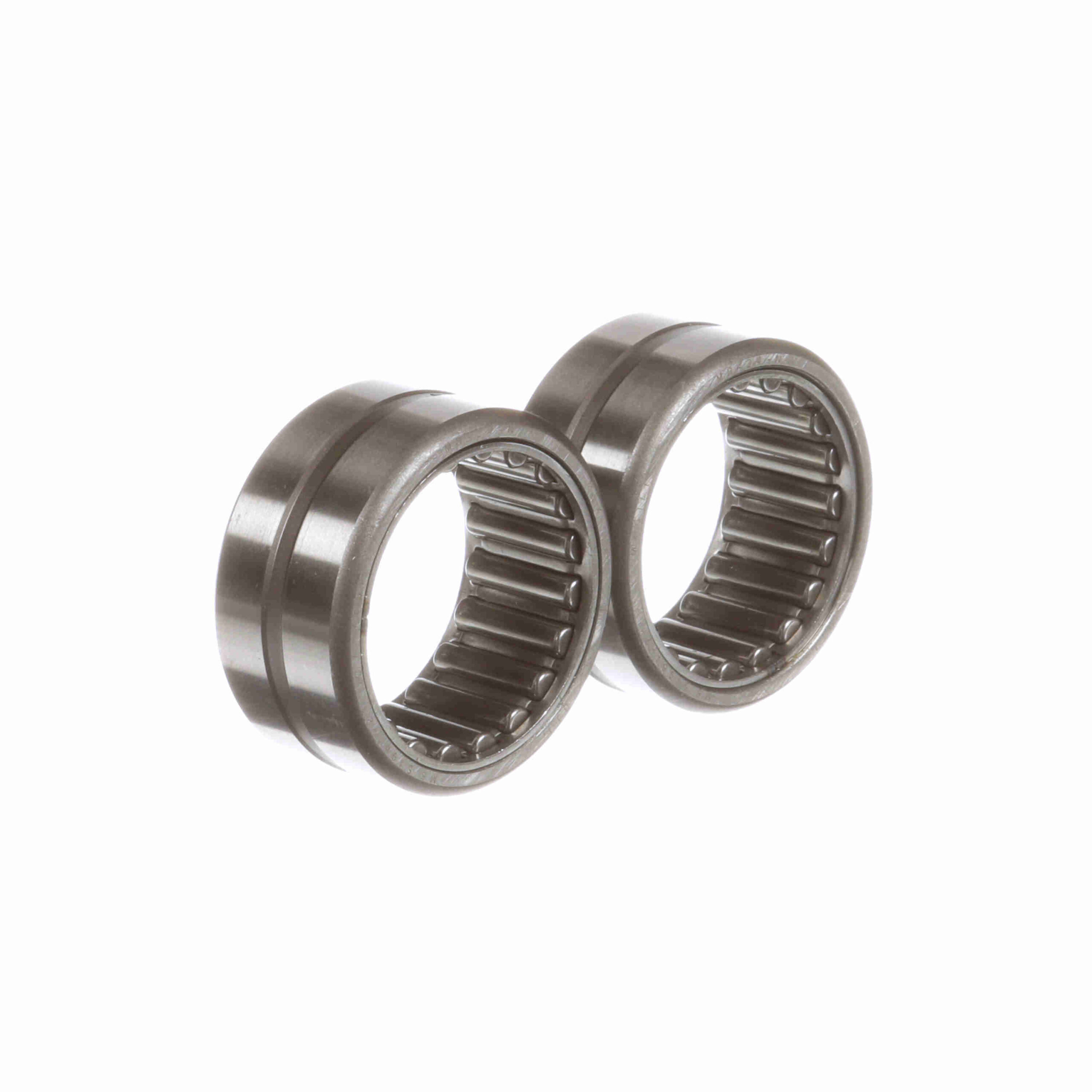

McGill Cagerol® Radial Needle Roller Bearing (no inner) – MR 24 N DS
$104.84
Out of stock
Out of stock
| Includes Inner Ring: | No | Series: | Narrow |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Seal Type: | Unsealed | Rolling Element: | Needle Roller |
| Misalignment: | No | Bore Type: | Straight |
| Speed [Max] Oil (RPM): | 8, 000 rpm | Speed [Max] Grease (RPM): | 4, 000 rpm |
| Duplexing: | Yes | Static Load Rating (lb): | 15, 500 lb |
| Platform: | Cagerol Bearing | Full Complement/Caged: | Caged |
| Sealed: | None | Dynamic Load Rating (lb): | 17, 000 lb |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication groove and hole |
| Flanges: | No flange | Component Type: | Outer race only |
| Separable: | Nonseparable | Enclosure: | Open |
| Retainer: | Yes | Operating Temperature Range (F): | -20 to 250 °F °F |
| UPC: | 726166066468 | Weight: | 0.66 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
