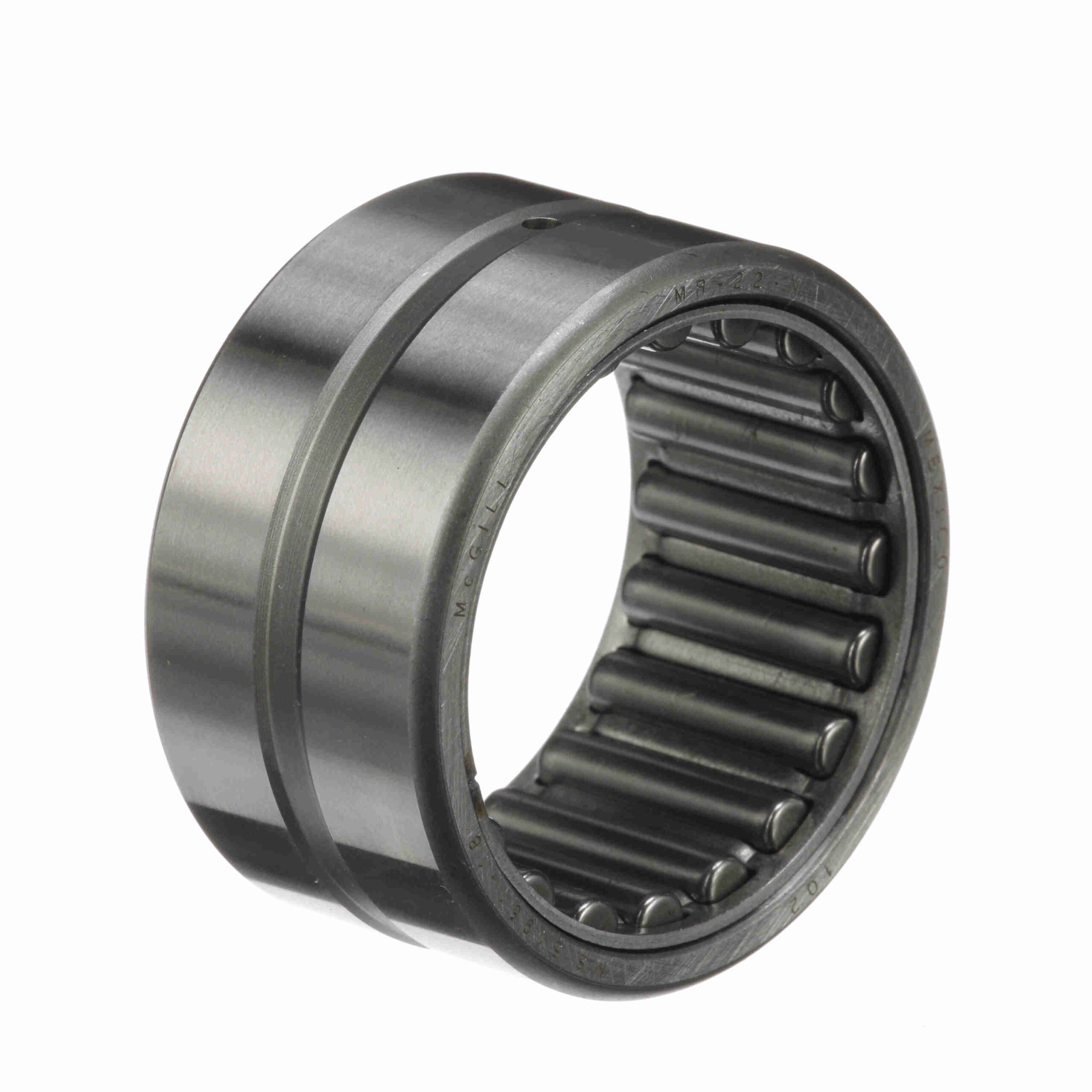

- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Narrow width configuration
MR 22 N
McGill Cagerol® Radial Needle Roller Bearing (no inner) – MR 22 N
$24.41
Availability: 153 in stock
Availability: 153 in stock
| Includes Inner Ring: | No | Series: | Narrow |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Seal Type: | Unsealed | Bore Type: | Straight |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Misalignment: | No | Rolling Element: | Needle Roller |
| Full Complement/Caged: | Caged | Sealed: | None |
| Platform: | Cagerol Bearing | Duplexing: | No |
| Static Load Rating (lb): | 14, 700 lb | Speed [Max] Grease (RPM): | 4, 370 rpm |
| Dynamic Load Rating (lb): | 9, 640 lb | Speed [Max] Oil (RPM): | 8, 750 rpm |
| Flanges: | No Flanges | Lubrication Hole Type: | Lubrication Groove & Hole |
| Related Inner Ring: | MI 18 N | Standard Met: | ABMA, ISO |
| Precision Rating: | RBEC-1 | Enclosure: | Open |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Retainer: | Yes | Operating Temperature Range (F): | -20 to 250 °F °F |
| UPC: | 726166066147 | Weight: | 0.27 LB |
| Packaged Length: | 2 Inches | Packaged Width: | 1.37 Inches |
| Packaged Height: | 2 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
