- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Single rubber-lipped seal with lip turned in
MR 20 S

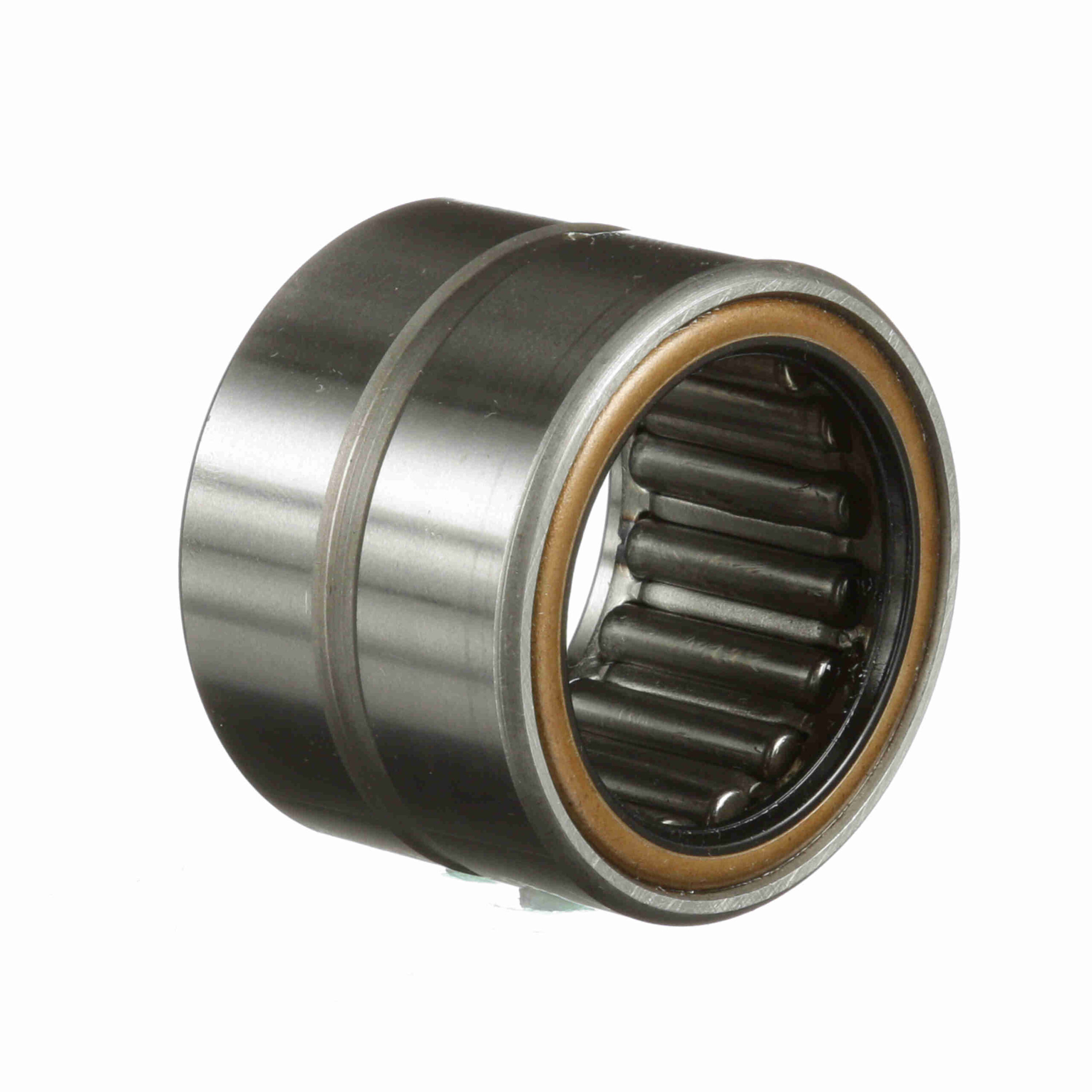

McGill Cagerol® Radial Needle Roller Bearing (no inner) – Sealed – MR 20 S
$35.64
Availability: 9 in stock
Availability: 9 in stock
| Series: | Standard | Includes Inner Ring: | No |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Bore Type: | Straight | Seal Type: | Rubber Lip |
| Rolling Element: | Needle Roller | Radial Clearance: | Normal |
| Number of Rows: | 1 | Misalignment: | No |
| Dynamic Load Rating (lb): | 9, 020 lb | Full Complement/Caged: | Caged |
| Speed [Max] Grease (RPM): | 1, 500 rpm | Static Load Rating (lb): | 13, 100 lb |
| Speed [Max] Oil (RPM): | 3, 050 rpm | Platform: | Cagerol Bearing |
| Duplexing: | No | Sealed: | Sealed - One Side |
| Lubrication Hole Type: | Lubrication groove and hole | Precision Rating: | RBEC-1 |
| Flanges: | No flange | Related Inner Ring: | MI 16 |
| Component Type: | Outer race only | Enclosure: | Sealed One Side |
| Separable: | Nonseparable | Retainer: | Yes |
| Operating Temperature Range (F): | -20 to 250 °F °F | UPC: | 726166065850 |
| Weight: | 0.31 LB | Packaged Length: | 1.5 Inches |
| Packaged Width: | 1.75 Inches | Packaged Height: | 2.18 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
