- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Double rubber-lipped seals with both lips turned out
MR 18 RSS

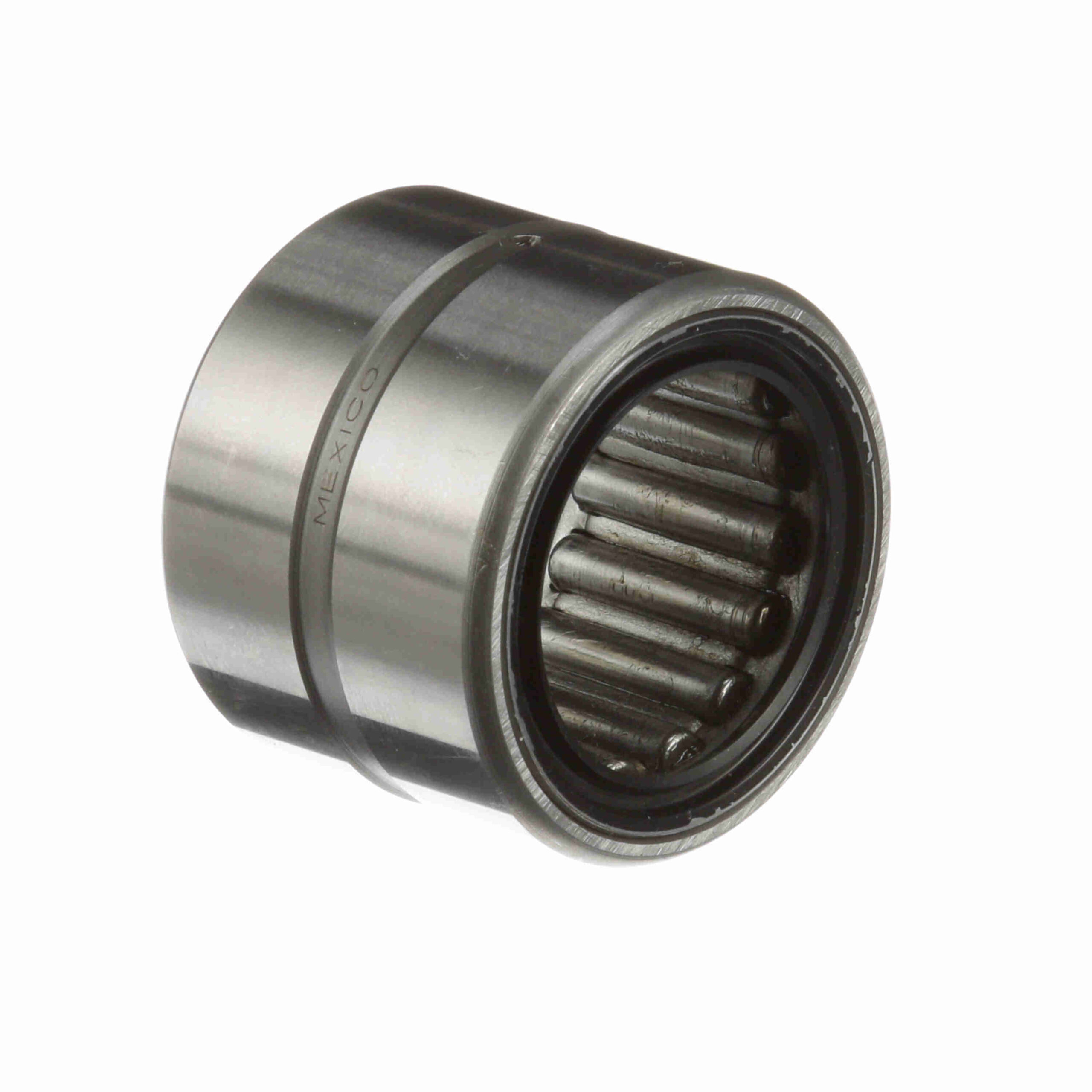

McGill Cagerol® Radial Needle Roller Bearing (no inner) – Sealed – MR 18 RSS
$37.09
Availability: 14 in stock
Availability: 14 in stock
| Material: | 52100 Bearing Steel | Series: | Standard |
|---|---|---|---|
| Includes Inner Ring: | No | Cage Material: | Steel |
| Misalignment: | No | Number of Rows: | 1 |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Seal Type: | Rubber Lip | Radial Clearance: | Normal |
| Dynamic Load Rating (lb): | 8, 720 lb | Static Load Rating (lb): | 12, 200 lb |
| Platform: | Cagerol Bearing | Full Complement/Caged: | Caged |
| Duplexing: | No | Speed [Max] Grease (RPM): | 3, 400 rpm |
| Sealed: | Sealed - Both Sides | Lubrication Hole Type: | Lubrication Groove & Hole |
| Standard Met: | ABMA, ISO | Related Inner Ring: | MI 14 |
| Flanges: | No Flanges | Precision Rating: | RBEC-1 |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Enclosure: | Sealed Both Sides | Retainer: | Yes |
| Operating Temperature Range (F): | -20 to 250 °F °F | UPC: | 726166065690 |
| Weight: | 0.29 LB | Packaged Length: | 1.5 Inches |
| Packaged Width: | 1.75 Inches | Packaged Height: | 2.18 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
