- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
MR 12

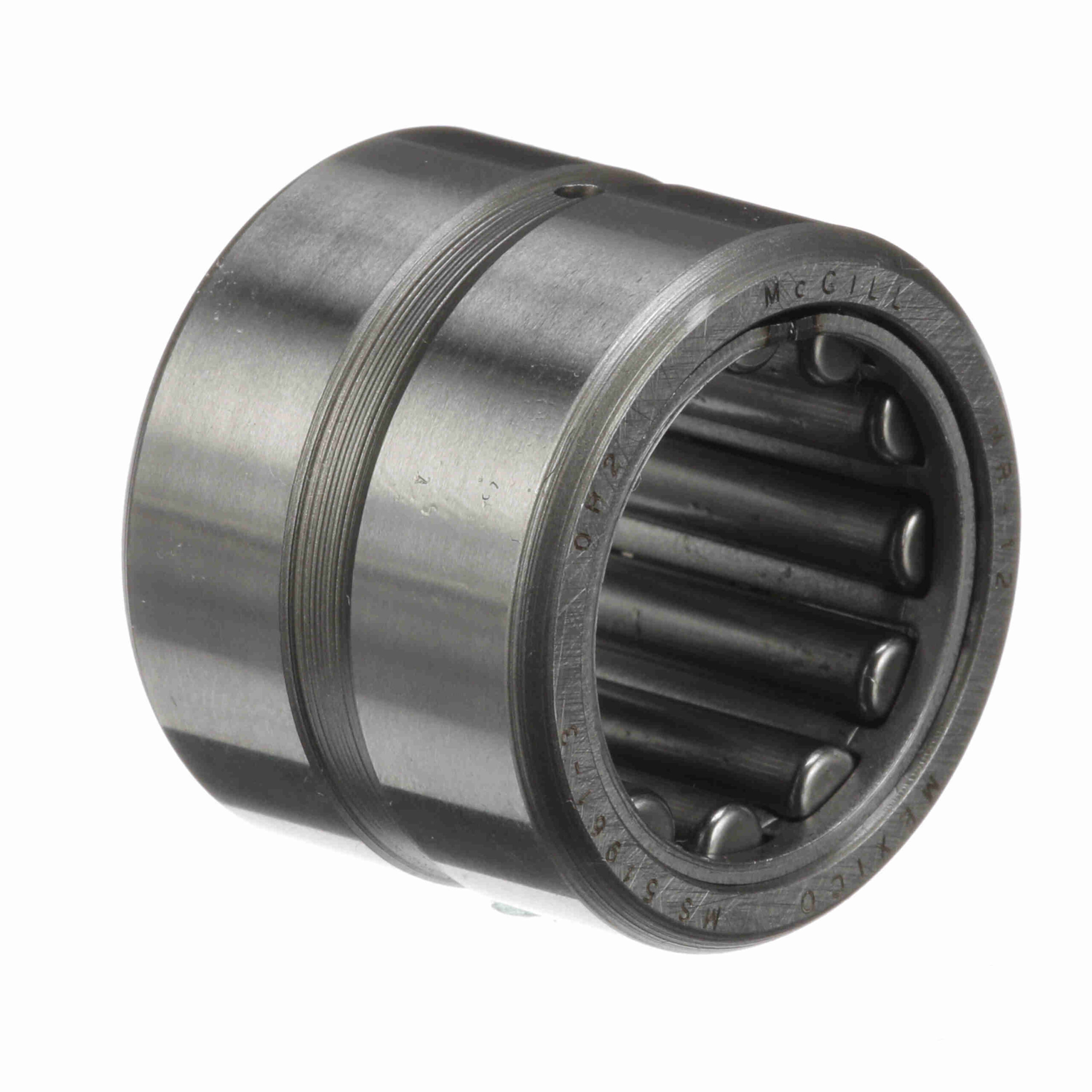

McGill Cagerol® Radial Needle Roller Bearing (no inner) – MR 12
$15.48
Availability: 163 in stock
Availability: 163 in stock
| Includes Inner Ring: | No | Series: | Standard |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Bore Type: | Straight | Seal Type: | Unsealed |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Static Load Rating (lb): | 8, 100 lb | Full Complement/Caged: | Caged |
| Speed [Max] Grease (RPM): | 13, 000 rpm | Speed [Max] Oil (RPM): | 16, 000 rpm |
| Dynamic Load Rating (lb): | 6, 830 lb | Sealed: | None |
| Platform: | Cagerol Bearing | Duplexing: | No |
| Precision Rating: | RBEC-1 | Flanges: | No Flanges |
| Related Inner Ring: | MI 8 | Standard Met: | ABMA, ISO |
| Lubrication Hole Type: | Lubrication Groove & Hole | Enclosure: | Open |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Retainer: | Yes | Operating Temperature Range (F): | -20 to 250 °F °F |
| UPC: | 726166064945 | Weight: | 0.18 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
