- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Narrow width configuration
- With separable inner ring
MR 12 N/MI 8 N BULK

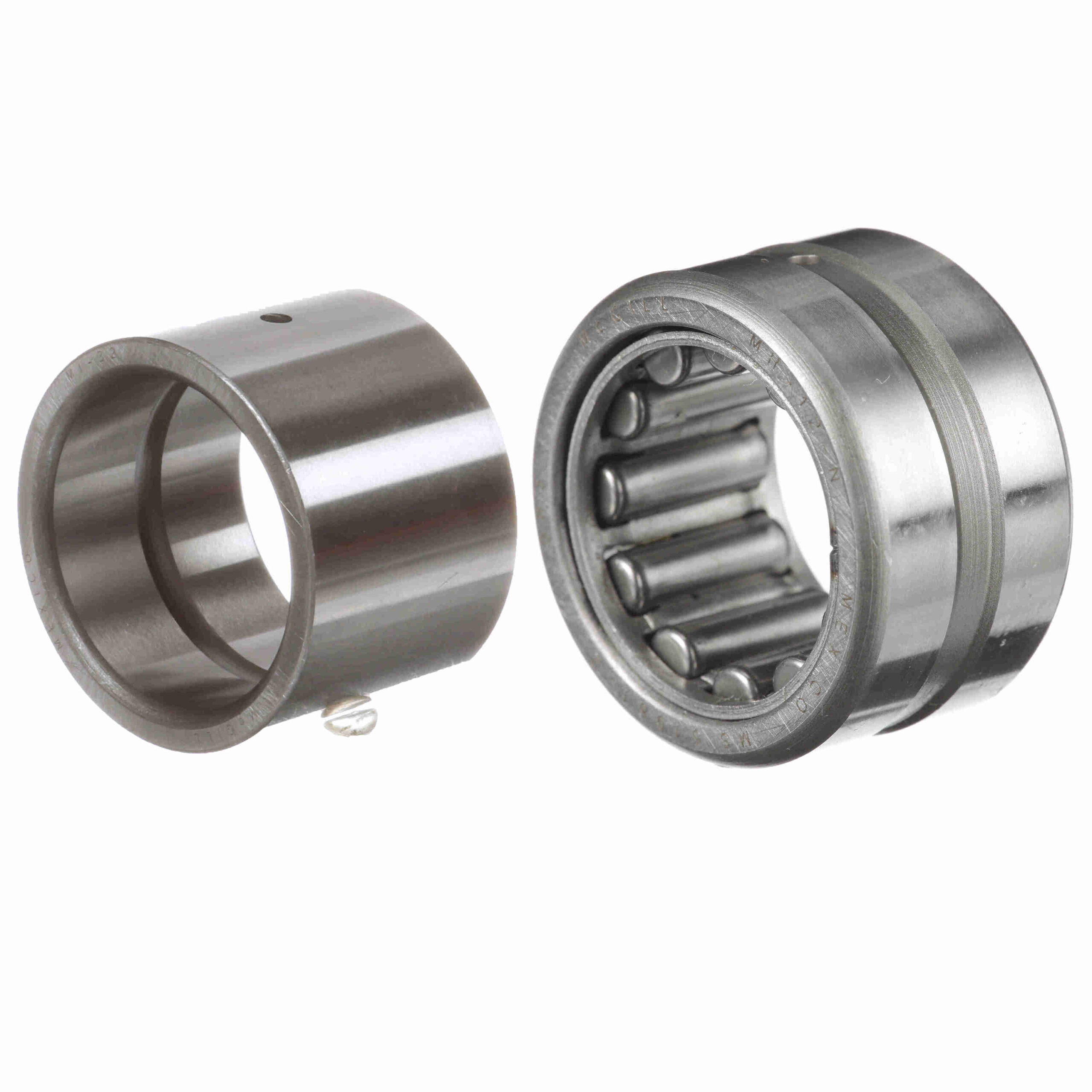

McGill Cagerol® Radial Needle Roller Bearing (with inner) – MR 12 N/MI 8 N BULK
Out of stock
| Includes Inner Ring: | Yes | Series: | Narrow |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Radial Clearance: | Normal | Seal Type: | Unsealed |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Bore Type: | Straight | Misalignment: | No |
| Platform: | Cagerol Bearing | Speed [Max] Grease (RPM): | 8, 000 rpm |
| Speed [Max] Oil (RPM): | 16, 000 rpm | Full Complement/Caged: | Caged |
| Static Load Rating (lb): | 5, 400 lb | Sealed: | None |
| Dynamic Load Rating (lb): | 4, 990 lb | Duplexing: | No |
| Standard Met: | ABMA, ISO | Precision Rating: | Not Rated |
| Lubrication Hole Type: | Lubrication Groove & Hole | Component Type: | Outer race only |
| Separable: | Inner ring - both sides | Enclosure: | Open |
| Retainer: | Yes | Operating Temperature Range (F): | -20F to 250 °F °F |
| UPC: | 726166065089 | Weight: | 0.16 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
