- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
- Felt labyrinth seal and flinger for dusty and dirty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
MP-47 CXU

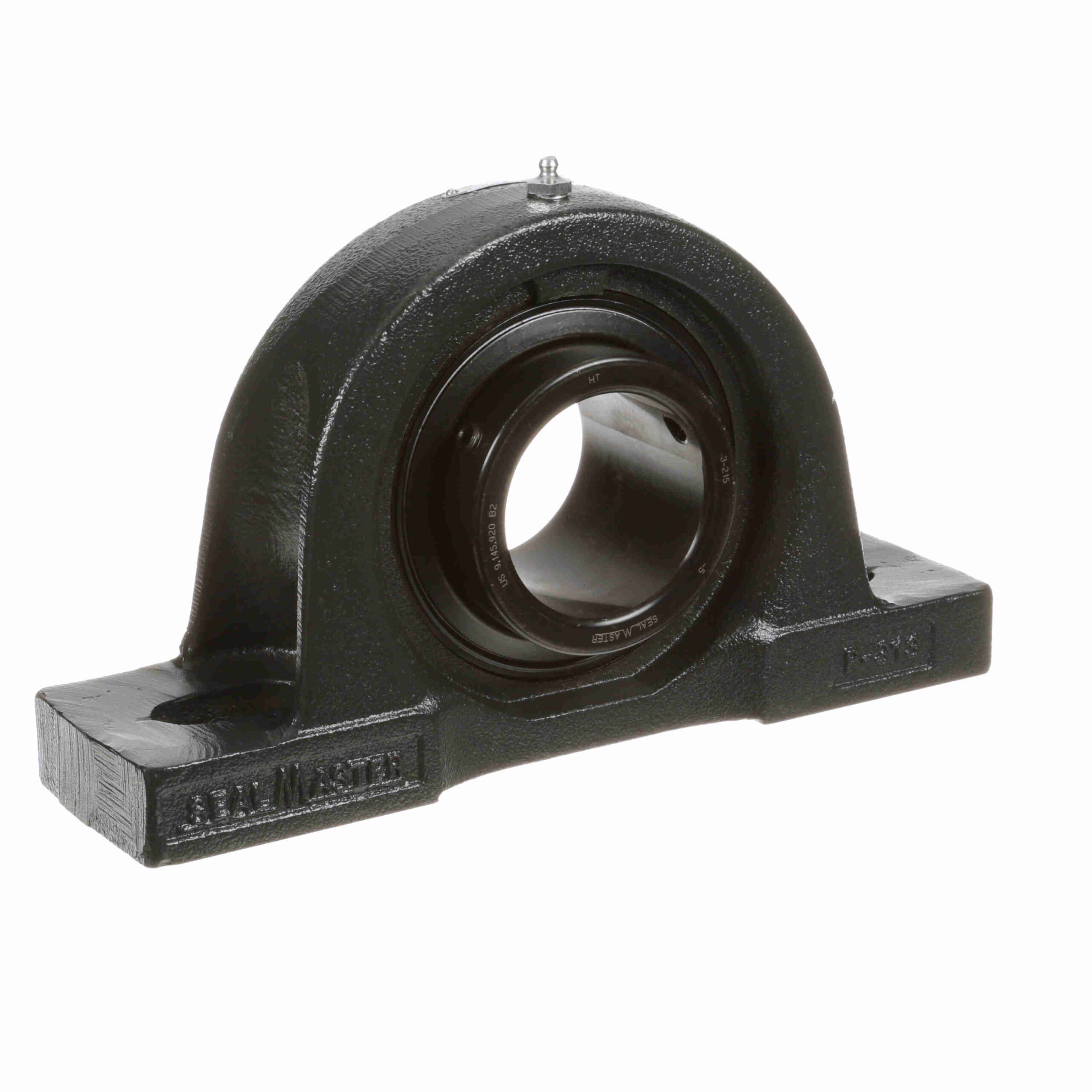

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – Air Handling Housing Fit, Noise Tested – MP-47 CXU
$933.54
Out of stock
Out of stock
| Measure Units: | Inch | Insert No.: | 3-215 |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Housing Type: | Pillow Block, Two Bolt |
| Maximum Operating Temperature: | 220 °F | Internal Clearance: | Standard |
| Speed (Max): | 2250 | Housing Material: | Cast Iron |
| Retainer Type: | Land Riding Retainer | Seal Type: | Felt Labyrinth Seal |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Expansion: | No |
| Housing Base: | Solid | Duty Series: | Medium Duty |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Locking Type: | Setscrew |
| Misalignment: | ±2.0° Misalignment - Static Only | Lubrication: | Lithium Complex NLGI 2 Grease |
| Relubricatable: | Yes | Platform: | Air Handling |
| Options: | Air Handling Housing Fit, Noise Tested | Bearing Insert Coating: | Black Oxide Coated |
| Misalignment Type: | Static Only | Housing Color: | Gray |
| Replaceable Insert: | Yes | End Cap: | No |
| Outer Ring Land Profile: | Standard | UPC: | 662461078624 |
| Weight: | 31.30 LB | Packaged Length: | 14.25 Inches |
| Packaged Width: | 8.06 Inches | Packaged Height: | 4 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
