- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
MP-27C

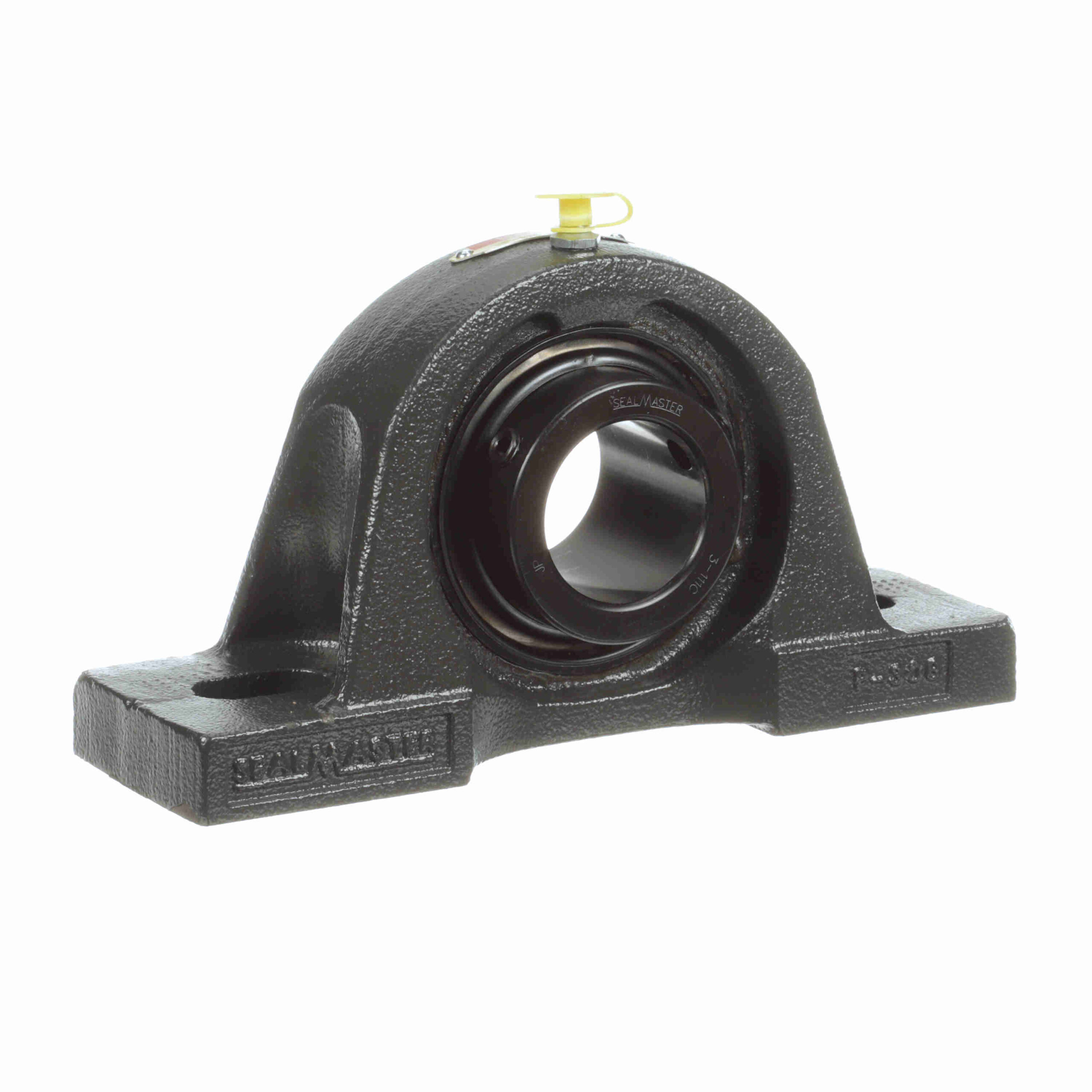

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – MP-27C
$305.77
Out of stock
Out of stock
| Housing Base: | Solid | Insert Material: | 52100 Bearing Steel, Black Oxided |
|---|---|---|---|
| Housing Material: | Cast Iron | Insert No.: | 3-111C |
| Measure Units: | Inch | Rolling Element: | Ball Bearing |
| Housing Type: | Pillow Block, Two Bolt | Internal Clearance: | Standard |
| Duty Series: | Medium Duty | Retainer Type: | Land Riding Retainer |
| Expansion: | No | Seal Type: | Single Lip Contact Seal |
| Maximum Operating Temperature: | 220 °F | Speed (Max): | 3550 |
| Bore Shape: | Straight | Relubricatable: | Yes |
| Misalignment: | ±2.0° Misalignment - Static Only | Locking Type: | Setscrew |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Housing Construction: | One Piece |
| Lubrication: | Lithium Complex NLGI 2 Grease | Misalignment Type: | Static Only |
| End Cap: | No | Replaceable Insert: | Yes |
| Outer Ring Land Profile: | Standard | Platform: | Gold Line Ball Bearing |
| Bearing Insert Coating: | Black Oxide Coated | Housing Color: | Gray |
| UPC: | 662461026670 | Weight: | 9.20 LB |
| Packaged Length: | 8.88 Inches | Packaged Width: | 5.94 Inches |
| Packaged Height: | 2.63 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
