- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
- MO is made with felt grease seals to minimize drag for high speed inner race overrunning application. Delivered with standard grease lubrication
MO700A-G 2-15/16FB CL

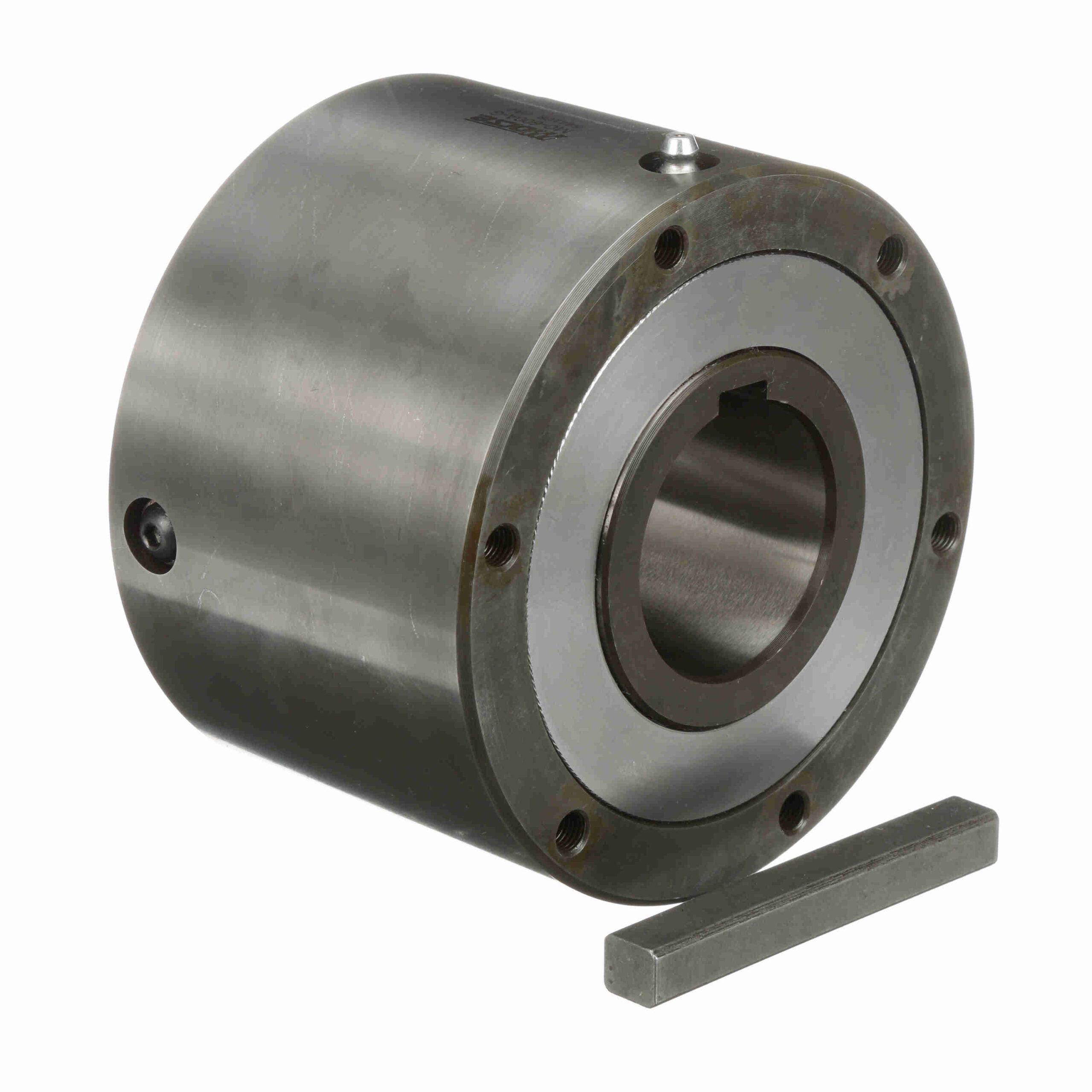

Morse M Series CAM Clutch – MO700A-G 2-15/16FB CL
Out of stock
| Clutch size code: | 700 | Mode of Operation: | High Speed inner race overrunning |
|---|---|---|---|
| Type: | CAM Clutches | Model: | MO |
| Overall Diameter (in): | 7.125 in | Product Type: | M Series |
| RPM Max. - Inner Race: | 2000 | Inner Race Width (in): | 5 in |
| RPM Max. - Outer Race: | 400 | Rated Torque Capacity (ft.-lbs.): | 5, 000 |
| Outer Width (in): | 4.875 in | Add'l Bearing Support Requirement: | No |
| Overrunning Clutch: | Yes | Bore (Max) (in): | 2.9375 in |
| Indexing Clutch: | Yes | Bore Size (in): | 2.9375 in |
| Lubrication Type: | Grease | Bore (Min) (in): | 2 in |
| Backstopping Clutch: | Yes | Nominal Overrunning Drag (ft-lb): | 1.3 |
| UPC: | 662288501923 | Weight: | 43.00 LB |
| Packaged Length: | 7.25 Inches | Packaged Width: | 7.25 Inches |
| Packaged Height: | 5.50 Inches | HTC: | 8483.60.4040 |
| Country of Origin: | Mexico |
