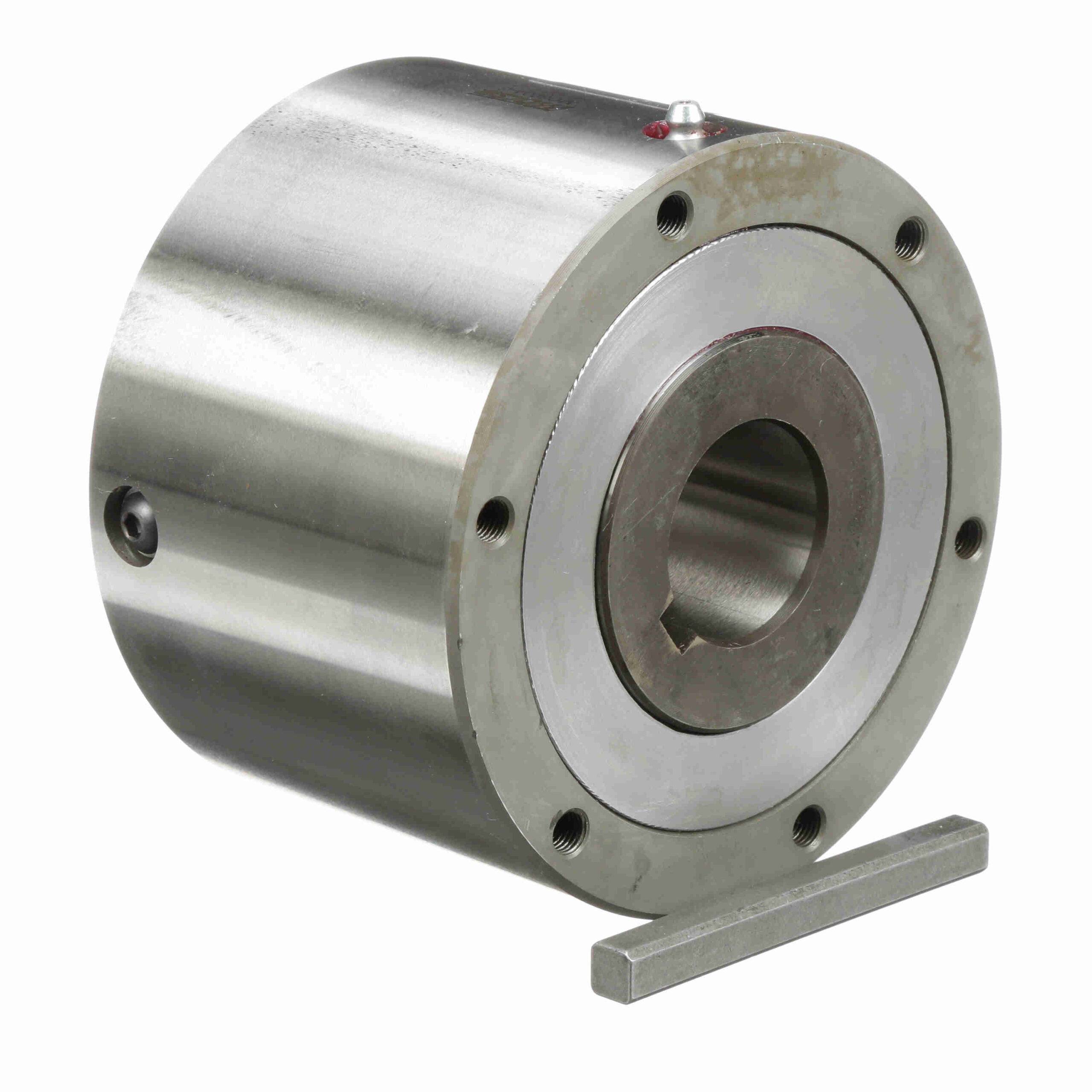

MO600A-G 1-1/2FB CL

Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
MO is made with felt grease seals to minimize drag for high speed inner race overrunning application. Delivered with standard grease lubrication

Outer Width (in):	3.625 in	Model:	MO
Clutch size code:	600	RPM Max. - Outer Race:	700
Rated Torque Capacity (ft.-lbs.):	2, 250	RPM Max. - Inner Race:	2400
Inner Race Width (in):	3.75 in	Mode of Operation:	High Speed inner race overrunning
Product Type:	M Series	Type:	CAM Clutches
Overall Diameter (in):	5.375 in	Add'l Bearing Support Requirement:	No
Indexing Clutch:	Yes	Bore (Max) (in):	2 in
Bore Size (in):	1.5 in	Bore (Min) (in):	1.25 in
Backstopping Clutch:	Yes	Overrunning Clutch:	Yes
Lubrication Type:	Grease	Nominal Overrunning Drag (ft-lb):	0.63
UPC:	662288502241	Weight:	20.00 LB
Packaged Length:	6.20 Inches	Packaged Width:	6.70 Inches
Packaged Height:	4.10 Inches	HTC:	8483.60.4040
Country of Origin:	Mexico
