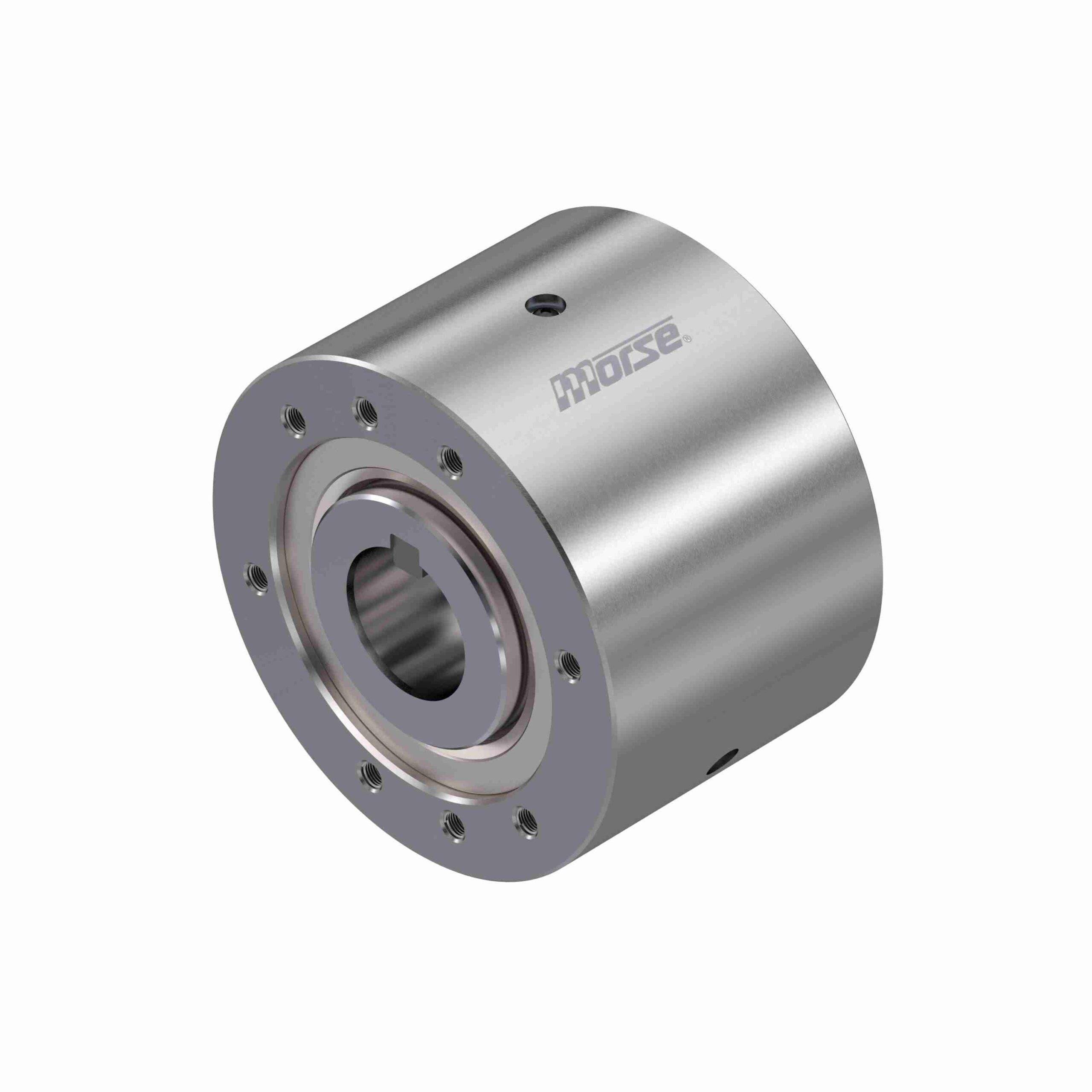

MI600A 1-1/2FB CL

Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
MI is recommended for high performance indexing applications requiring high indexing accuracy. Incorporates and low inertia cage and heavy duty inergizing spring for quick cam reaction

Rated Torque Capacity (ft.-lbs.):	2, 250	Mode of Operation:	High Performance Indexing
Product Type:	M Series	Clutch size code:	600
Overall Diameter (in):	5.375 in	Outer Width (in):	3.625 in
Type:	CAM Clutches	Model:	MI
Inner Race Width (in):	3.75 in	Add'l Bearing Support Requirement:	No
Backstopping Clutch:	Yes	Indexing Clutch:	Yes
Overrunning Clutch:	Yes	Bore (Min) (in):	1.25 in
Bore (Max) (in):	2 in	Lubrication Type:	Oil
Bore Size (in):	1.5 in	Nominal Overrunning Drag (ft-lb):	0.63
UPC:	662288501589	Weight:	19.00 LB
Packaged Length:	5.19 Inches	Packaged Width:	5.19 Inches
Packaged Height:	4.57 Inches	HTC:	8483.60.4040
Country of Origin:	Mexico
