- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
- MG is primarily used for general duty overriding, indexing, back-stopping. Offers precise spring energizing to provide ling overcunning life.
MG600A-G 1-15/16FB CL

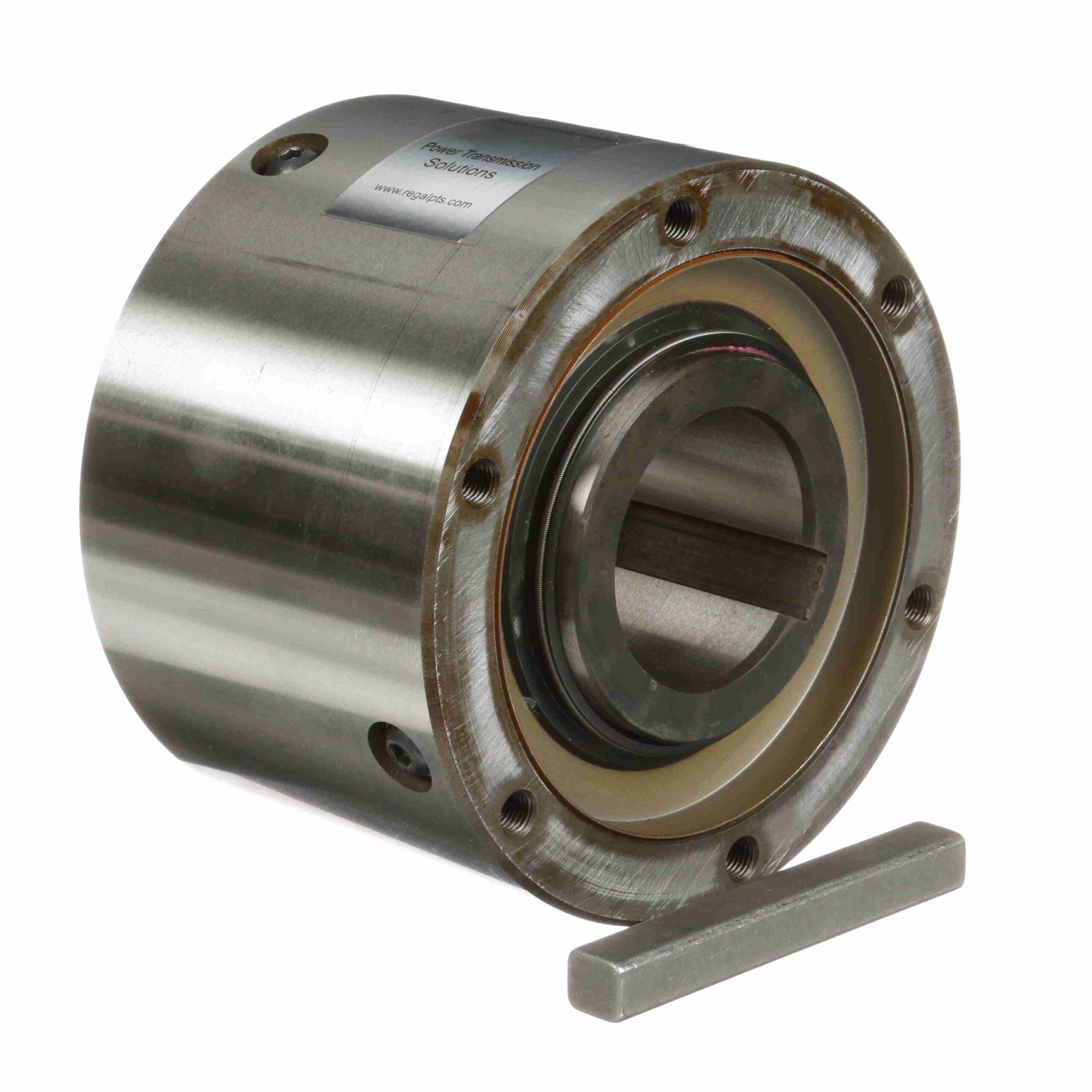

Morse M Series CAM Clutch – MG600A-G 1-15/16FB CL
$3,704.76
Out of stock
Out of stock
| Mode of Operation: | General duty all types | Outer Width (in): | 3.625 in |
|---|---|---|---|
| Product Type: | M Series | Overall Diameter (in): | 5.375 in |
| RPM Max. - Inner Race: | 1800 | RPM Max. - Outer Race: | 700 |
| Model: | MG | Inner Race Width (in): | 3.75 in |
| Rated Torque Capacity (ft.-lbs.): | 2, 250 | Type: | CAM Clutches |
| Clutch size code: | 600 | Add'l Bearing Support Requirement: | No |
| Backstopping Clutch: | Yes | Bore Size (in): | 1.9375 in |
| Bore (Max) (in): | 2 in | Overrunning Clutch: | Yes |
| Lubrication Type: | Grease | Bore (Min) (in): | 1.25 in |
| Indexing Clutch: | Yes | Nominal Overrunning Drag (ft-lb): | 0.63 |
| UPC: | 662288501541 | Weight: | 19.00 LB |
| Packaged Length: | 5.19 Inches | Packaged Width: | 5.19 Inches |
| Packaged Height: | 4.57 Inches | HTC: | 8483.60.4040 |
| Country of Origin: | Mexico |
Related products
700A TL FACING (2) PB
$148.12More InfoMorse Torque Overload Accessory- 700A Series Friction Facing – 700A TL FACING (2) PB
