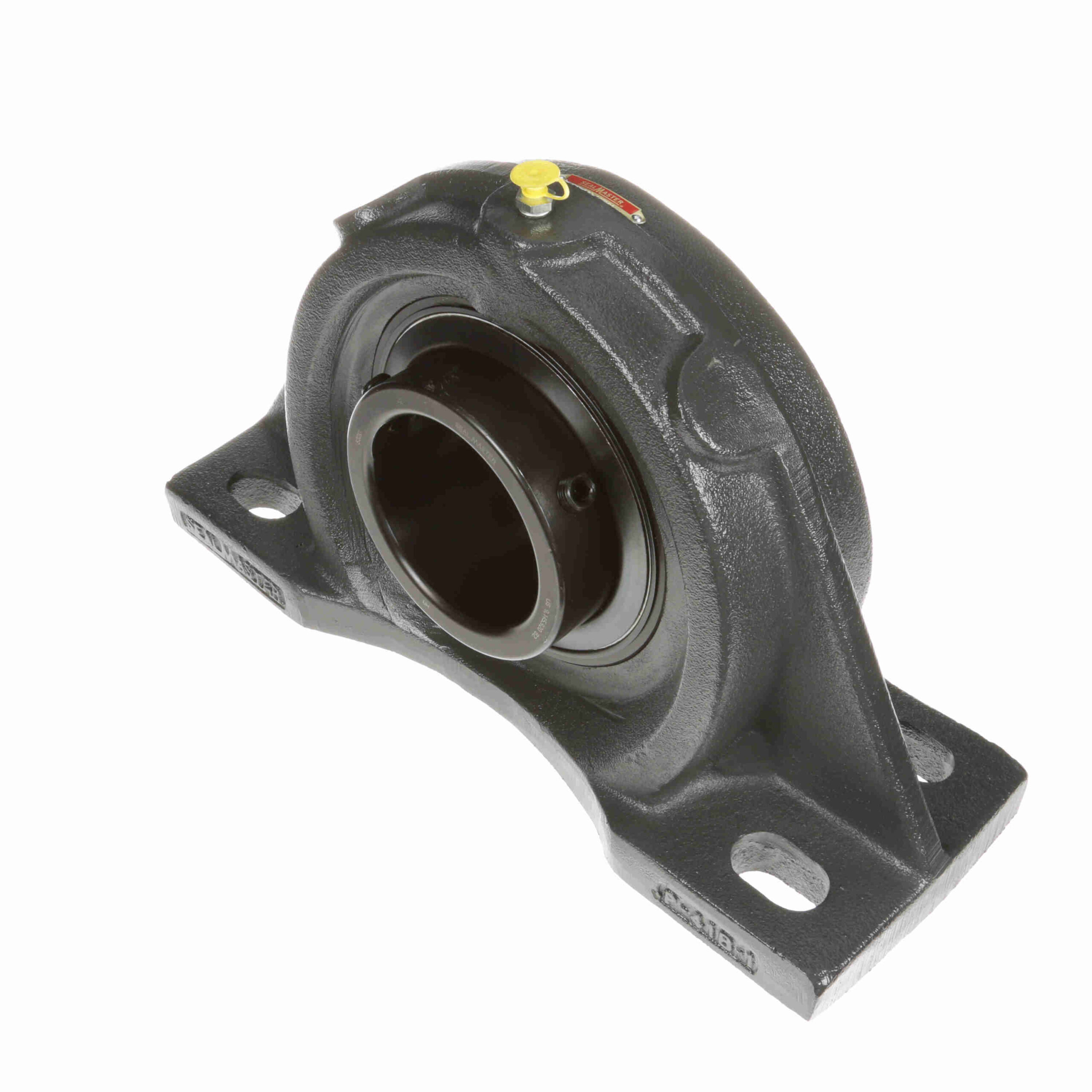

MFP-320

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Seal Type:	Felt Labyrinth Seal	Rolling Element:	Ball Bearing
Insert Material:	52100 Bearing Steel, Black Oxided	Measure Units:	Metric
Housing Base:	Solid	Housing Construction:	One Piece
Internal Clearance:	Standard	Misalignment:	±2.0° Misalignment - Static Only
Bore Shape:	Straight	Bearing Insert Coating:	Black Oxide Coated
Replaceable Insert:	Yes	Housing Color:	Gray
End Cap:	No	Platform:	Gold Line Ball Bearing
Misalignment Type:	Static Only	Outer Ring Land Profile:	Standard
Housing Material:	Cast Iron	Lubrication Type:	Lithium Complex NLGI 2 Grease
Duty/Series:	Medium Duty	Locking Type:	Setscrew
Retainer Type:	Land Riding Retainer	Housing Type:	Pillow Block, Four Bolt
Maximum Speed (RPM):	1700 rpm	Housing Style:	Pillow Block
Fixed vs. Expansion:	Fixed	Maximum Operating Temperature (F):	220 °F
Insert Number:	5320	Inner Race Heat Treat Method:	Zone-Hardened
Ability to Relubricate:	Yes	UPC:	662461000000
Weight:	83.50 LB	Packaged Length:	12.75 Inches
Packaged Width:	17.75 Inches	Packaged Height:	7 Inches
HTC:	8483.20.8040	Country of Origin:	United States of America
