- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc? concentric locking for near perfect concentricity
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
MFC-20T

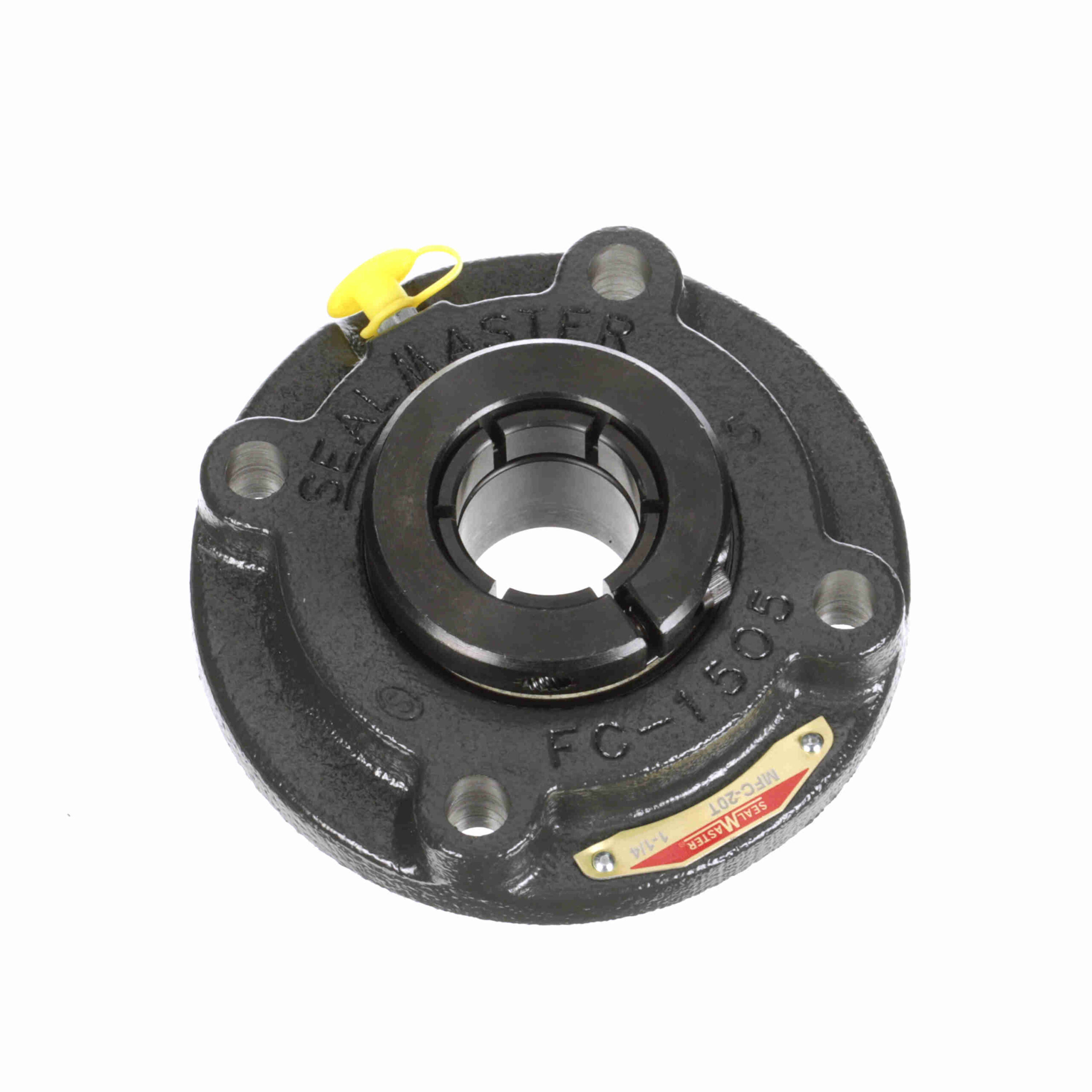

Sealmaster Mounted Cast Iron Flange Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – MFC-20T
$185.04
Availability: 1 in stock
Availability: 1 in stock
| Housing Type: | Flange; Piloted | Insert No.: | 2-14T |
|---|---|---|---|
| Measure Units: | Inch | Maximum Operating Temperature: | 220 °F |
| Duty Series: | Medium Duty | Rolling Element: | Ball Bearing |
| Expansion: | No | Seal Type: | Felt Labyrinth Seal |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Housing Base: | Solid |
| Housing Material: | Cast Iron | Bore Shape: | Straight |
| Retainer Type: | Land Riding Retainer | Relubricatable: | Yes |
| Pilot Configuration: | No Pilot | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Internal Clearance: | Standard | Radial Dynamic Load Capacity (lb): | 5, 782 |
| Misalignment: | ±2.0° Misalignment - Static Only | Speed (Max): | 7600 |
| Housing Construction: | One Piece | Locking Type: | Concentric |
| Lubrication: | Lithium Complex NLGI 2 Grease | Platform: | Gold Line Ball Bearing |
| Replaceable Insert: | Yes | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated | Outer Ring Land Profile: | Standard |
| End Cap: | No | Housing Color: | Gray |
| Radial Static Load Capacity (lb): | 3, 493 | UPC: | 662461031711 |
| Weight: | 3.93 LB | Packaged Length: | 5 Inches |
| Packaged Width: | 2 Inches | Packaged Height: | 5 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | United States of America |
