- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VPS-25MM

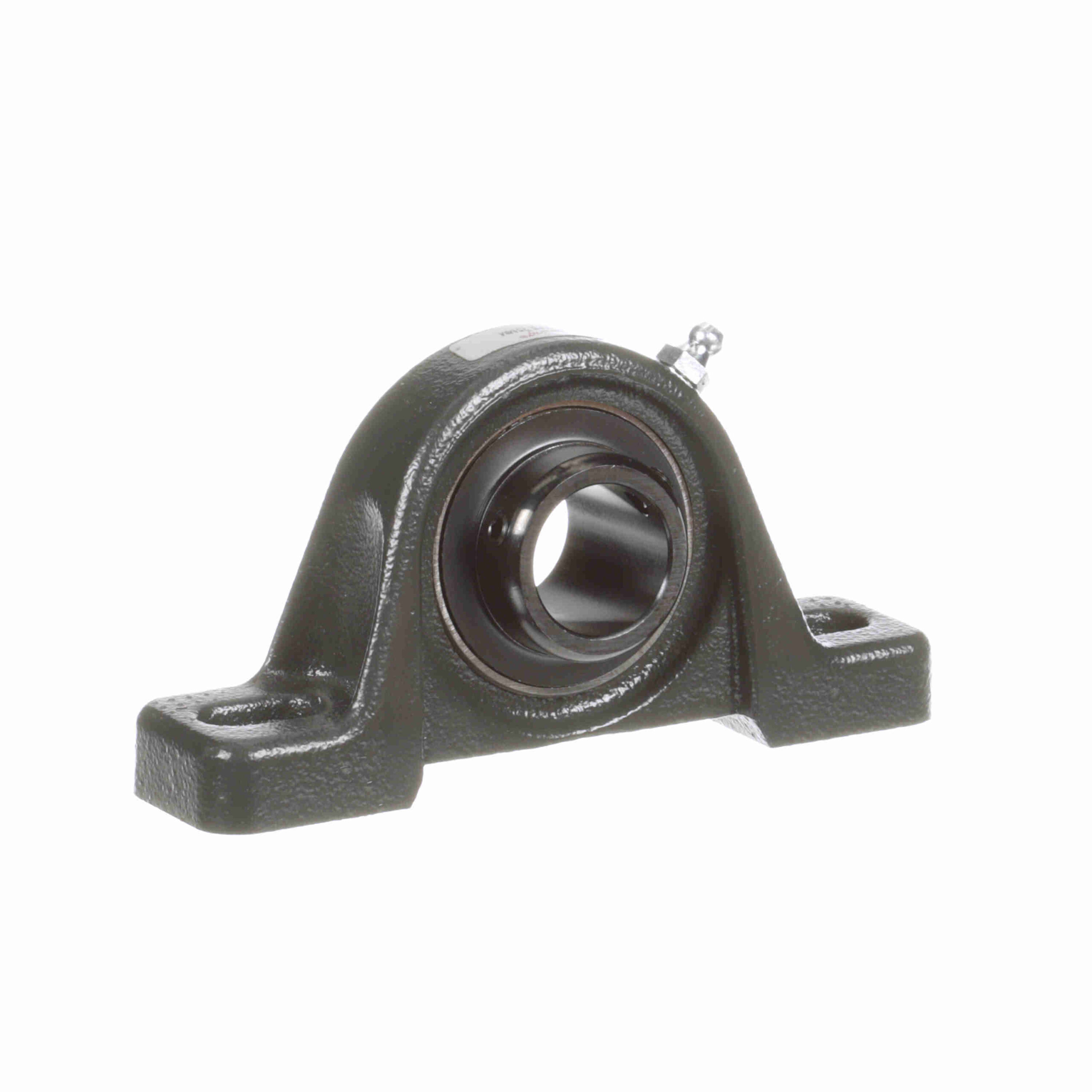

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VPS-25MM
Out of stock
| Rolling Element: | Ball Bearing | Measure Units: | Metric |
|---|---|---|---|
| Internal Clearance: | Standard | Seal Type: | Single Lip Contact Seal with Flinger |
| Housing Base: | Semi-Solid | Insert Material: | 52100 Bearing Steel, Black Oxided Inner |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Misalignment: | ±1.5° Misalignment - Static Only | End Cap: | No |
| Misalignment Type: | Static Only | Retainer Material: | Molded fiber glass reinforced nylon |
| Replaceable Insert: | Yes | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Housing Color: | Gray |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Housing Type: | Pillow Block, Two Bolt |
| Housing Style: | Pillow Block | Duty/Series: | Standard Duty |
| Locking Type: | Setscrew | Retainer Type: | Ball Riding Retainer |
| Fixed vs. Expansion: | Fixed | Housing Material: | Cast Iron |
| Maximum Speed (RPM): | 5500 rpm | Ability to Relubricate: | Yes |
| Maximum Operating Temperature (F): | 200 °F | Insert Number: | VS-25MM |
| UPC: | 662461000000 | Weight: | 1.74 LB |
| Packaged Length: | 0 Inches | Packaged Width: | 0 Inches |
| Packaged Height: | 0 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | Mexico |
