- Metric stud type cam follower
- Crowned outside diameter
- Retained (caged) needle rolling elements
- Slot hole
- LUBRI-DISC® seal
- Eccentric bushing configuration
- Jam nuts and lube fitting included

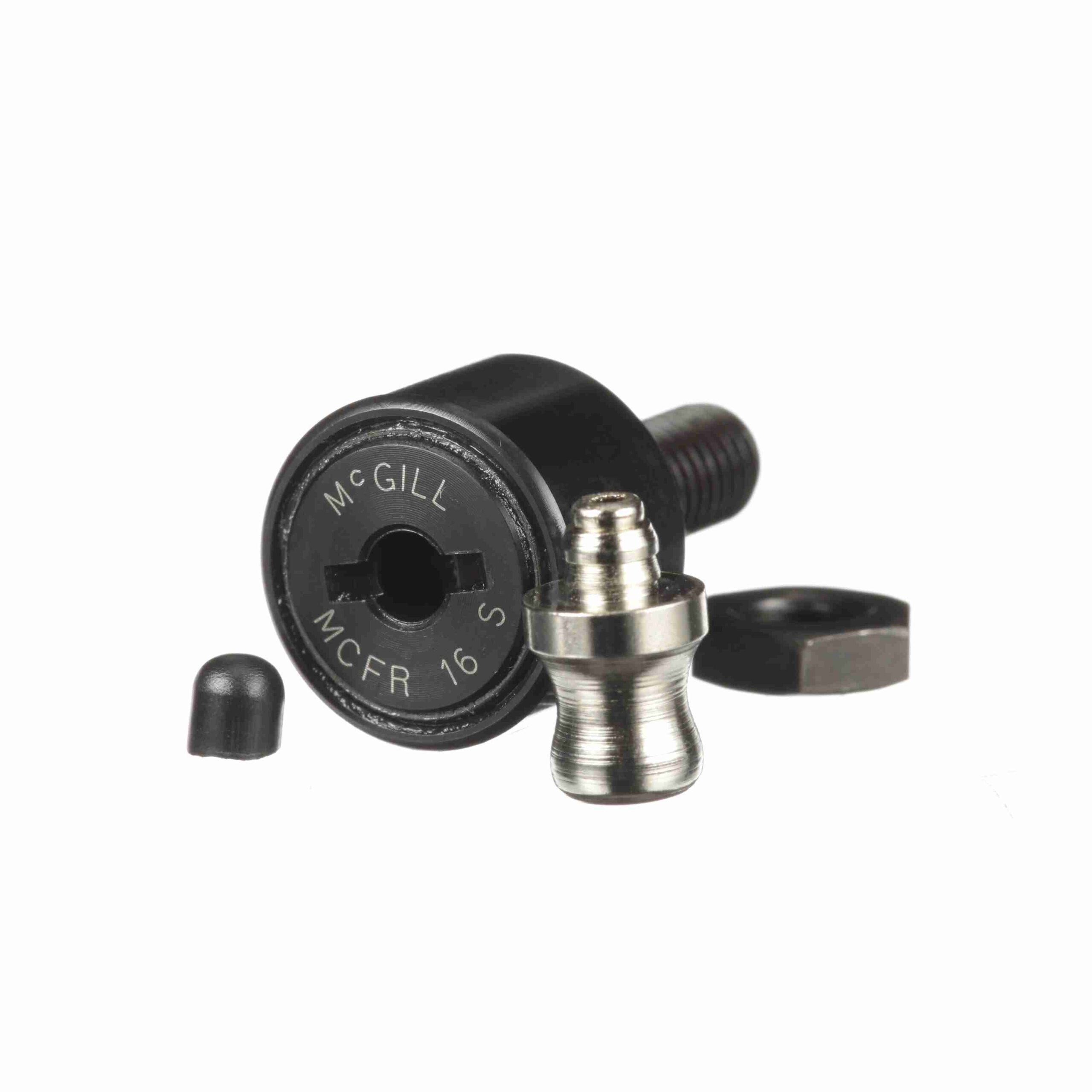

MCFRE 16 S
McGill CAMROL® Crowned Metric Cam Follower – Stud Mount Roller – Screwdriver Slot – Sealed – MCFRE 16 S
$48.55
Out of stock
Out of stock
| Sealing: | Sealed | Dynamic Track Roller Load Rating (N): | 3, 430 N |
|---|---|---|---|
| Rolling Element: | Needle Roller - Caged | Limiting Speed: | 20 |
| Dynamic Radial Rating: | 771 | Adjustment: | Eccentric Bushing |
| Series: | Metric CAMROL® | O.D. Configuration: | Crowned |
| Hex/Slot: | Screwdriver Slot | Material: | Bearing Steel, Black Oxide Finish |
| Industry Standard: | DIN / JIS | Static Track Roller Load Rating: | 2 |
| Roller Shape: | Crowned | Tolerance Class: | P0 Equivalent |
| Static Load Rating: | 2 | Stud Type: | Standard Stud with Eccentric Bushing |
| Platform: | CAMROL® | Ability to Relubricate: | Yes |
| Dynamic Load Rating (N): | 4, 120 N | Clamping Torque (Nm): | 3 N·m |
| UPC: | 726166014940 | Weight: | 0.04 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | China |
