- Metric stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Asian dimensional standard
- Jam nuts and lube fitting included
MCF 40A SBX

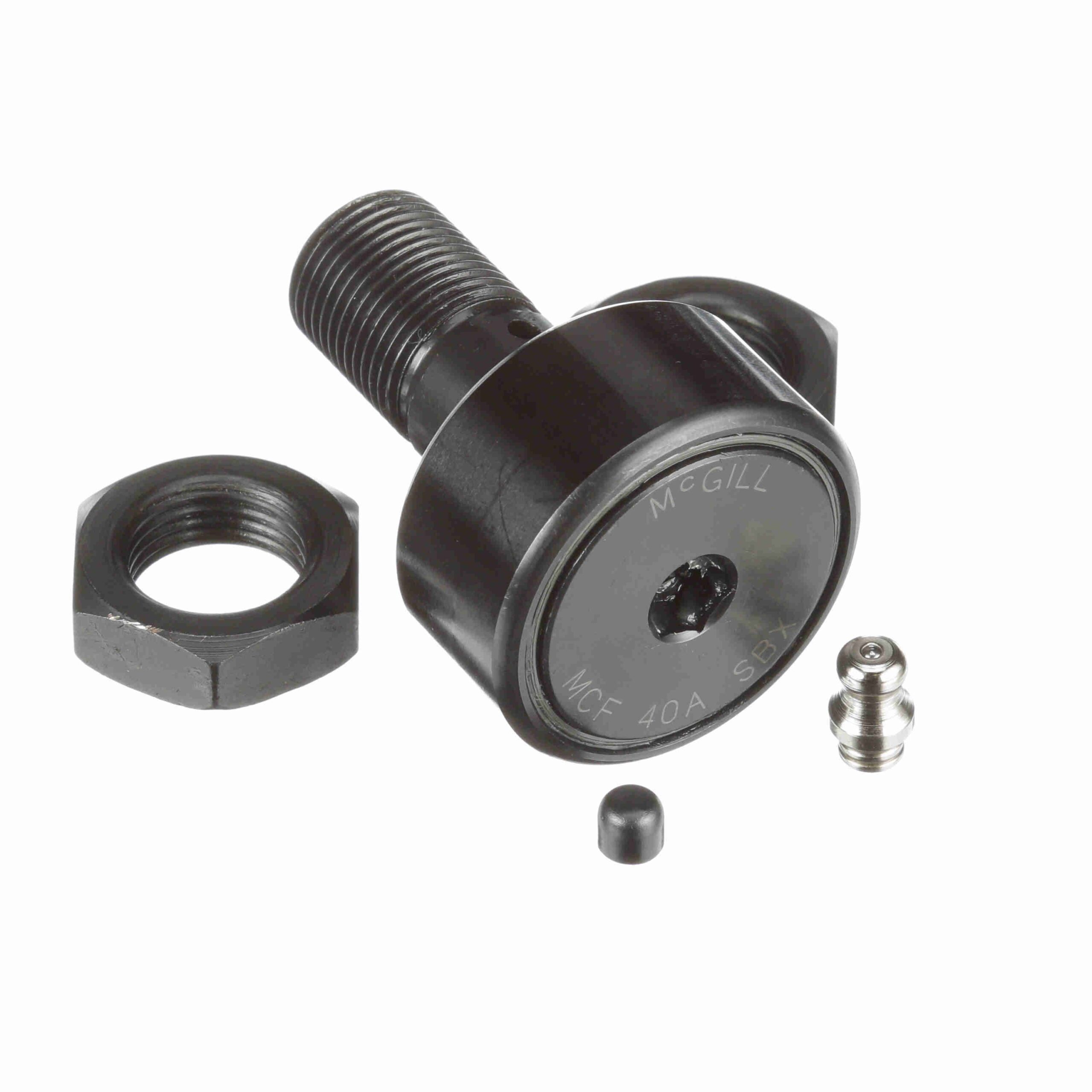

McGill CAMROL® Cylindrical Metric Cam Follower – Stud Mount Roller – Hex Hole – Sealed – MCF 40A SBX
$48.14
Out of stock
Out of stock
| O.D. Configuration: | Cylindrical | Sealing: | Sealed |
|---|---|---|---|
| Hex/Slot: | Hex Hole | Rolling Element: | Needle Roller - Full Complement |
| Dynamic Radial Rating: | 4 | Dynamic Track Roller Load Rating (N): | 19, 420 N |
| Series: | Metric CAMROL® | Limiting Speed: | 3 |
| Adjustment: | None | Material: | Bearing Steel, Black Oxide Finish |
| Tolerance Class: | P0 Equivalent | Roller Shape: | Cylindrical |
| Platform: | CAMROL® | Industry Standard: | JIS |
| Static Track Roller Load Rating: | 32 | Static Load Rating: | 7 |
| Stud Type: | Standard Stud | Dynamic Load Rating (N): | 23, 240 N |
| Clamping Torque (Nm): | 118 N·m | Ability to Relubricate: | Yes |
| UPC: | 726166021214 | Weight: | 1.08 LB |
| Packaged Length: | 1.9 Inches | Packaged Width: | 1.7 Inches |
| Packaged Height: | 2.5 Inches |
