- Metric stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Jam nuts and lube fitting included
MCF 40 SBX

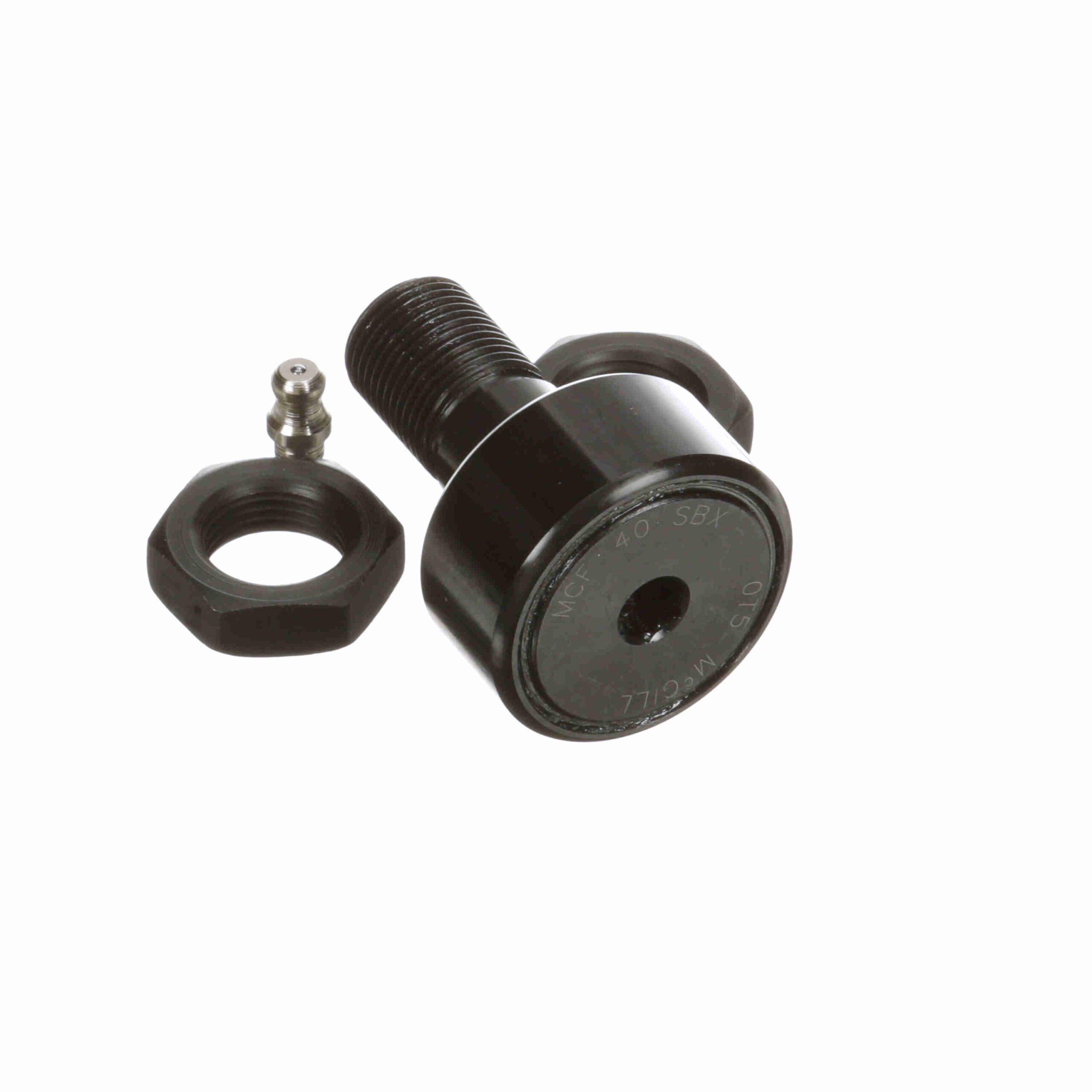

McGill CAMROL® Cylindrical Metric Cam Follower – Stud Mount Roller – Hex Hole – Sealed – MCF 40 SBX
$137.97
Availability: 16 in stock
Availability: 16 in stock
| Adjustment: | None | Series: | Metric CAMROL® |
|---|---|---|---|
| Rolling Element: | Needle Roller - Full Complement | Dynamic Track Roller Load Rating (N): | 19, 420 N |
| Hex/Slot: | Hex Hole | O.D. Configuration: | Cylindrical |
| Limiting Speed: | 3 | Dynamic Radial Rating: | 4 |
| Sealing: | Sealed | Material: | Bearing Steel, Black Oxide Finish |
| Tolerance Class: | P0 Equivalent | Platform: | CAMROL® |
| Stud Type: | Standard Stud | Roller Shape: | Cylindrical |
| Industry Standard: | DIN | Static Track Roller Load Rating: | 32 |
| Static Load Rating: | 32 | Ability to Relubricate: | Yes |
| Clamping Torque (Nm): | 85 N·m | Dynamic Load Rating (N): | 23, 240 N |
| UPC: | 726166021344 | Weight: | 0.67 LB |
| Packaged Length: | 2.5 Inches | Packaged Width: | 1.7 Inches |
| Packaged Height: | 1.8 Inches | Country of Origin: | China |
