- Stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal

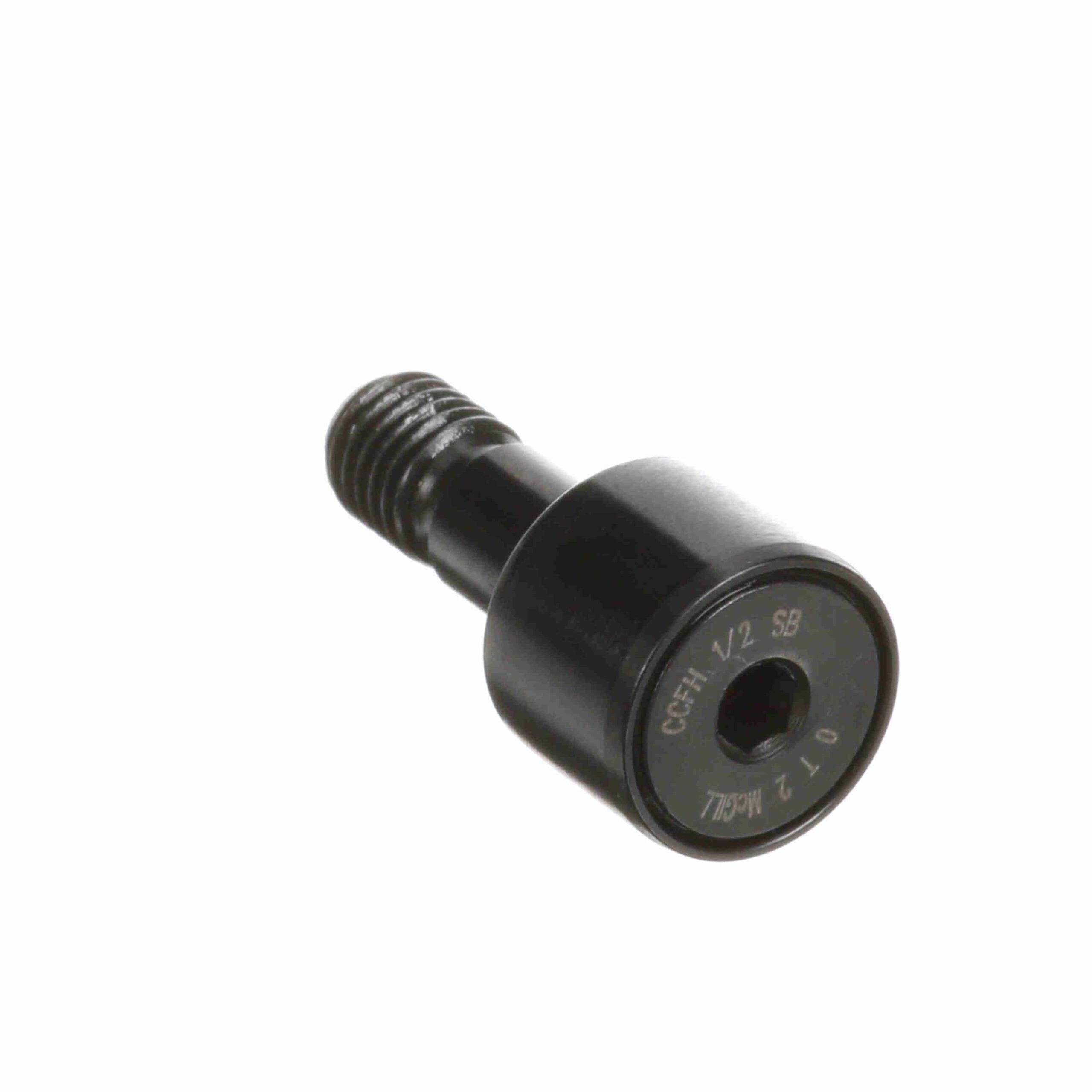

CCFH 1/2 SB
McGill Heavy Stud CAMROL® Crowned Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CCFH 1/2 SB
$31.32
Out of stock
Out of stock
| Adjustment: | None | Sealing: | Sealed |
|---|---|---|---|
| Series: | Inch CAMROL® | Limiting Speed: | 12 |
| O.D. Configuration: | Crowned | Hex/Slot: | Hex Hole |
| Rolling Element: | Needle Roller - Full Complement | Material: | Bearing Steel, Black Oxide Finish |
| Platform: | CAMROL® | Roller Shape: | Crowned |
| Static Load Rating: | 2 | Stud Type: | Heavy Stud |
| Tolerance Class: | P0 Equivalent | Dynamic Load Rating (lb): | 680 lb |
| Lubrication Hole Location: | Stud side | Clamping Torque (in-lbf): | 35 lbs |
| Ability to Relubricate: | No | UPC: | 726166030339 |
| Weight: | 0.04 LB | Packaged Length: | 1.75 Inches |
| Packaged Width: | 1 Inches | Packaged Height: | 1.75 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
Related products
CF 1 3/4 SB
$42.20Add to cartMcGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CF 1 3/4 SB

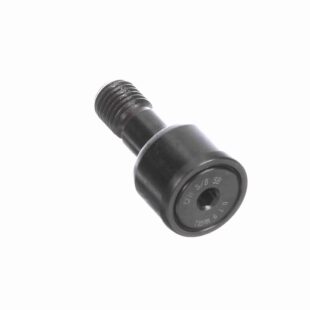

CFH 5/8 SB
