- Metric stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- Jam nuts and lube fitting included
MCF 30 BX

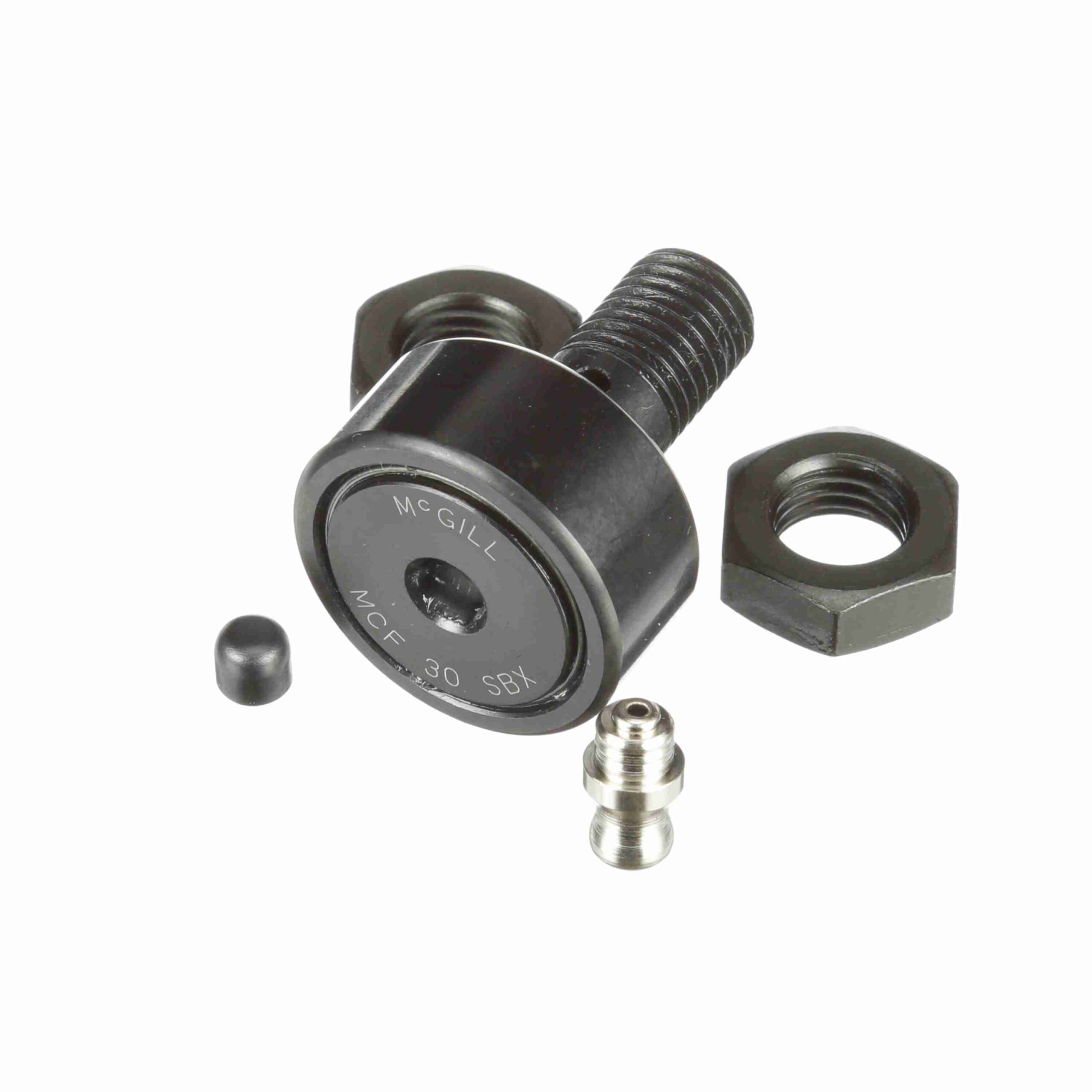

McGill CAMROL® Cylindrical Metric Cam Follower – Stud Mount Roller – Hex Hole – MCF 30 BX
$32.20
Out of stock
Out of stock
| Adjustment: | None | Limiting Speed: | 6 |
|---|---|---|---|
| Dynamic Track Roller Load Rating (N): | 11, 080 N | Hex/Slot: | Hex Hole |
| Dynamic Radial Rating: | 2 | O.D. Configuration: | Cylindrical |
| Sealing: | Unsealed | Series: | Metric CAMROL® |
| Rolling Element: | Needle Roller - Full Complement | Material: | Bearing Steel, Black Oxide Finish |
| Static Track Roller Load Rating: | 15 | Industry Standard: | DIN / JIS |
| Roller Shape: | Cylindrical | Stud Type: | Standard Stud |
| Static Load Rating: | 15 | Tolerance Class: | P0 Equivalent |
| Platform: | CAMROL® | Ability to Relubricate: | Yes |
| Clamping Torque (Nm): | 22 N·m | Dynamic Load Rating (N): | 13, 240 N |
| UPC: | 726166018603 | Weight: | 0.26 LB |
| Packaged Length: | 1.65 Inches | Packaged Width: | 1.38 Inches |
| Packaged Height: | 1.38 Inches | Country of Origin: | China |
