- Metric stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Asian dimensional standard
- Jam nuts and lube fitting included
MCF 40A SB

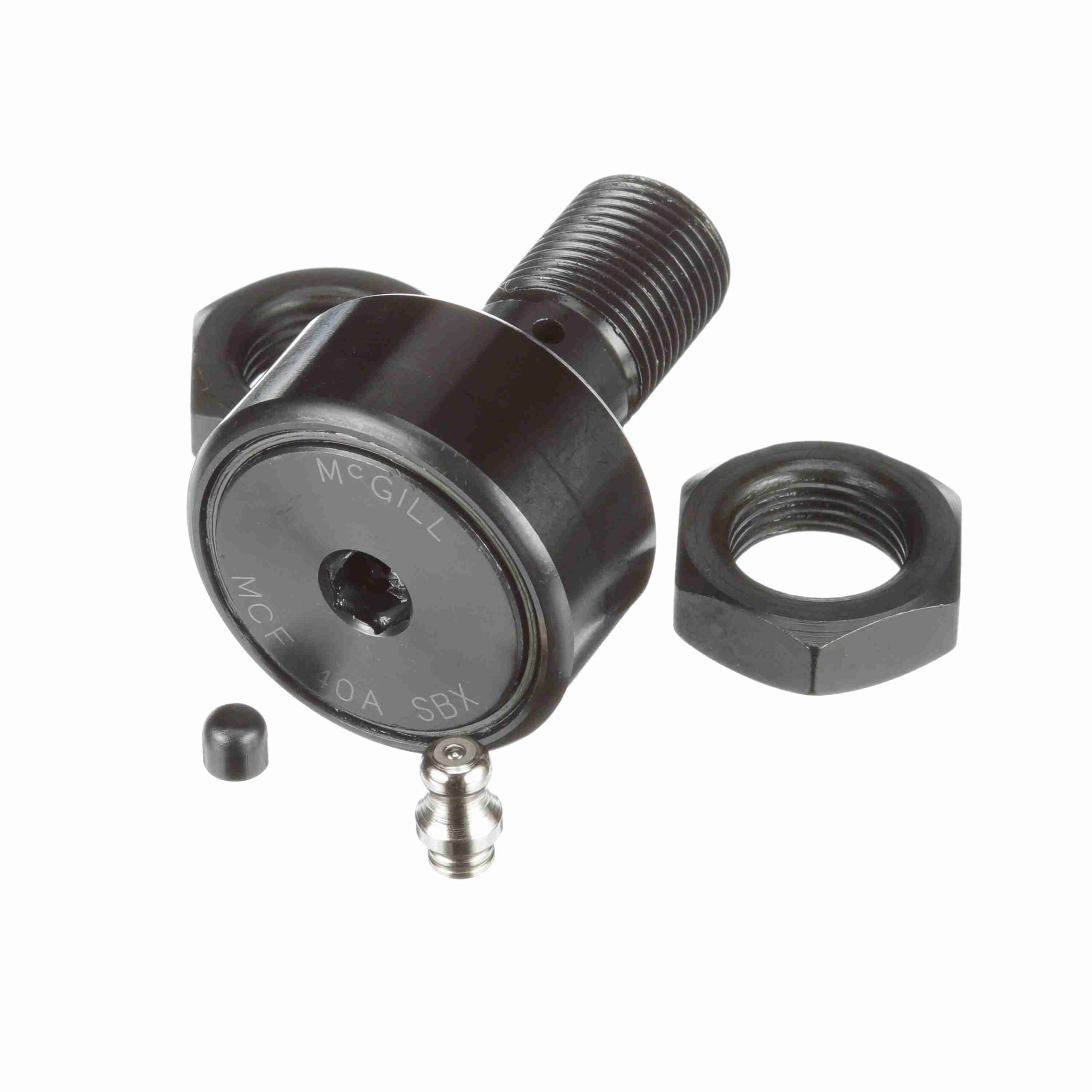

McGill CAMROL® Crowned Metric Cam Follower – Stud Mount Roller – Hex Hole – Sealed – MCF 40A SB
$47.27
Out of stock
Out of stock
| Dynamic Radial Rating: | 4 | Hex/Slot: | Hex Hole |
|---|---|---|---|
| O.D. Configuration: | Crowned | Sealing: | Sealed |
| Limiting Speed: | 3 | Dynamic Track Roller Load Rating (N): | 19, 420 N |
| Rolling Element: | Needle Roller - Full Complement | Adjustment: | None |
| Series: | Metric CAMROL® | Material: | Bearing Steel, Black Oxide Finish |
| Industry Standard: | JIS | Roller Shape: | Crowned |
| Platform: | CAMROL® | Tolerance Class: | P0 Equivalent |
| Static Load Rating: | 32 | Stud Type: | Standard Stud |
| Static Track Roller Load Rating: | 32 | Dynamic Load Rating (N): | 23, 240 N |
| Clamping Torque (Nm): | 85 N·m | Ability to Relubricate: | Yes |
| UPC: | 726166021177 | Weight: | 0.71 LB |
| Packaged Length: | 2.48 Inches | Packaged Width: | 1.73 Inches |
| Packaged Height: | 1.73 Inches | Country of Origin: | China |
