- Metric stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Jam nuts and lube fitting included
MCF 26 SBX

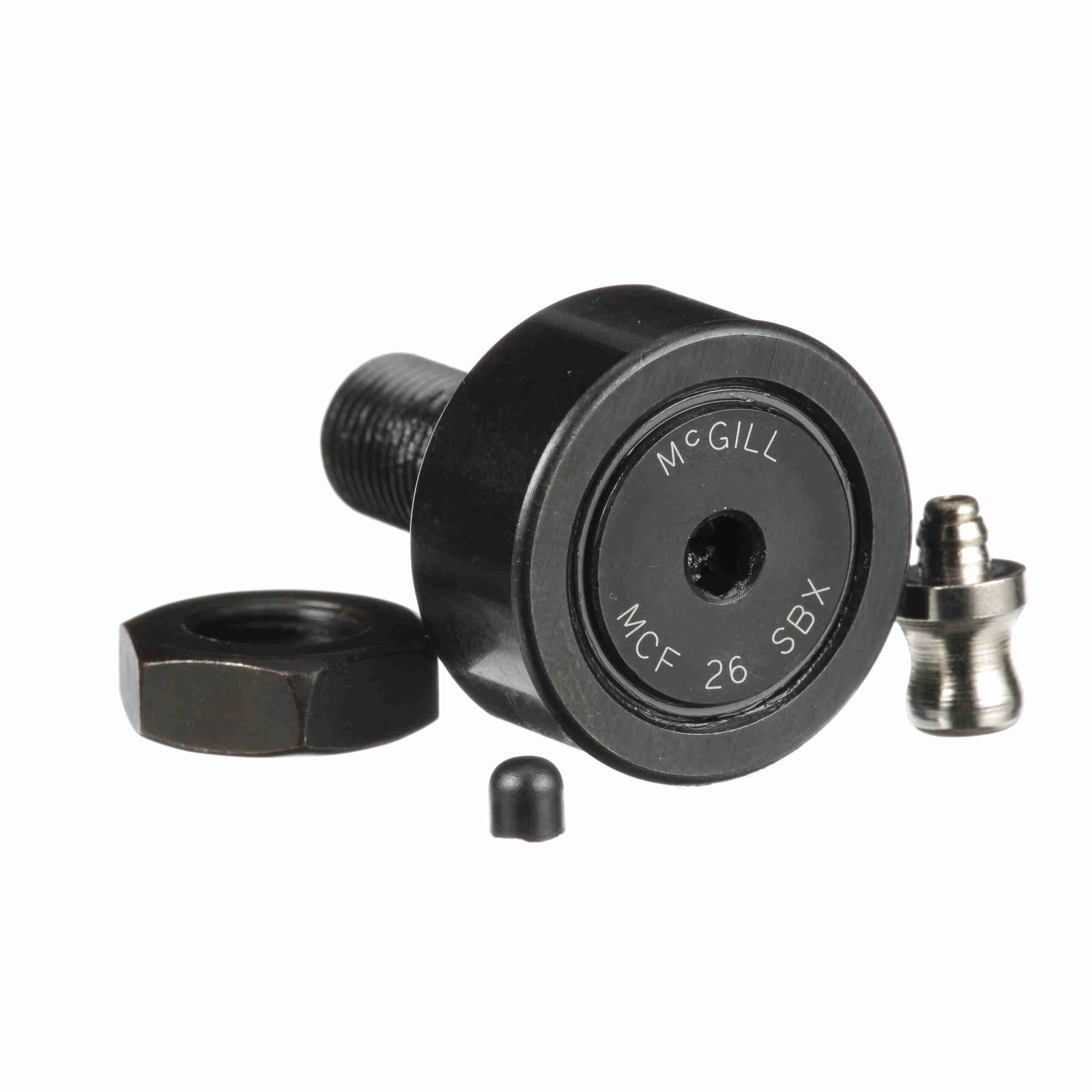

McGill CAMROL® Cylindrical Metric Cam Follower – Stud Mount Roller – Hex Hole – Sealed – MCF 26 SBX
$87.36
Availability: 141 in stock
Availability: 141 in stock
| O.D. Configuration: | Cylindrical | Rolling Element: | Needle Roller - Full Complement |
|---|---|---|---|
| Hex/Slot: | Hex Hole | Dynamic Radial Rating: | 2 |
| Dynamic Track Roller Load Rating (N): | 7, 850 N | Series: | Metric CAMROL® |
| Adjustment: | None | Limiting Speed: | 9 |
| Sealing: | Sealed | Material: | Bearing Steel, Black Oxide Finish |
| Stud Type: | Standard Stud | Roller Shape: | Cylindrical |
| Static Load Rating: | 10 | Tolerance Class: | P0 Equivalent |
| Industry Standard: | DIN | Platform: | CAMROL® |
| Static Track Roller Load Rating: | 10 | Dynamic Load Rating (N): | 9, 410 N |
| Ability to Relubricate: | Yes | Clamping Torque (Nm): | 15 N·m |
| UPC: | 726166017644 | Weight: | 0.18 LB |
| Packaged Length: | 1.4 Inches | Packaged Width: | 1.3 Inches |
| Packaged Height: | 1.6 Inches | Country of Origin: | China |
