- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Eccentric configuration
CFE 2 1/2 SB

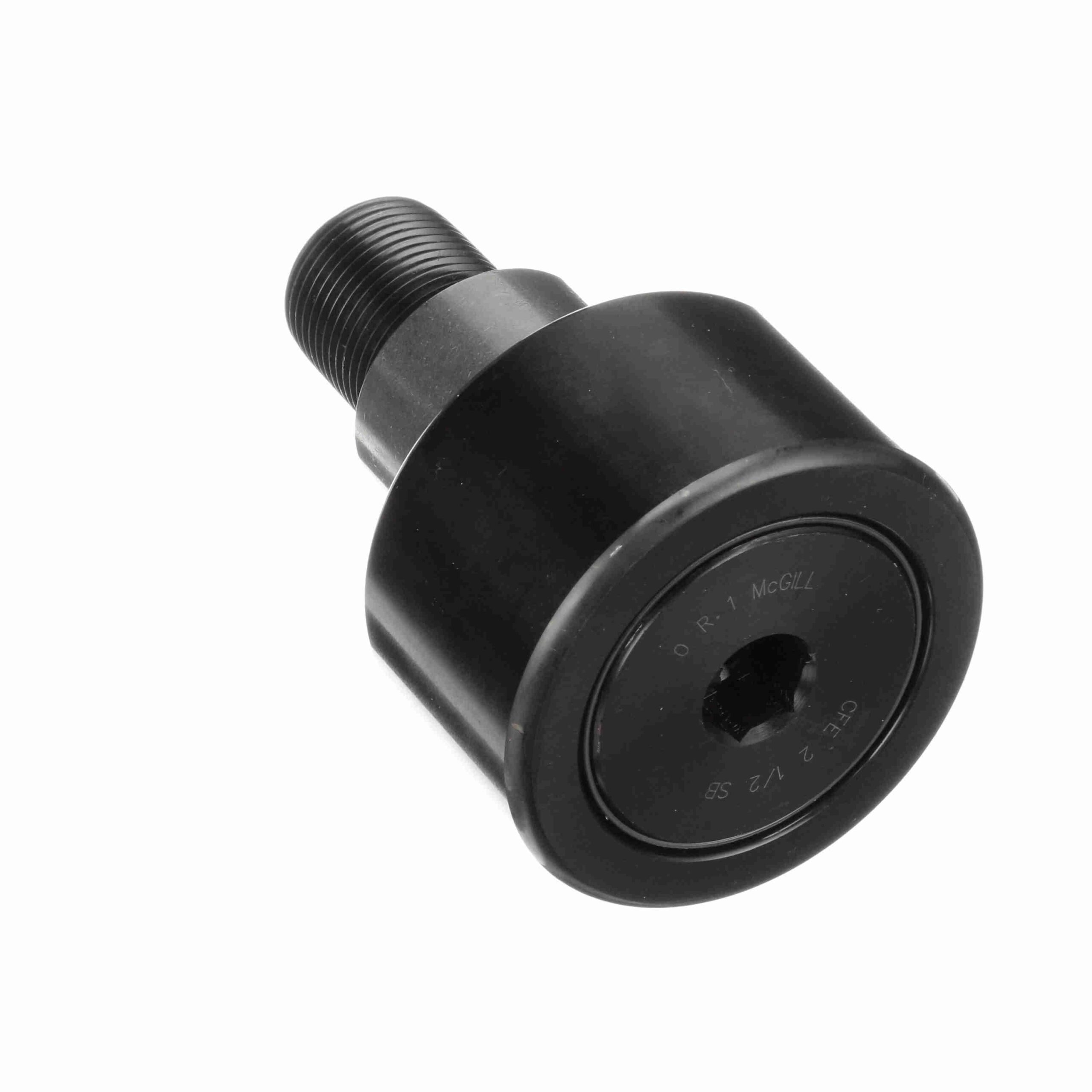

McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CFE 2 1/2 SB
$113.31
Availability: 41 in stock
Availability: 41 in stock
| Limiting Speed: | 1 | Hex/Slot: | Hex Hole |
|---|---|---|---|
| Adjustment: | Eccentric Bushing | Rolling Element: | Needle Roller - Full Complement |
| Series: | Inch CAMROL® | O.D. Configuration: | Cylindrical |
| Sealing: | Sealed | Dynamic Radial Rating: | 12 |
| Material: | Bearing Steel, Black Oxide Finish | Platform: | CAMROL® |
| Roller Shape: | Cylindrical | Stud Type: | Standard Stud with Eccentric Bushing |
| Tolerance Class: | P0 Equivalent | Dynamic Load Rating (lb): | 11, 720 lb |
| Static Load Rating: | 10 | Ability to Relubricate: | Yes |
| Clamping Torque (in-lbf): | 2, 250 lbs | UPC: | 726166038373 |
| Weight: | 3.02 LB | Packaged Length: | 2.81 Inches |
| Packaged Width: | 2.81 Inches | Packaged Height: | 3.93 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
