- Metric stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Jam nuts and lube fitting included
MCF 26 SB

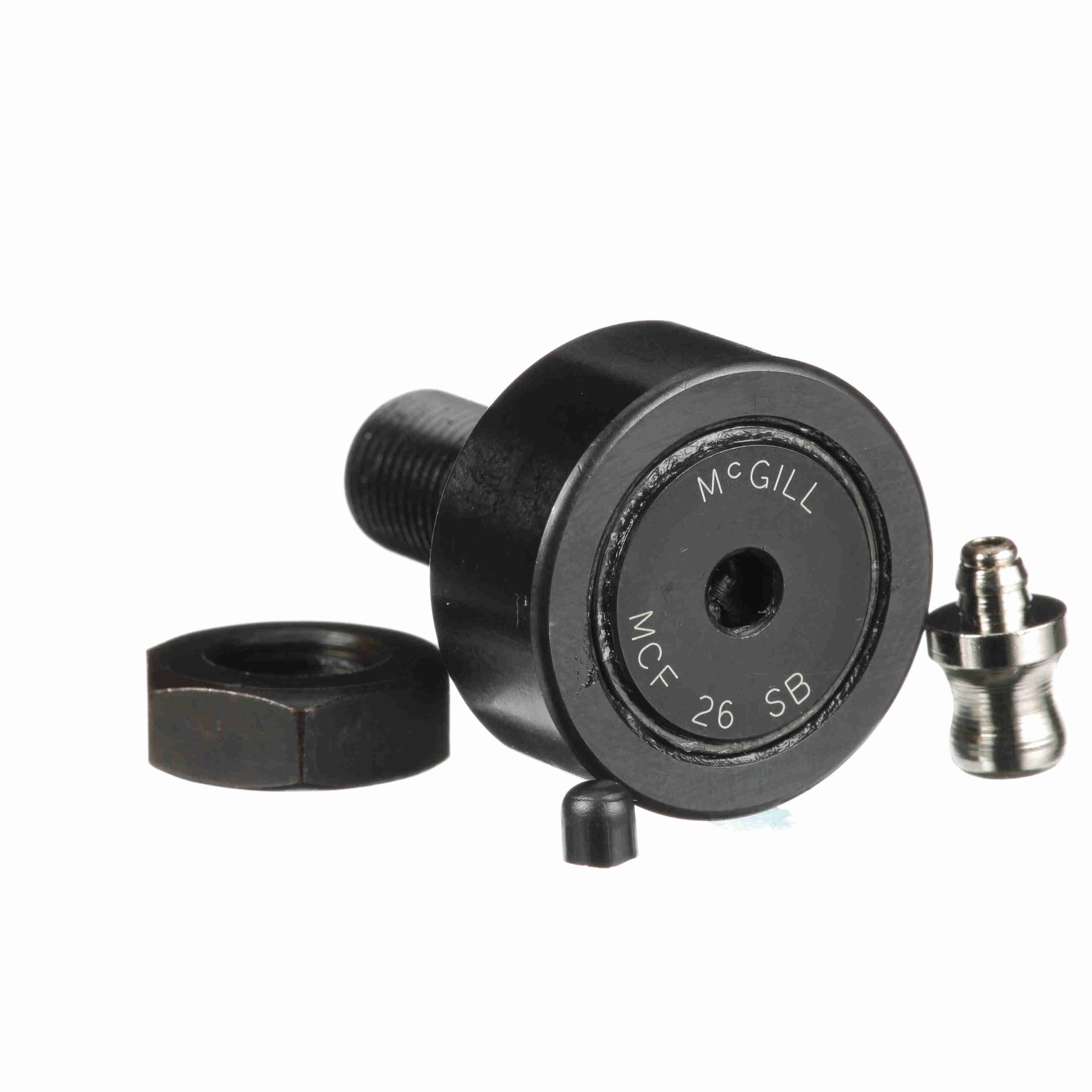

McGill CAMROL® Crowned Metric Cam Follower – Stud Mount Roller – Hex Hole – Sealed – MCF 26 SB
$82.21
Availability: 36 in stock
Availability: 36 in stock
| Dynamic Track Roller Load Rating (N): | 7, 850 N | Limiting Speed: | 9 |
|---|---|---|---|
| Sealing: | Sealed | Dynamic Radial Rating: | 2 |
| Hex/Slot: | Hex Hole | Rolling Element: | Needle Roller - Full Complement |
| Series: | Metric CAMROL® | O.D. Configuration: | Crowned |
| Adjustment: | None | Material: | Bearing Steel, Black Oxide Finish |
| Stud Type: | Standard Stud | Static Load Rating: | 10 |
| Industry Standard: | DIN | Roller Shape: | Crowned |
| Platform: | CAMROL® | Tolerance Class: | P0 Equivalent |
| Static Track Roller Load Rating: | 10 | Clamping Torque (Nm): | 15 N·m |
| Dynamic Load Rating (N): | 9, 410 N | Ability to Relubricate: | Yes |
| UPC: | 726166017613 | Weight: | 0.18 LB |
| Packaged Length: | 1.4 Inches | Packaged Width: | 1.2 Inches |
| Packaged Height: | 1.6 Inches | Country of Origin: | China |
