- Metric stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Slot hole
- Asian dimensional standard
- Jam nuts and lube fitting included
MCF 22A

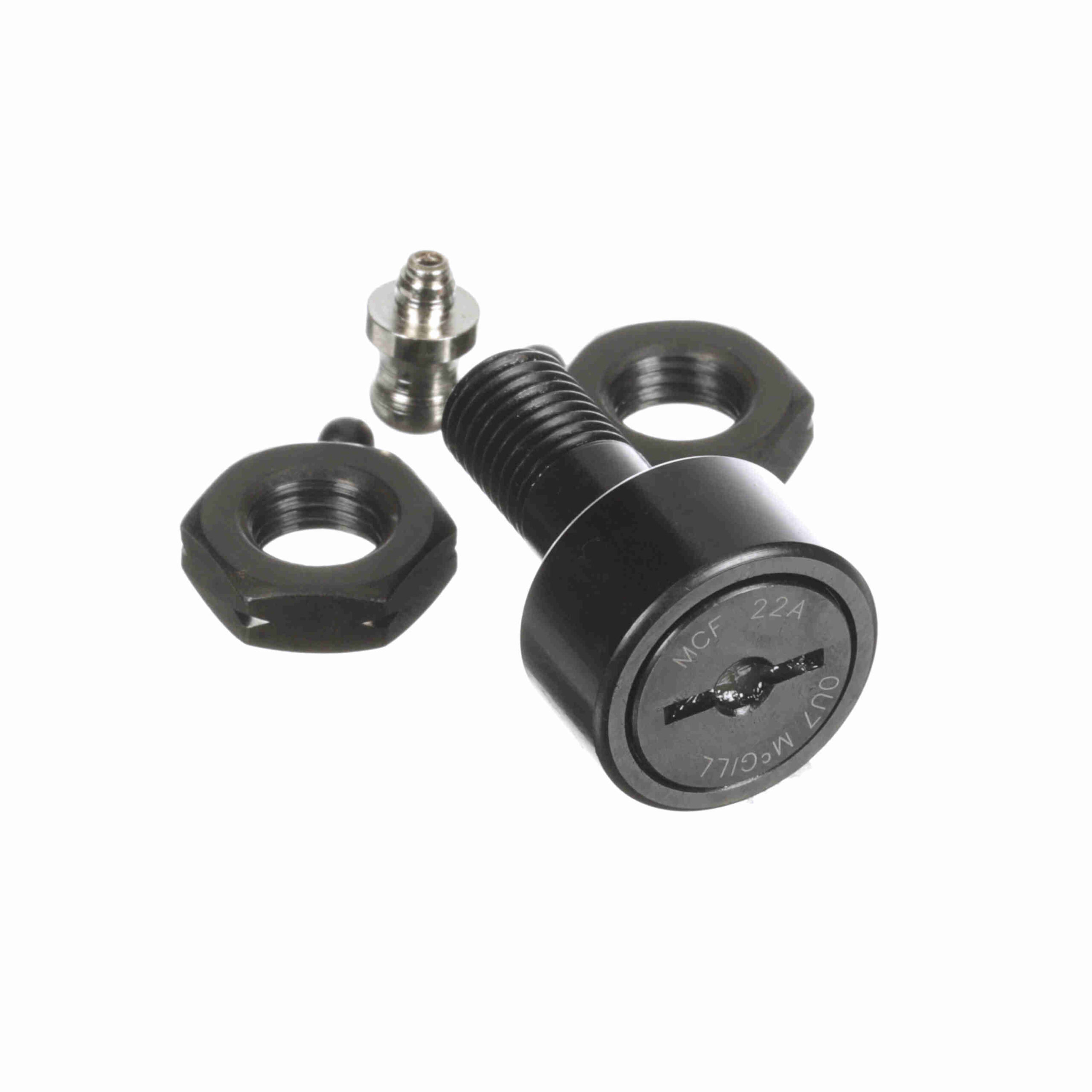

McGill CAMROL® Crowned Metric Cam Follower – Stud Mount Roller – Screwdriver Slot – MCF 22A
$151.03
Out of stock
Out of stock
| Sealing: | Unsealed | Limiting Speed: | 9 |
|---|---|---|---|
| Adjustment: | None | O.D. Configuration: | Crowned |
| Hex/Slot: | Screwdriver Slot | Dynamic Track Roller Load Rating (N): | 7, 850 N |
| Rolling Element: | Needle Roller - Full Complement | Dynamic Radial Rating: | 2 |
| Series: | Metric CAMROL® | Material: | Bearing Steel, Black Oxide Finish |
| Tolerance Class: | P0 Equivalent | Stud Type: | Standard Stud |
| Industry Standard: | JIS | Static Load Rating: | 10 |
| Static Track Roller Load Rating: | 10 | Roller Shape: | Crowned |
| Platform: | CAMROL® | Ability to Relubricate: | Yes |
| Clamping Torque (Nm): | 15 N·m | Dynamic Load Rating (N): | 9, 410 N |
| UPC: | 726166015961 | Weight: | 0.14 LB |
| Packaged Length: | 1.65 Inches | Packaged Width: | 1.38 Inches |
| Packaged Height: | 1.38 Inches | Country of Origin: | China |
