- Metric stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Slot hole
- Jam nuts and lube fitting included
MCF 22

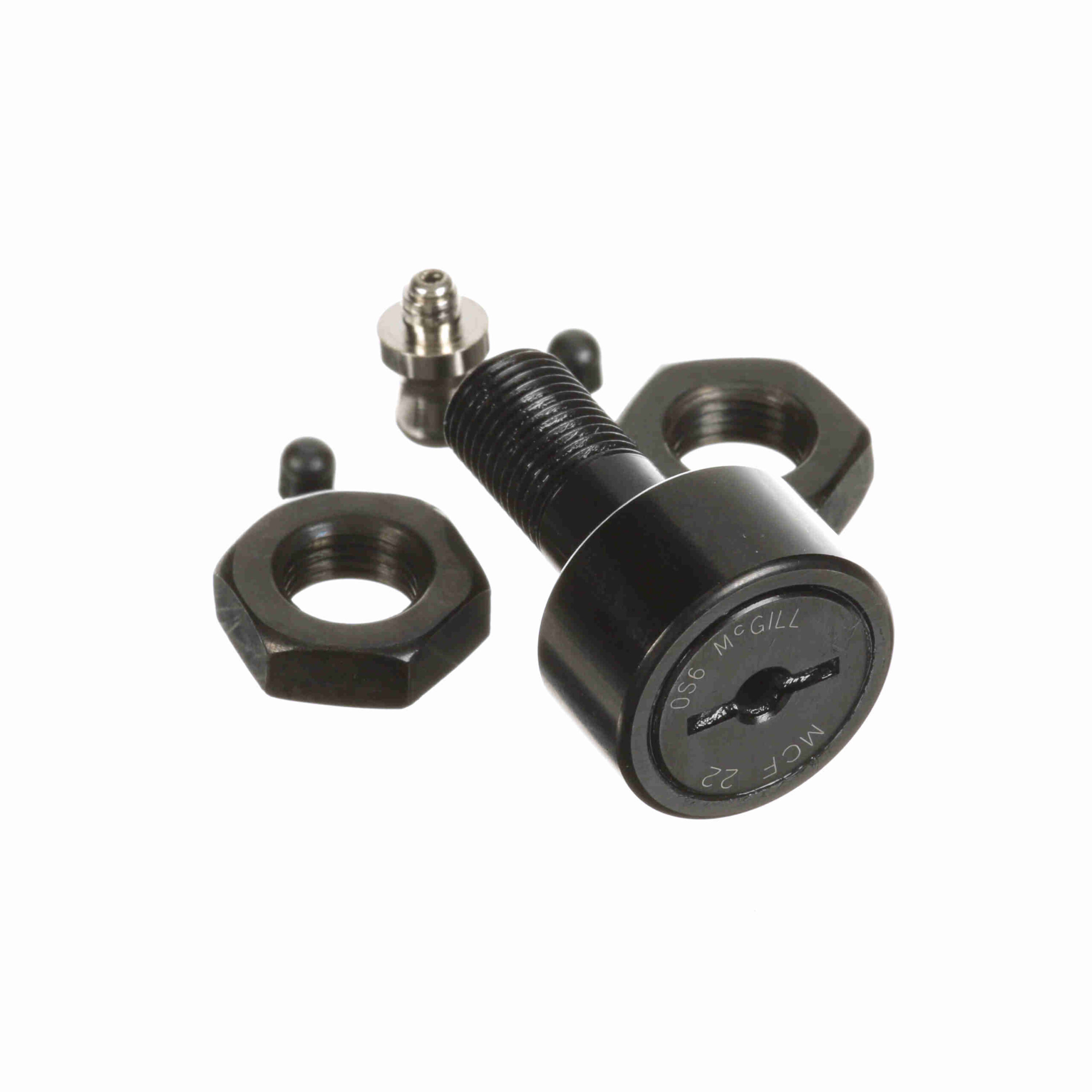

McGill CAMROL® Crowned Metric Cam Follower – Stud Mount Roller – Screwdriver Slot – MCF 22
$29.02
Out of stock
Out of stock
| O.D. Configuration: | Crowned | Limiting Speed: | 9 |
|---|---|---|---|
| Dynamic Radial Rating: | 2 | Series: | Metric CAMROL® |
| Rolling Element: | Needle Roller - Full Complement | Sealing: | Unsealed |
| Hex/Slot: | Screwdriver Slot | Dynamic Track Roller Load Rating (N): | 7, 850 N |
| Adjustment: | None | Material: | Bearing Steel, Black Oxide Finish |
| Tolerance Class: | P0 Equivalent | Static Load Rating: | 10 |
| Static Track Roller Load Rating: | 10 | Industry Standard: | DIN |
| Platform: | CAMROL® | Stud Type: | Standard Stud |
| Roller Shape: | Crowned | Dynamic Load Rating (N): | 9, 410 N |
| Ability to Relubricate: | Yes | Clamping Torque (Nm): | 15 N·m |
| UPC: | 726166015824 | Weight: | 0.56 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.3 Inches |
| Packaged Height: | 1.6 Inches | Country of Origin: | China |
