- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
M 4 15/16

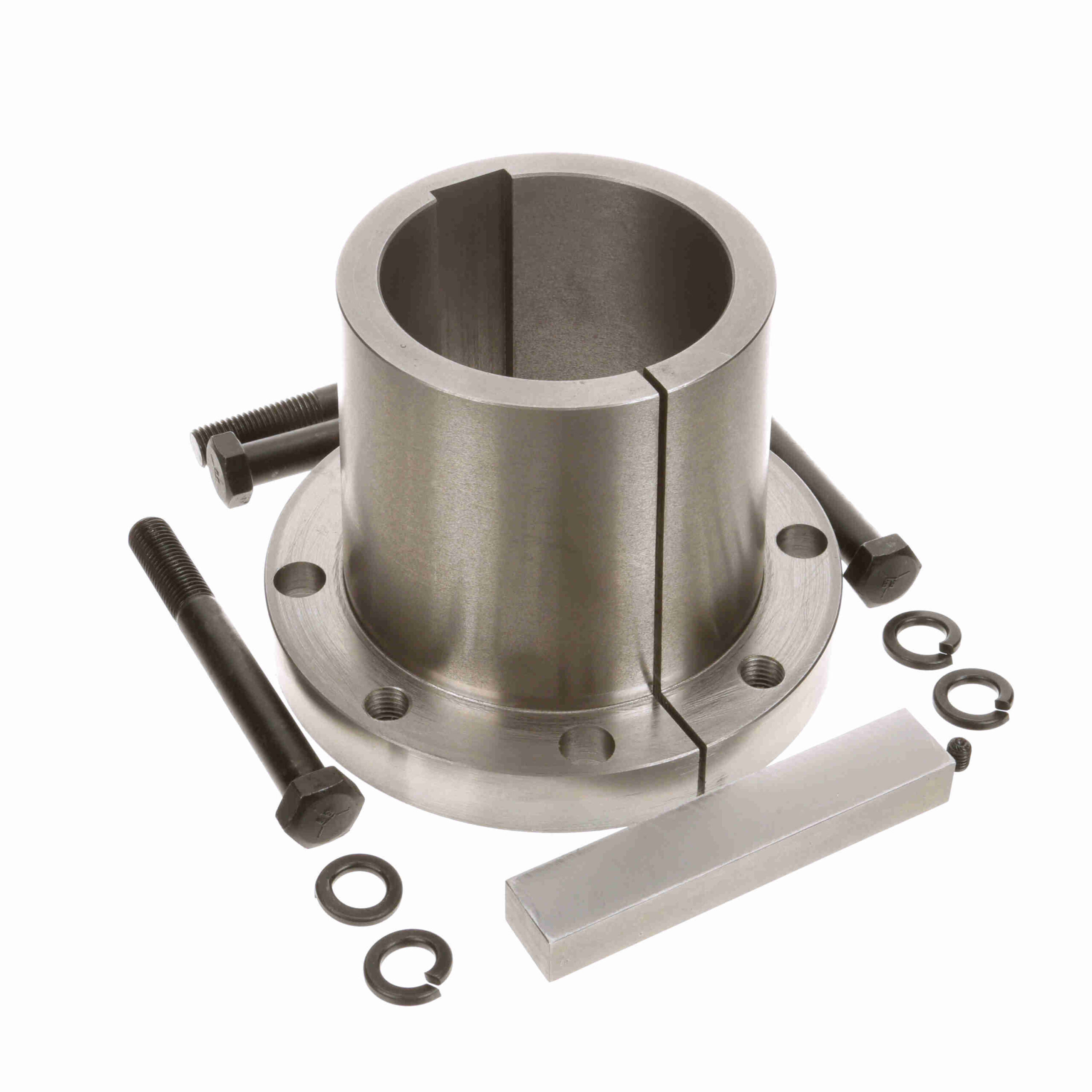

Browning Q-D Bushing – Inch Bore Type – M 4 15/16
$1,674.37
Out of stock
Out of stock
| Model Name: | QD-M_Bushing_Master | Compatible Bore Size [Max] (in): | 4.9375 in |
|---|---|---|---|
| Mounting Type: | Conventional | Bushing Type: | M |
| Total Length (in): | 6.76 in | Outside Diameter (in): | 9 in |
| Bore Type: | Inch | Cap Screws (Bolt Circle): | 7.875 |
| Cap Screws (Size): | 3/4-10 x 6 3/4 | Wrench Torque (ft.-lbs.): | 225 |
| Torque Capacity (in-lb): | 85, 000 | Keyway: | 1 1/4 x 5/8 |
| Cap Screws (No.): | 4 | Length Through Bore (in): | 6.76 in |
| Product Type: | Q-D Bushing | Bore Size (in): | 4.9375 in |
| Flange Thickness: | 1.25 in | Barrel Length: | 5.51 in |
| Material: | Gray Iron - G3037 | Barrel Diameter: | 6.5 in |
| UPC: | 662289321940 | Weight: | 32.20 LB |
| Packaged Length: | 10.13 Inches | Packaged Width: | 10.13 Inches |
| Packaged Height: | 5.13 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
