- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- This general bearing clutch can be utilized with both oil and grease lubrication. Self contained ball bearing and cam clutch
- KK Clutch is available in several configurations with different sealing options and inner and outer keyway options.
KK40-2K

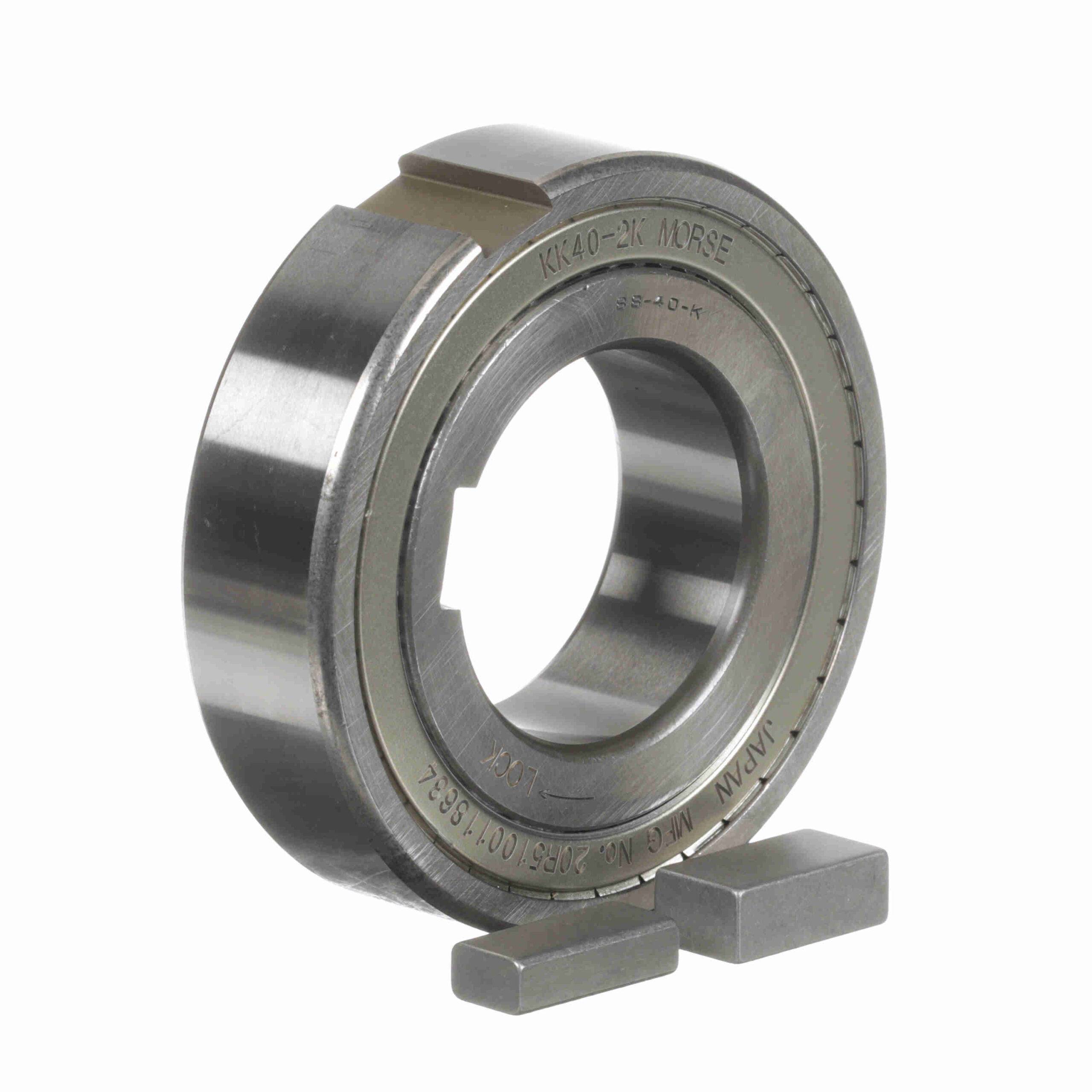

Morse KK Series CAM Clutch – KK40-2K
$831.25
Out of stock
Out of stock
| Overall Width (in): | 0.866 in | Dynamic Radial Load Rating (lb): | 3529.7 |
|---|---|---|---|
| Static Radial Load Rating (lb): | 2630.3 | RPM Max. -inner Race: | 1, 800 |
| Type: | CAM Clutches | Mounting Shaft Diameter: | 1.5743/1.5733 |
| Overall Diameter (in): | 3.15 in | Overall Diameter (mm): | 80 mm |
| RPM Max. - Outer Race: | 900 | Corner Radius: | 1.1 |
| Mounting Housing Diameter: | 3.1494/3.1486 | Add'l Bearing Support Requirement: | No |
| Bore Size (mm): | 40 mm | Overrunning Clutch: | Yes |
| Product Type: | KK Series | Rated Torque Capacity (ft.-lbs.): | 191.8 |
| Indexing Clutch: | Yes | Backstopping Clutch: | Yes |
| UPC: | 662288927600 | Weight: | 1.32 LB |
| HTC: | 8483.60.4040 | Country of Origin: | Japan |
