- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- This general bearing clutch can be utilized with both oil and grease lubrication. Self contained ball bearing and cam clutch
- KK Clutch is available in several configurations with different sealing options and inner and outer keyway options.
KK30-2GD

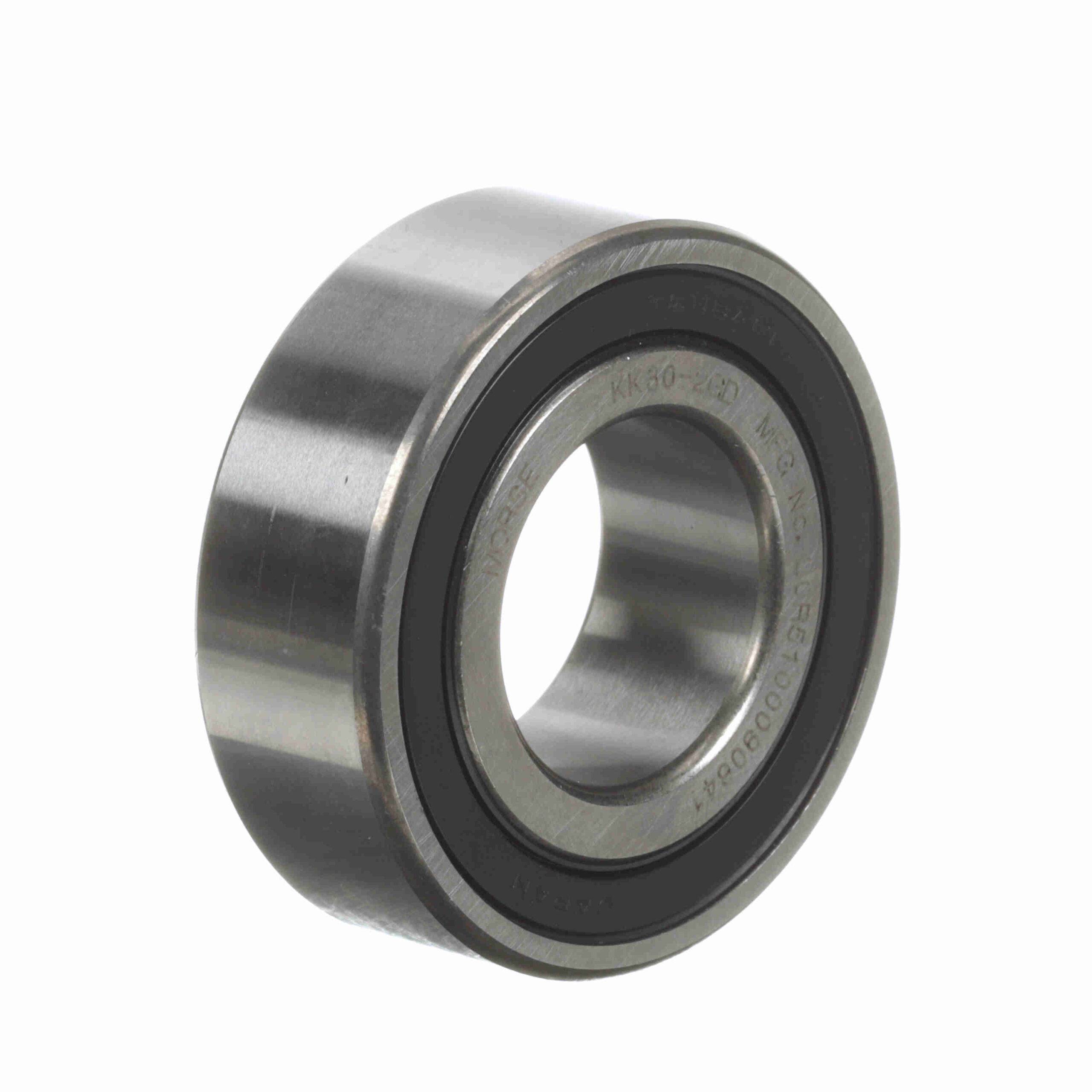

Morse KK Series CAM Clutch – KK30-2GD
$640.26
Out of stock
Out of stock
| Mounting Housing Diameter: | 2.4403/2.4396 | Static Radial Load Rating (lb): | 1776 |
|---|---|---|---|
| Corner Radius: | 1 | Type: | CAM Clutches |
| Overall Diameter (in): | 2.441 in | Overall Diameter (mm): | 62 mm |
| RPM Max. - Outer Race: | 1100 | Overall Width (in): | 0.827 in |
| Mounting Shaft Diameter: | 1.1822/1.1817 | Dynamic Radial Load Rating (lb): | 2675.2 |
| RPM Max. -inner Race: | 2, 000 | Add'l Bearing Support Requirement: | No |
| Backstopping Clutch: | Yes | Bore Size (mm): | 30 mm |
| Rated Torque Capacity (ft.-lbs.): | 103.3 | Indexing Clutch: | Yes |
| Overrunning Clutch: | Yes | Product Type: | KK Series |
| UPC: | 662288927525 | Weight: | 0.68 LB |
| Packaged Length: | 3.20 Inches | Packaged Width: | 3.10 Inches |
| Packaged Height: | 1.10 Inches | HTC: | 8483.60.4040 |
| Country of Origin: | Japan |
Related products
25D PR REPL DISC

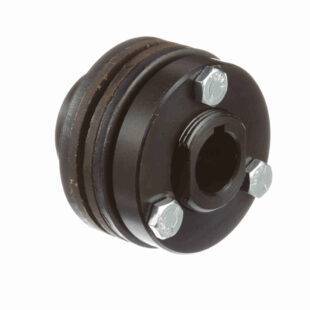

$59.03More InfoBrowning Torque Overload Accessory- T25L Series Disc – 25D PR REPL DISC
