- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- This general bearing clutch can be utilized with both oil and grease lubrication. Self contained ball bearing and cam clutch
- KK Clutch is available in several configurations with different sealing options and inner and outer keyway options.
KK20
Morse KK Series CAM Clutch – KK20
| RPM Max. -inner Race: | 3, 000 | Mounting Housing Diameter: | 1.8499/1.8493 |
|---|---|---|---|
| Overall Diameter (in): | 1.85 in | Overall Diameter (mm): | 47 mm |
| Static Radial Load Rating (lb): | 1101.6 | Corner Radius: | 1 |
| RPM Max. - Outer Race: | 1600 | Mounting Shaft Diameter: | 0.7885/0.788 |
| Type: | CAM Clutches | Lubrication Type: | Grease |
| Overall Width (in): | 0.551 in | Dynamic Radial Load Rating (lb): | 1910.9 |
| Add'l Bearing Support Requirement: | No | Product Type: | KK Series |
| Rated Torque Capacity (ft.-lbs.): | 45 | Overrunning Clutch: | Yes |
| Bore Size (mm): | 20 mm | Backstopping Clutch: | Yes |
| Indexing Clutch: | Yes | UPC: | 662288927396 |
| Weight: | 0.26 LB | HTC: | 8483.60.4040 |
| Country of Origin: | Japan |
Related products
250A TL FACING (2) PB
More InfoMorse Torque Overload Accessory- 250A Series Friction Facing – 250A TL FACING (2) PB

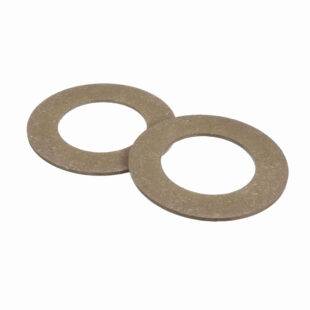

500A TL FACING (2) PB
