- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- This general bearing clutch can be utilized with both oil and grease lubrication. Self contained ball bearing and cam clutch
- KK Clutch is available in several configurations with different sealing options and inner and outer keyway options.
KK17-2GD 1K

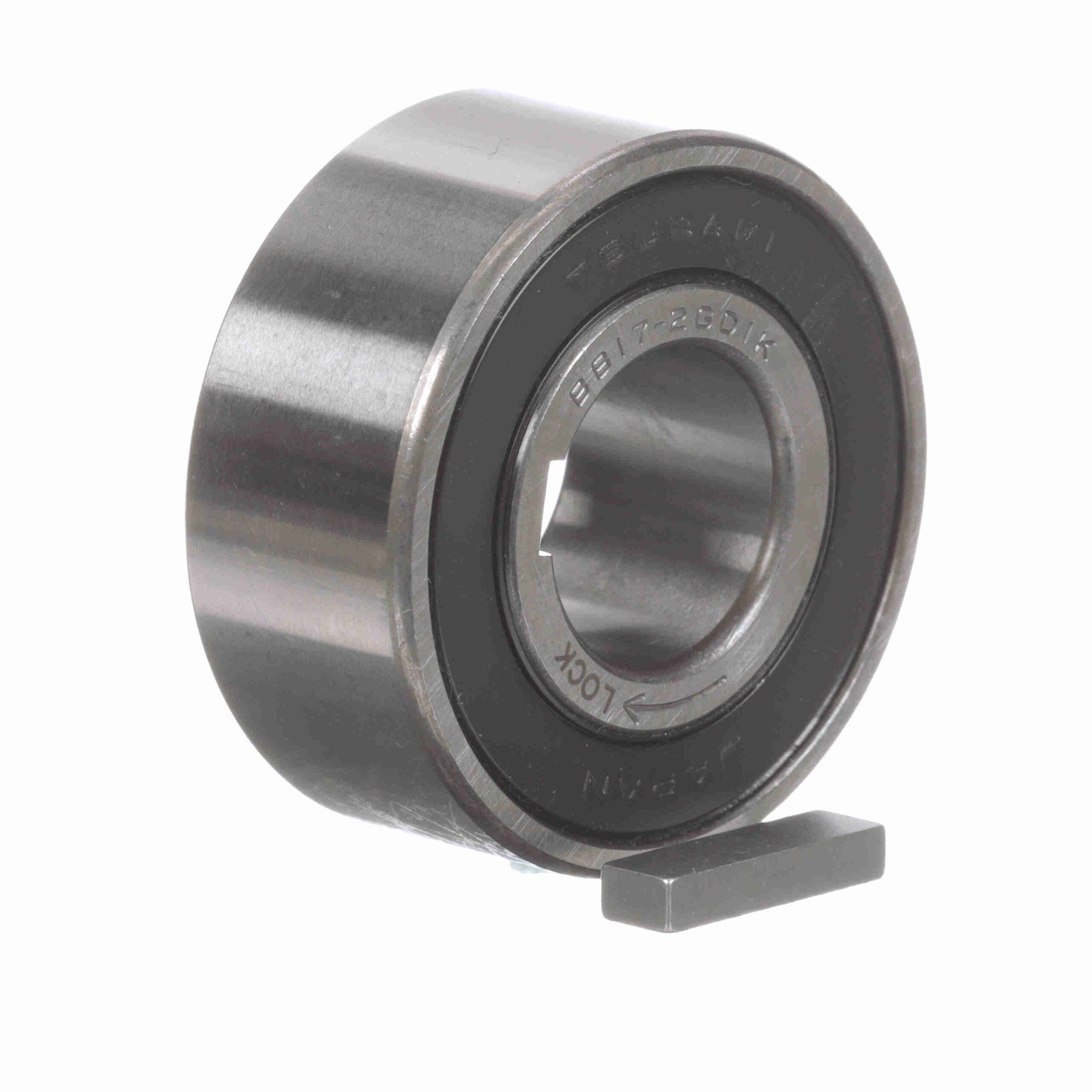

Morse KK Series CAM Clutch – KK17-2GD 1K
$465.23
Out of stock
Out of stock
| RPM Max. - Outer Race: | 1900 | RPM Max. -inner Race: | 3, 500 |
|---|---|---|---|
| Overall Diameter (in): | 1.575 in | Overall Diameter (mm): | 40 mm |
| Overall Width (in): | 0.669 in | Lubrication Type: | Grease |
| Mounting Housing Diameter: | 1.5743/1.5737 | Type: | CAM Clutches |
| Static Radial Load Rating (lb): | 831.8 | Dynamic Radial Load Rating (lb): | 1573.7 |
| Corner Radius: | 0.6 | Mounting Shaft Diameter: | 0.669/0.6682 |
| Add'l Bearing Support Requirement: | No | Indexing Clutch: | Yes |
| Rated Torque Capacity (ft.-lbs.): | 31.7 | Product Type: | KK Series |
| Backstopping Clutch: | Yes | Overrunning Clutch: | Yes |
| Bore Size (mm): | 17 mm | UPC: | 662288927389 |
| Weight: | 0.22 LB | HTC: | 8483.60.4040 |
| Country of Origin: | Japan |
