- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
JA 15/16

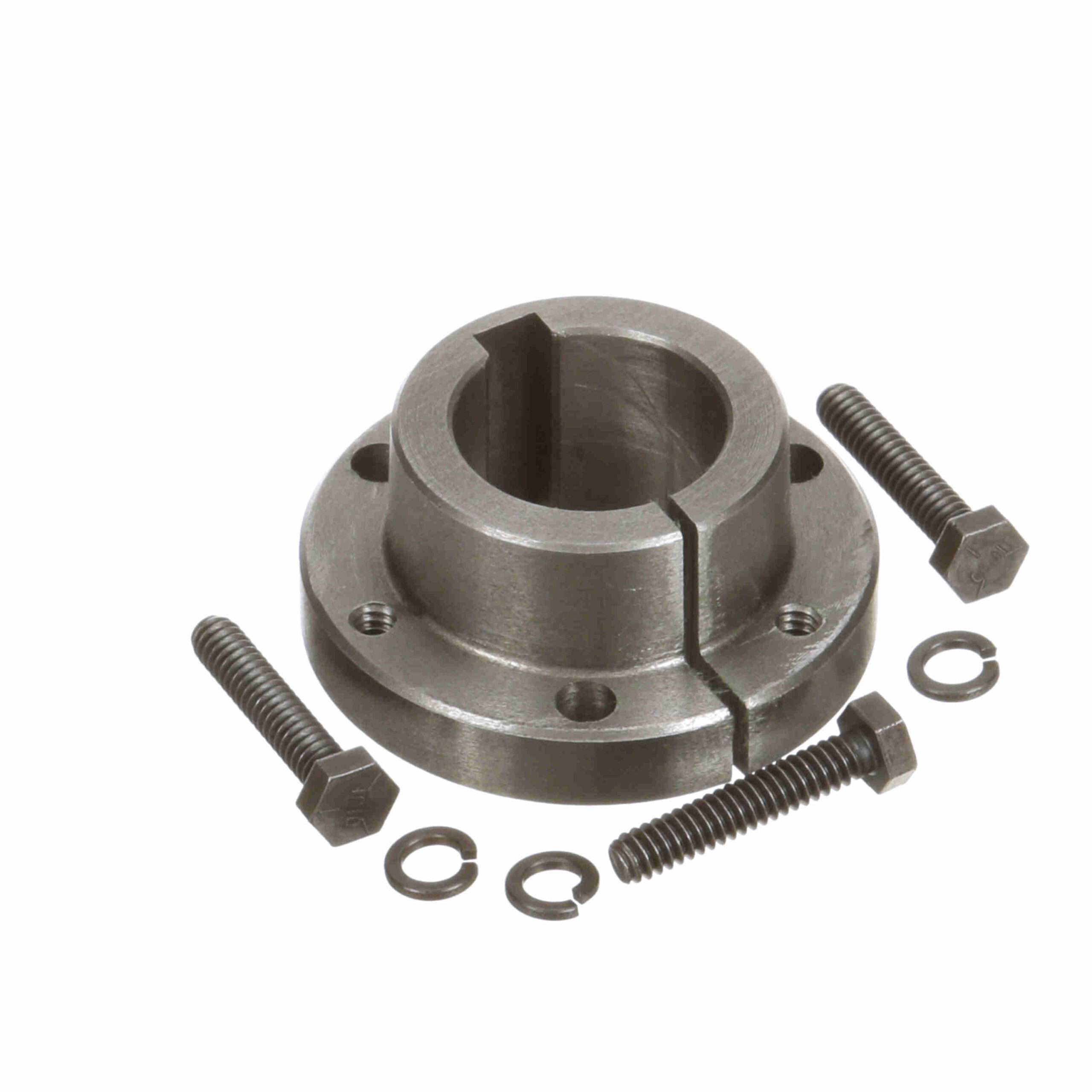

Browning Q-D Bushing – Inch Bore Type – JA 15/16
$81.21
Out of stock
Out of stock
| Product Type: | Q-D Bushing | Bushing Type: | JA |
|---|---|---|---|
| Model Name: | QD-JA_Bushing_Master | Outside Diameter (in): | 2 in |
| Length Through Bore (in): | 0.89 in | Cap Screws (Bolt Circle): | 1.65625 |
| Mounting Type: | Conventional | Compatible Bore Size [Max] (in): | 0.9375 in |
| Cap Screws (Size): | 10-24 x 1 | Total Length (in): | 0.89 in |
| Cap Screws (No.): | 3 | Wrench Torque (ft.-lbs.): | 6 |
| Bore Type: | Inch | Torque Capacity (in-lb): | 1, 000 |
| Keyway: | 1/4 x 1/8 | Bore Size (in): | 0.9375 in |
| Barrel Length: | 0.56 in | Flange Thickness: | 0.33 in |
| Barrel Diameter: | 1.375 in | Material: | Steel |
| UPC: | 662289384495 | Weight: | 0.40 LB |
| Packaged Length: | 3.06 Inches | Packaged Width: | 3.06 Inches |
| Packaged Height: | 1.31 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
