- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
JA 1 1/4

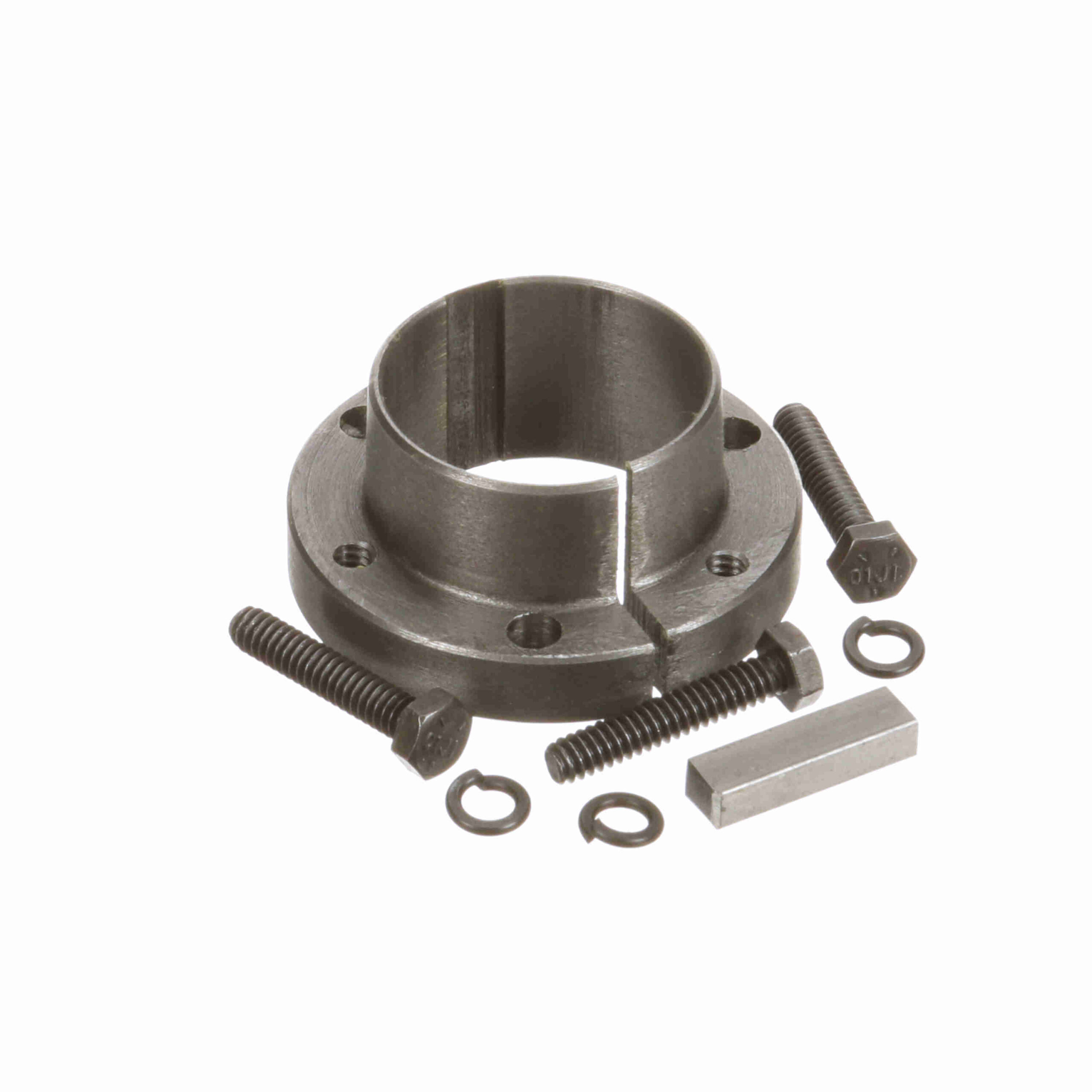

Browning Q-D Bushing – Inch Bore Type – JA 1 1/4
$60.92
Out of stock
Out of stock
| Length Through Bore (in): | 0.89 in | Outside Diameter (in): | 2 in |
|---|---|---|---|
| Product Type: | Q-D Bushing | Mounting Type: | Conventional |
| Bushing Type: | JA | Total Length (in): | 0.89 in |
| Bore Type: | Inch | Model Name: | QD-JA_Bushing_Master |
| Compatible Bore Size [Max] (in): | 1.25 in | Cap Screws (Size): | 10-24 x 1 |
| Keyway: | 1/4 x 1/8 | Torque Capacity (in-lb): | 1, 000 |
| Cap Screws (No.): | 3 | Cap Screws (Bolt Circle): | 1.65625 |
| Wrench Torque (ft.-lbs.): | 6 | Bore Size (in): | 1.25 in |
| Flange Thickness: | 0.33 in | Barrel Diameter: | 1.375 in |
| Material: | Steel | Barrel Length: | 0.56 in |
| UPC: | 662289414505 | Weight: | 0.27 LB |
| Packaged Length: | 3.2 Inches | Packaged Width: | 3.4 Inches |
| Packaged Height: | 1.5 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
