- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
J 3 7/16

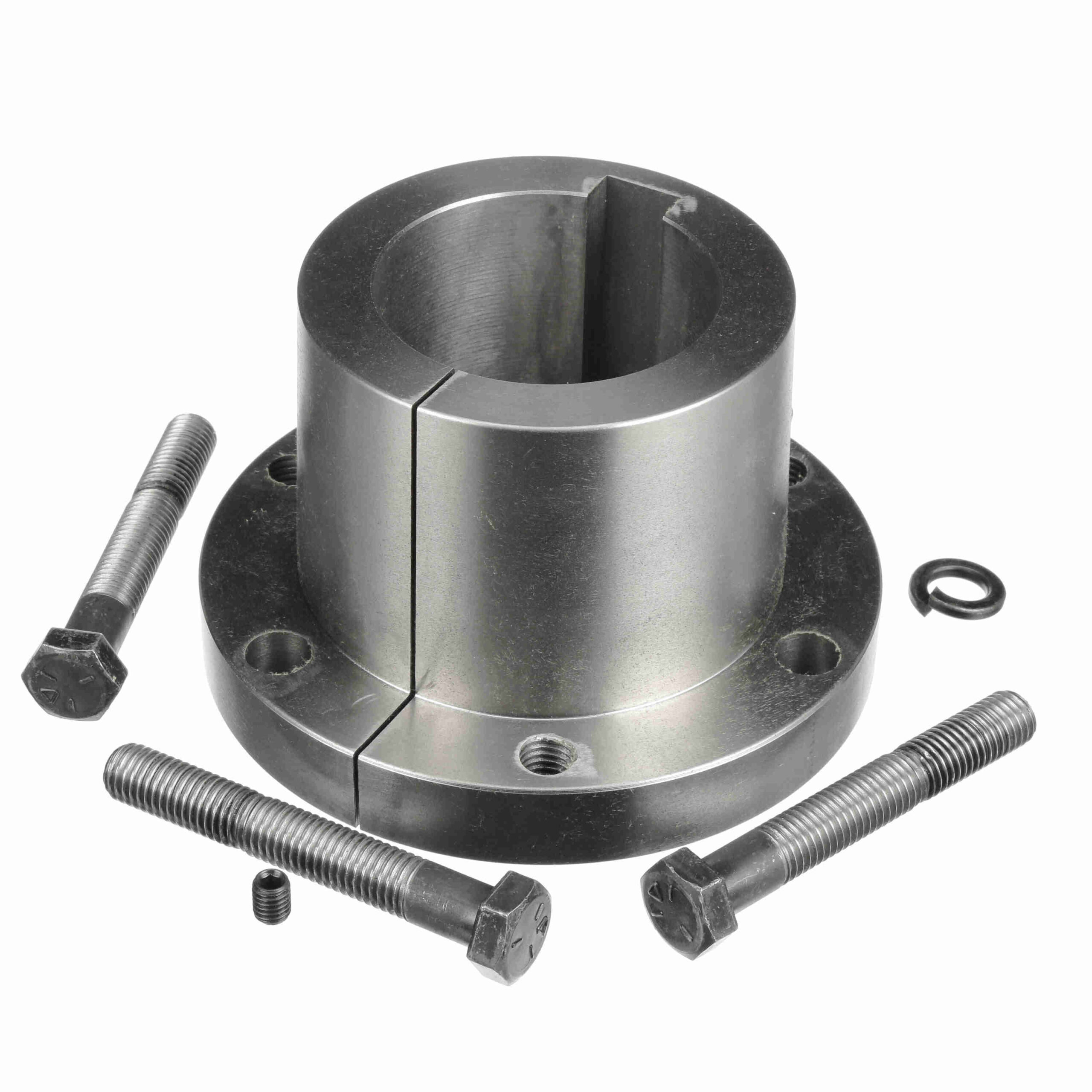

Browning Q-D Bushing – Inch Bore Type – J 3 7/16
$454.80
Out of stock
Out of stock
| Product Type: | Q-D Bushing | Wrench Torque (ft.-lbs.): | 135 |
|---|---|---|---|
| Model Name: | QD-J_Bushing_Master | Cap Screws (No.): | 3 |
| Total Length (in): | 4.51 in | Mounting Type: | Conventional |
| Bushing Type: | J | Cap Screws (Size): | 5/8-11 x 4 1/2 |
| Outside Diameter (in): | 7.25 in | Bore Type: | Inch |
| Compatible Bore Size [Max] (in): | 3.4375 in | Torque Capacity (in-lb): | 45, 000 |
| Length Through Bore (in): | 4.51 in | Keyway: | 7/8 x 7/16 |
| Cap Screws (Bolt Circle): | 6.25 | Bore Size (in): | 3.4375 in |
| Flange Thickness: | 1 in | Material: | Gray Iron - G2998 |
| Barrel Diameter: | 5.1484 in | Barrel Length: | 3.51 in |
| UPC: | 662289370634 | Weight: | 18.81 LB |
| Packaged Length: | 8.4 Inches | Packaged Width: | 8.5 Inches |
| Packaged Height: | 5 Inches |
