- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
J 3 3/8

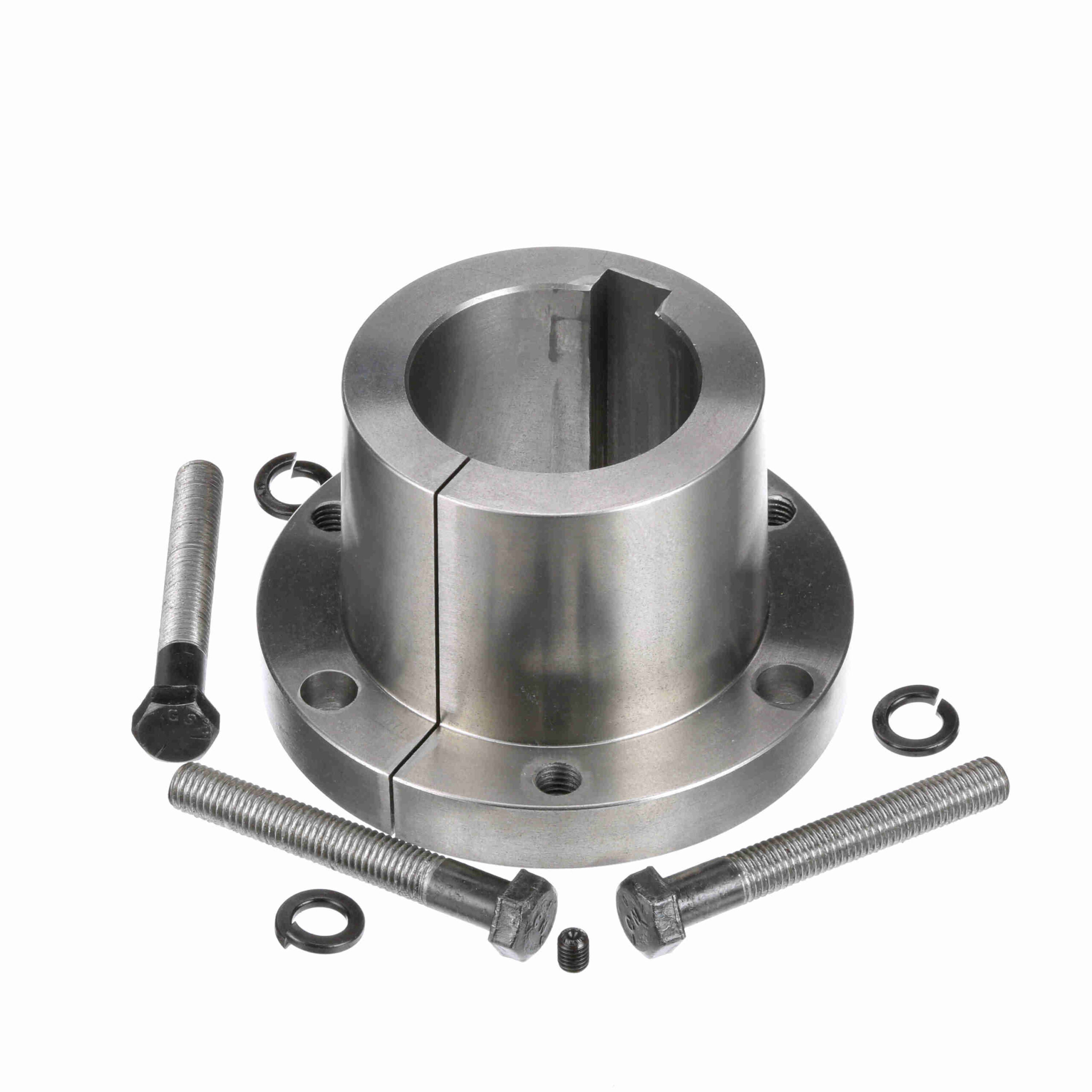

Browning Q-D Bushing – Inch Bore Type – J 3 3/8
$571.12
Out of stock
Out of stock
| Product Type: | Q-D Bushing | Total Length (in): | 4.51 in |
|---|---|---|---|
| Torque Capacity (in-lb): | 45, 000 | Compatible Bore Size [Max] (in): | 3.375 in |
| Mounting Type: | Conventional | Cap Screws (Size): | 5/8-11 x 4 1/2 |
| Keyway: | 7/8 x 7/16 | Bore Type: | Inch |
| Cap Screws (Bolt Circle): | 6.25 | Model Name: | QD-J_Bushing_Master |
| Bushing Type: | J | Length Through Bore (in): | 4.51 in |
| Wrench Torque (ft.-lbs.): | 135 | Outside Diameter (in): | 7.25 in |
| Cap Screws (No.): | 3 | Bore Size (in): | 3.375 in |
| Barrel Length: | 3.51 in | Barrel Diameter: | 5.1484 in |
| Material: | Gray Iron - G2995 | Flange Thickness: | 1 in |
| UPC: | 662289340682 | Weight: | 19.22 LB |
| Packaged Length: | 8.5 Inches | Packaged Width: | 8.5 Inches |
| Packaged Height: | 5 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
