- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
J 3 15/16

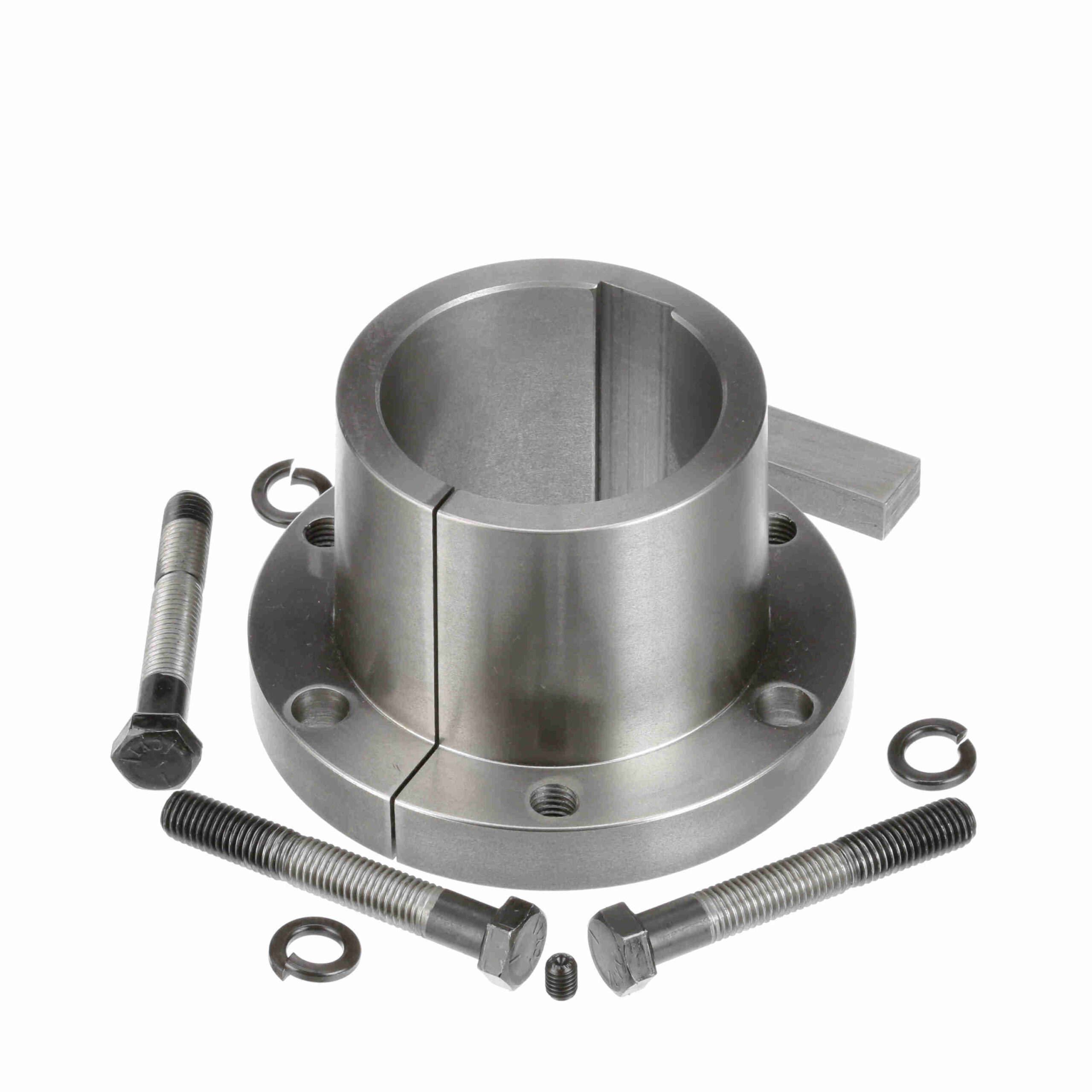

Browning Q-D Bushing – Inch Bore Type – J 3 15/16
$821.39
Out of stock
Out of stock
| Compatible Bore Size [Max] (in): | 3.9375 in | Wrench Torque (ft.-lbs.): | 135 |
|---|---|---|---|
| Bushing Type: | J | Product Type: | Q-D Bushing |
| Cap Screws (No.): | 3 | Cap Screws (Bolt Circle): | 6.25 |
| Outside Diameter (in): | 7.25 in | Total Length (in): | 4.51 in |
| Torque Capacity (in-lb): | 45, 000 | Model Name: | QD-J_Bushing_Master |
| Keyway: | 1 x 1/2 | Mounting Type: | Conventional |
| Bore Type: | Inch | Length Through Bore (in): | 4.51 in |
| Cap Screws (Size): | 5/8-11 x 4 1/2 | Bore Size (in): | 3.9375 in |
| Material: | Gray Iron - G2992 | Barrel Diameter: | 5.1484 in |
| Barrel Length: | 3.51 in | Flange Thickness: | 1 in |
| UPC: | 662289410729 | Weight: | 16.50 LB |
| Packaged Length: | 8.4 Inches | Packaged Width: | 8.5 Inches |
| Packaged Height: | 5.1 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
