- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
J 2 7/8

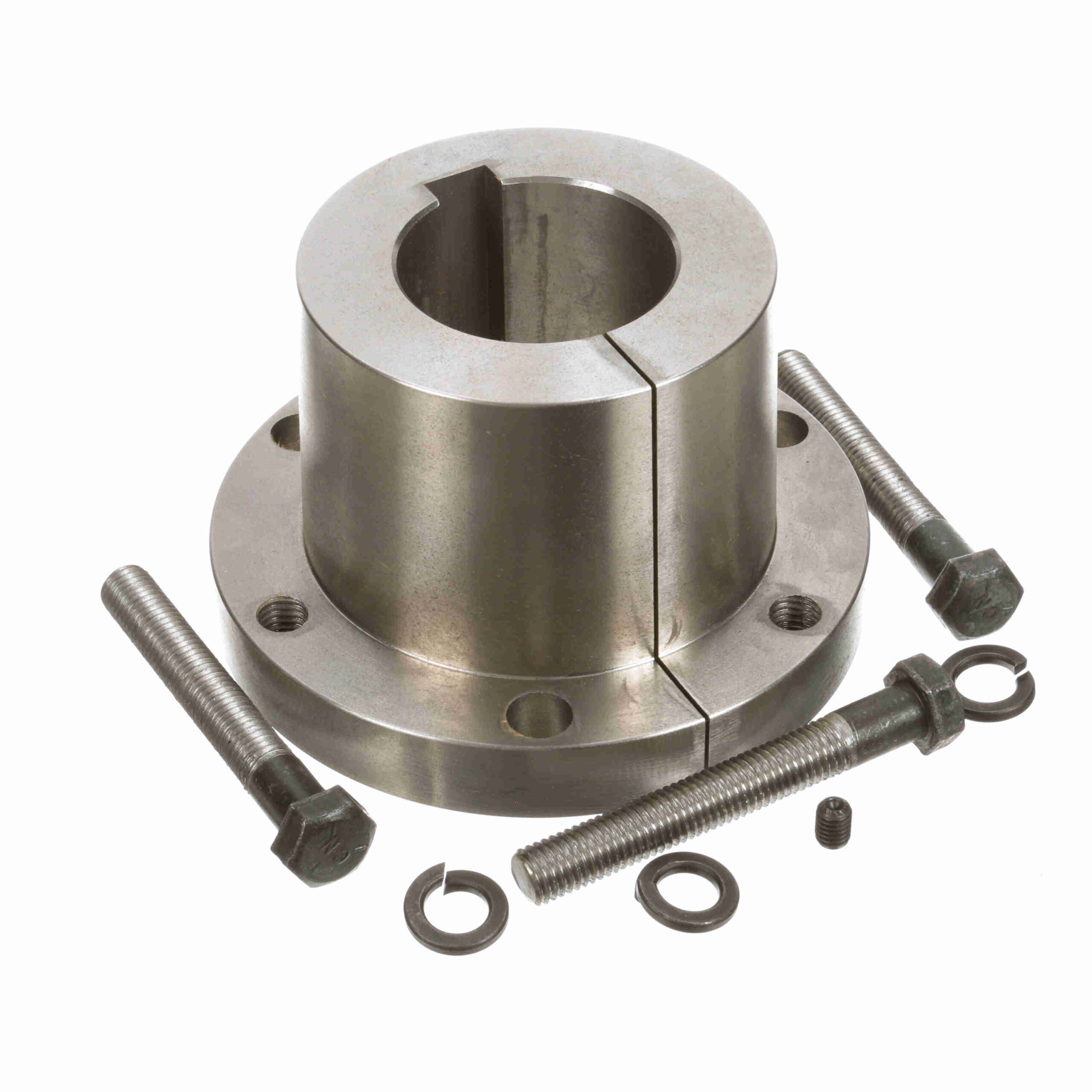

Browning Q-D Bushing – Inch Bore Type – J 2 7/8
Out of stock
| Wrench Torque (ft.-lbs.): | 135 | Bore Type: | Inch |
|---|---|---|---|
| Cap Screws (No.): | 3 | Product Type: | Q-D Bushing |
| Total Length (in): | 4.51 in | Cap Screws (Bolt Circle): | 6.25 |
| Compatible Bore Size [Max] (in): | 2.875 in | Outside Diameter (in): | 7.25 in |
| Torque Capacity (in-lb): | 45, 000 | Cap Screws (Size): | 5/8-11 x 4 1/2 |
| Bushing Type: | J | Model Name: | QD-J_Bushing_Master |
| Keyway: | 3/4 x 3/8 | Mounting Type: | Conventional |
| Length Through Bore (in): | 4.51 in | Bore Size (in): | 2.875 in |
| Material: | Gray Iron - G2983 | Barrel Length: | 3.51 in |
| Barrel Diameter: | 5.1484 in | Flange Thickness: | 1 in |
| UPC: | 662289400591 | Weight: | 22.06 LB |
| Packaged Length: | 8.7 Inches | Packaged Width: | 8.4 Inches |
| Packaged Height: | 5 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
