- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
J 2 15/16

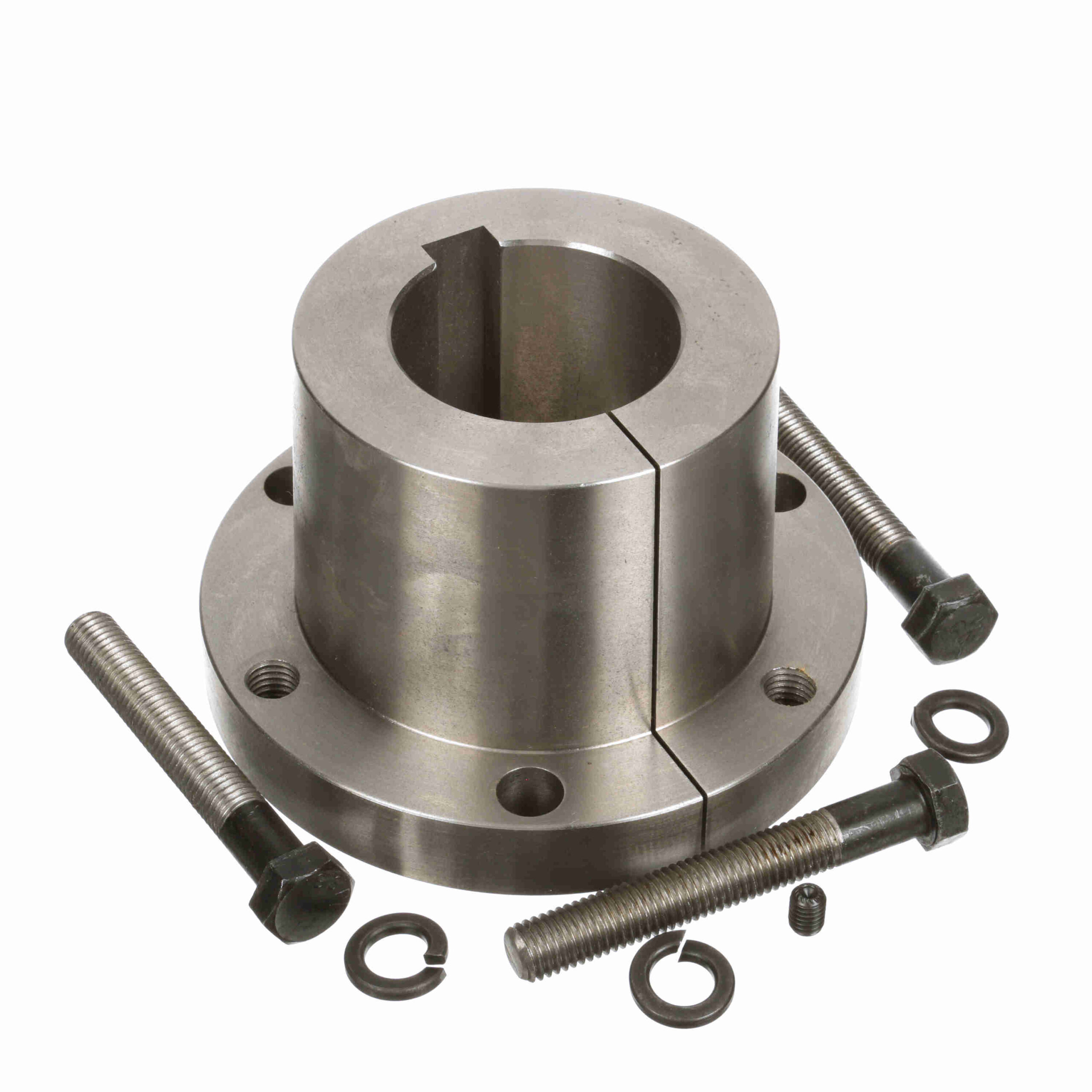

Browning Q-D Bushing – Inch Bore Type – J 2 15/16
$837.19
Out of stock
Out of stock
| Product Type: | Q-D Bushing | Outside Diameter (in): | 7.25 in |
|---|---|---|---|
| Cap Screws (Bolt Circle): | 6.25 | Torque Capacity (in-lb): | 45, 000 |
| Total Length (in): | 4.51 in | Compatible Bore Size [Max] (in): | 2.9375 in |
| Mounting Type: | Conventional | Bushing Type: | J |
| Cap Screws (Size): | 5/8-11 x 4 1/2 | Cap Screws (No.): | 3 |
| Keyway: | 3/4 x 3/8 | Model Name: | QD-J_Bushing_Master |
| Length Through Bore (in): | 4.51 in | Wrench Torque (ft.-lbs.): | 135 |
| Bore Type: | Inch | Bore Size (in): | 2.9375 in |
| Barrel Diameter: | 5.1484 in | Barrel Length: | 3.51 in |
| Flange Thickness: | 1 in | Material: | Gray Iron - G2976 |
| UPC: | 662289350612 | Weight: | 21.80 LB |
| Packaged Length: | 8.7 Inches | Packaged Width: | 8.4 Inches |
| Packaged Height: | 5 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
