- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H80Q22

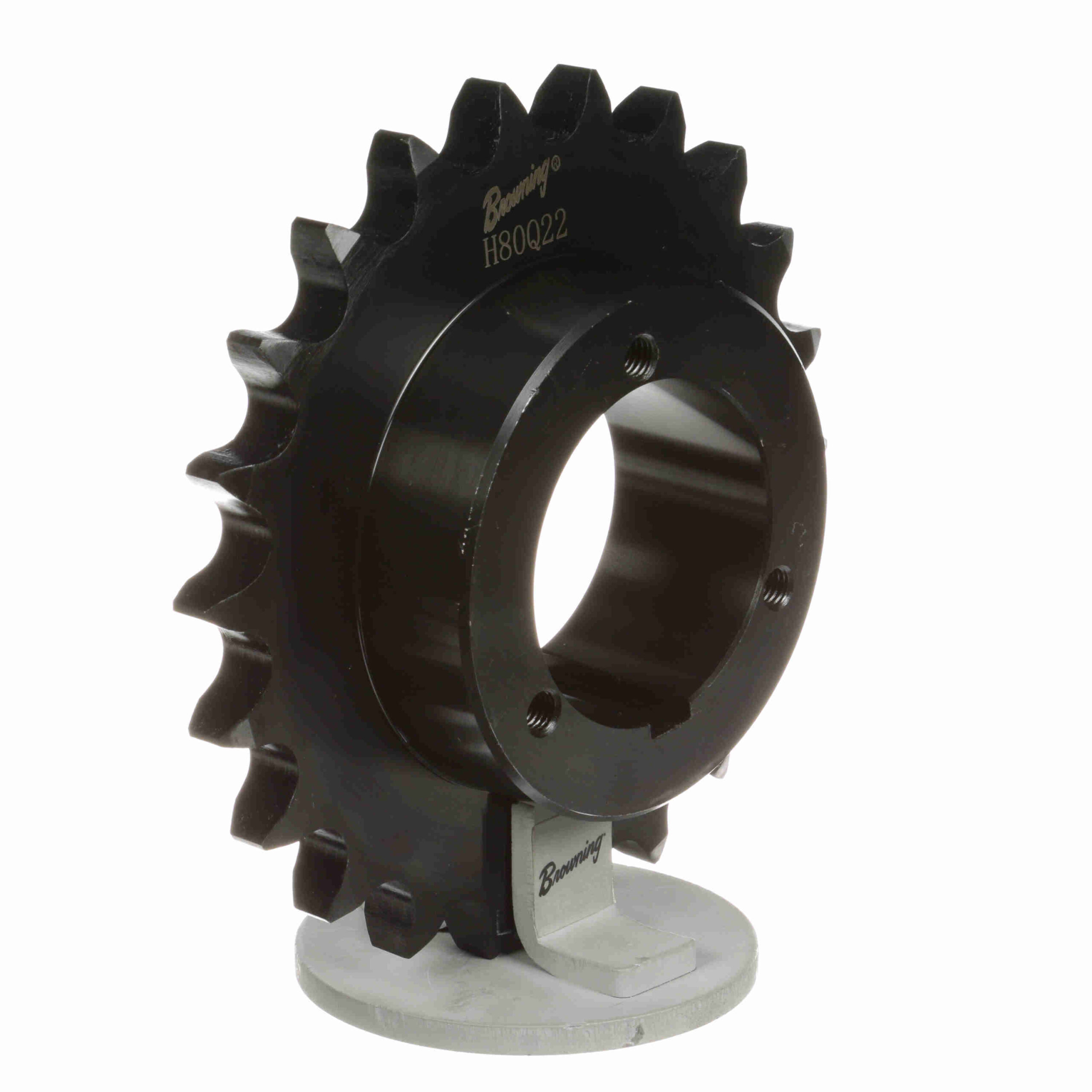

Browning Steel Bushed Bore Roller Chain Sprocket – H80Q22
$340.30
Out of stock
Out of stock
| Bore (Min) (in): | 0.75 in | Chain Used: | No. 80, 1 in. Pitch ANSI Chain |
|---|---|---|---|
| Pitch Diameter (in): | 7.027 in | Material: | Steel, Hardened Teeth |
| Bore (Max) (in): | 2.6875 in | Chain Pitch (in): | 1 in |
| Product Type: | Bushed Roller Chain Sprocket | Bushing Used: | Split Taper |
| Number of teeth: | 22 | Overall Length (in): | 2.828125 in |
| Bore Type: | Bushed Bore | Outside Diameter (in): | 7.555 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Minimum Bore (in): | 0.75 | Maximum Bore (in): | 2.6875 |
| Pitch Type: | Single | Width Across Tooth Sets: | 0.575 |
| Number of Hubs: | 1 | UPC: | 662289236275 |
| Weight: | 8.13 LB | Packaged Length: | 8.90 Inches |
| Packaged Width: | 8.70 Inches | Packaged Height: | 2.10 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
