- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H60P28

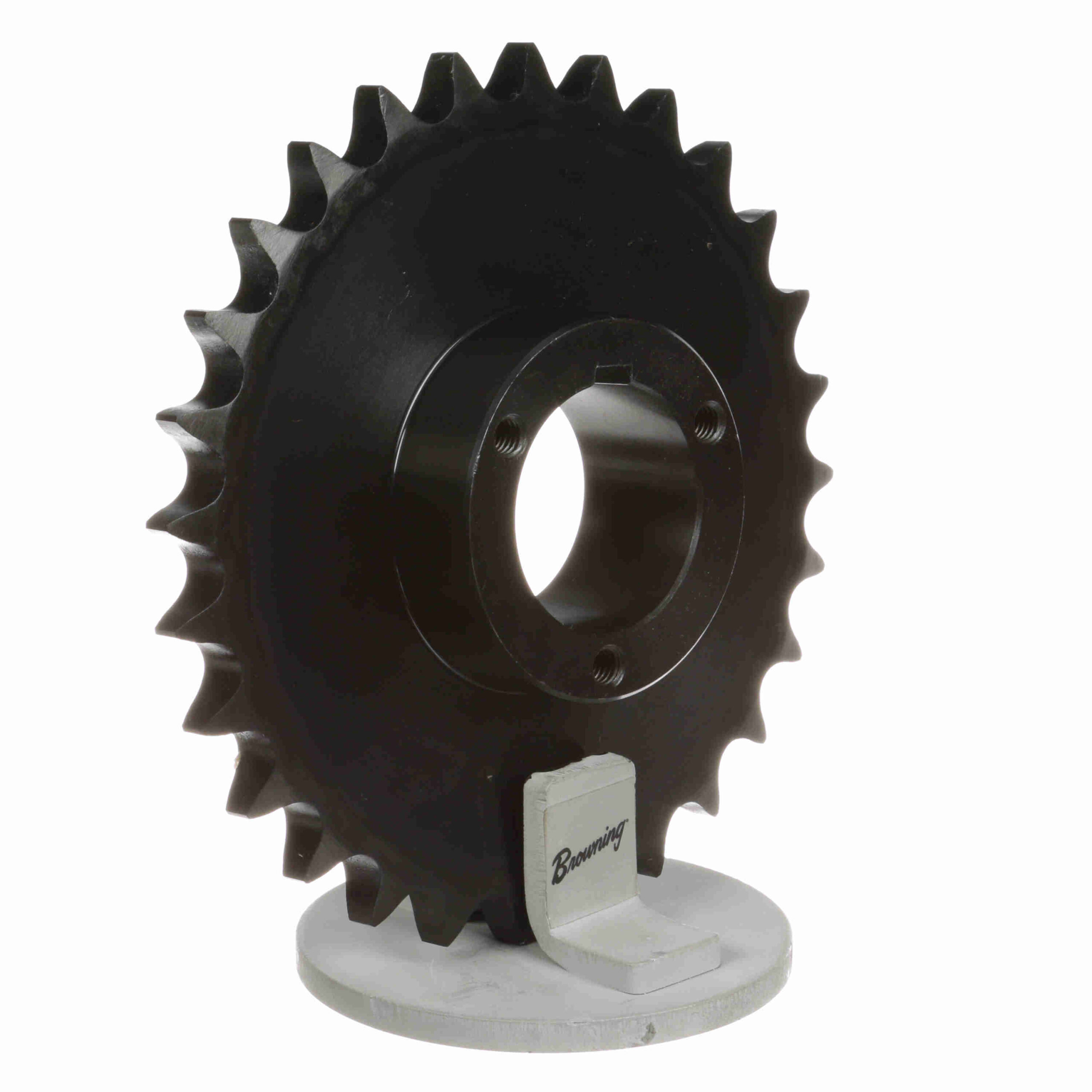

Browning Steel Bushed Bore Roller Chain Sprocket – H60P28
$330.73
Availability: 2 in stock
Availability: 2 in stock
| Bore (Max) (in): | 1.75 in | Material: | Steel, Hardened Teeth |
|---|---|---|---|
| Bushing Used: | Split Taper | Product Type: | Bushed Roller Chain Sprocket |
| Number of teeth: | 28 | Chain Pitch (in): | 0.75 in |
| Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain | Pitch Diameter (in): | 6.699 in |
| Bore (Min) (in): | 0.5 in | Bore Type: | Bushed Bore |
| Outside Diameter (in): | 7.106 in | Overall Length (in): | 2.140625 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 3 in |
| Maximum Bore (in): | 1.75 | Minimum Bore (in): | 0.5 |
| Number of Hubs: | 1 | Width Across Tooth Sets: | 0.459 |
| Pitch Type: | Single | UPC: | 662289125968 |
| Weight: | 5.03 LB | Packaged Length: | 8.50 Inches |
| Packaged Width: | 8.20 Inches | Packaged Height: | 1.50 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
