- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H60H20

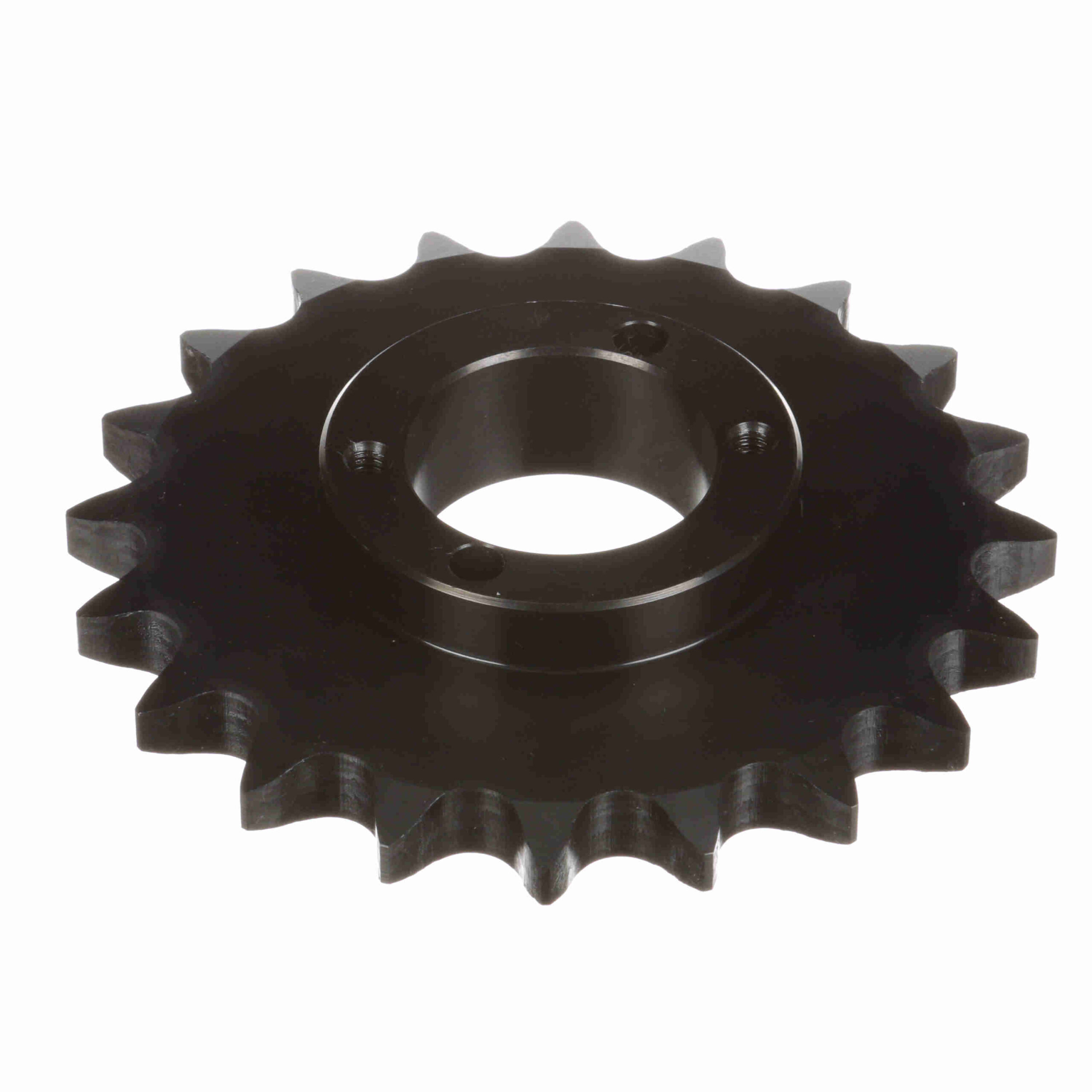

Browning Steel Bushed Bore Roller Chain Sprocket – H60H20
$257.64
Out of stock
Out of stock
| Pitch Diameter (in): | 4.794 in | Number of teeth: | 20 |
|---|---|---|---|
| Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain | Product Type: | Bushed Roller Chain Sprocket |
| Bushing Used: | Split Taper | Chain Pitch (in): | 0.75 in |
| Material: | Steel, Hardened Teeth | Bore (Max) (in): | 1.5 in |
| Bore (Min) (in): | 0.375 in | Bore Type: | Bushed Bore |
| Outside Diameter (in): | 5.185 in | Overall Length (in): | 1.46875 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 2.494 in |
| Minimum Bore (in): | 0.375 | Maximum Bore (in): | 1.5 |
| Pitch Type: | Single | Width Across Tooth Sets: | 0.459 |
| Number of Hubs: | 1 | UPC: | 662289175758 |
| Weight: | 2.30 LB | Packaged Length: | 6.40 Inches |
| Packaged Width: | 6.20 Inches | Packaged Height: | 1.40 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
