- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H60H12

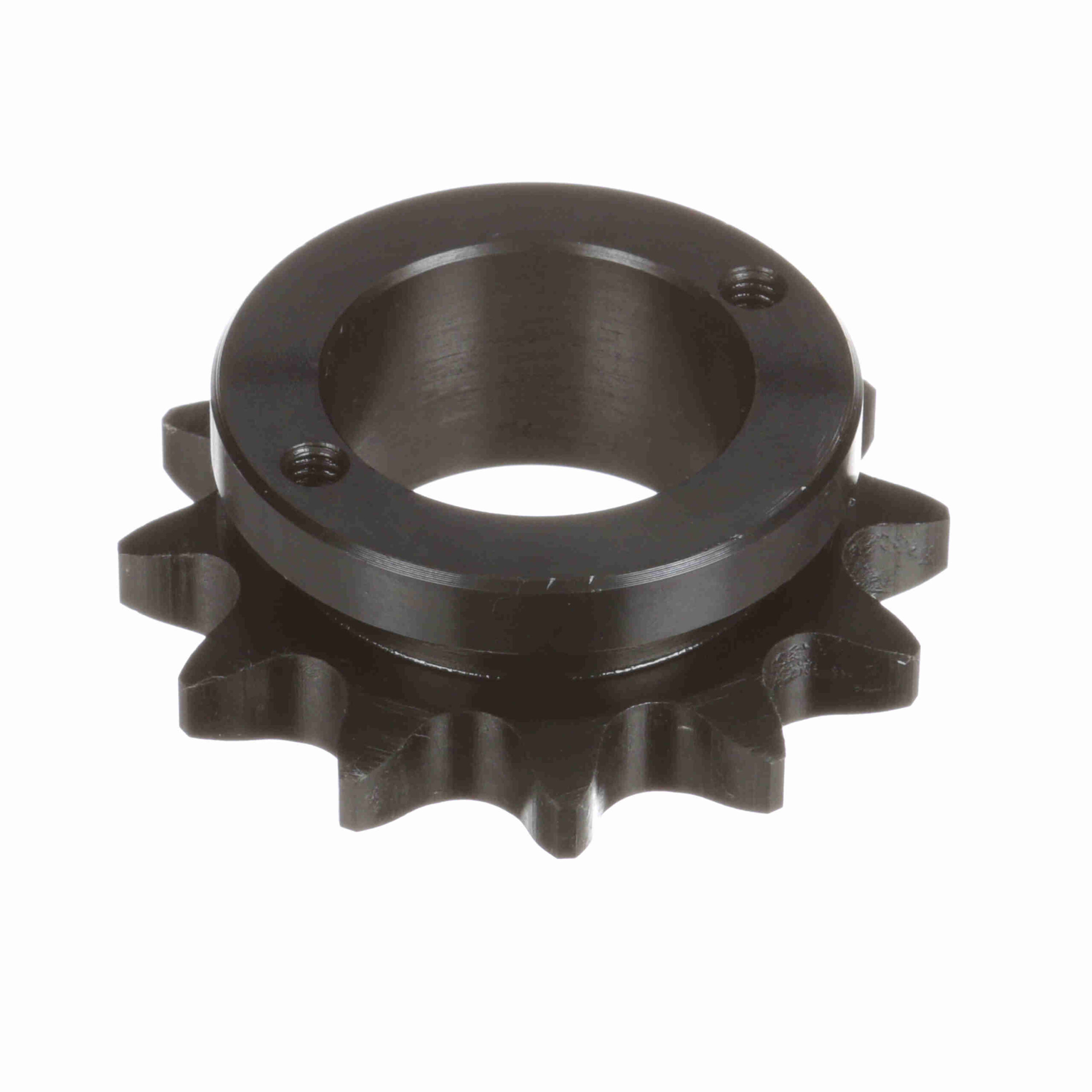

Browning Steel Bushed Bore Roller Chain Sprocket – H60H12
$120.84
Out of stock
Out of stock
| Chain Pitch (in): | 0.75 in | Bore (Min) (in): | 0.375 in |
|---|---|---|---|
| Material: | Steel, Hardened Teeth | Bushing Used: | Split Taper |
| Pitch Diameter (in): | 2.898 in | Product Type: | Bushed Roller Chain Sprocket |
| Bore (Max) (in): | 1.5 in | Number of teeth: | 12 |
| Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain | Overall Length (in): | 1.75 in |
| Outside Diameter (in): | 3.249 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 2.494 in |
| Maximum Bore (in): | 1.5 | Minimum Bore (in): | 0.375 |
| Width Across Tooth Sets: | 0.459 | Pitch Type: | Single |
| Number of Hubs: | 1 | UPC: | 662289165612 |
| Weight: | 0.91 LB | Packaged Length: | 3.50 Inches |
| Packaged Width: | 3.50 Inches | Packaged Height: | 1.40 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
